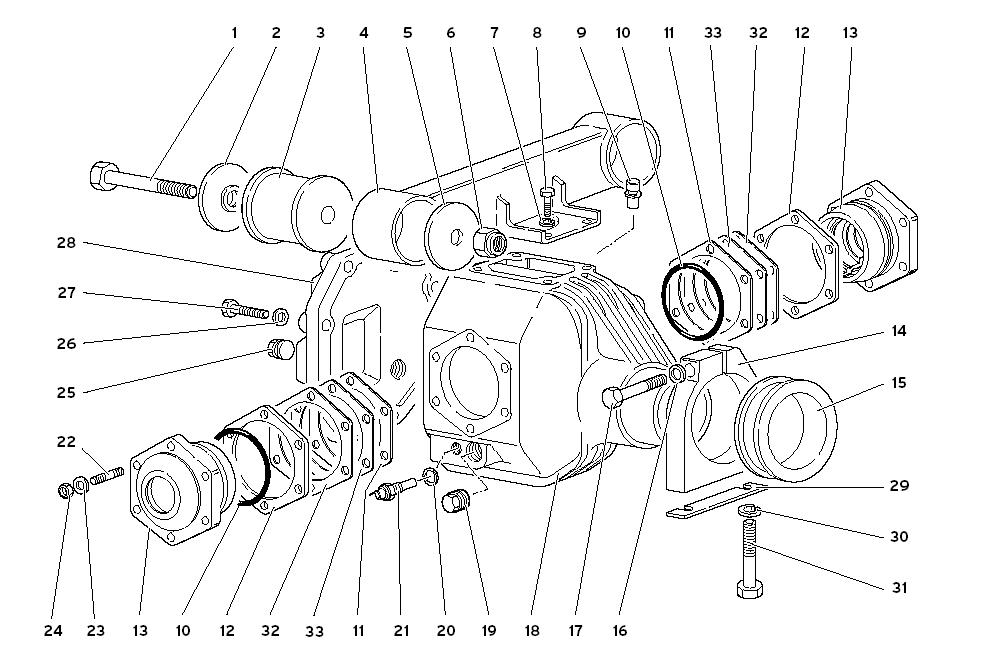

FRONT DIFFERENTIAL CASE

Go to Split View

FRONT DIFFERENTIAL CASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8101434 *Qty: 2 SCREW (VITE) $2.58
Location: 2 Prev | Next Part: 4134280 *Qty: 2 WASHER (RONDELLA) $45.36
Location: 3 Prev | Next Part: 8921412 *Qty: 2 SILENTBLOC (SILENTBLOC) Call
Location: 4 Prev | Next Part: 2326142 *Qty: 1 SUPPORT (SUPPORTO) $214.77
Location: 5 Prev | Next Part: 8401415 *Qty: 2 WASHER (RONDELLA) $13.34
Location: 6 Prev | Next Part: 8201416 *Qty: 2 NUT (DADO) $1.60
Location: 7 Prev | Next Part: 8410806 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 8 Prev | Next Part: 8100826 *Qty: 4 SCREW (VITE) $0.90
Location: 9 Prev | Next Part: 2325257 *Qty: 1 VENT PIPE (SFIATO) Call
Location: 10 Prev | Next Part: 8608600 *Qty: 2 SEAL (ANELLO TENUTA) Call
Location: 11 Prev | Next Part: 2336158 *Qty: 0 SHIM (SPESSORE DI REGISTRO) Call
Location: 11 Prev | Next Part: 2334027 *Qty: 0 SHIM (SPESSORE DI REGISTRO) Call
Location: 12 Prev | Next Part: 2334026 *Qty: 2 SHIM (SPESSORE DI REGISTRO) Call
Location: 13 Prev | Next Part: 2334044 *Qty: 2 FLANGE (FLANGIA) $206.90
Location: 14 Prev | Next Part: 2325440 *Qty: 1 SILENTBLOC (SILENTBLOC) $52.74
Location: 15 Prev | Next Part: 2325441 *Qty: 1 CLAMP (STAFFA-COLLARE) $254.73
Location: 16 Prev | Next Part: 8411002 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 17 Prev | Next Part: 8101018 *Qty: 1 SCREW (VITE) $0.90
Location: 18 Prev | Next Part: 2325400 *Qty: 1 CASE (SCATOLA DIFFER.) $3,382.66
Location: 19 Prev | Next Part: 8932203 *Qty: 1 MAGNETIC PLUG (TAPPO MAGNETICO) Call
Location: 20 Prev | Next Part: 8401425 *Qty: 1 WASHER (RONDELLA) Call
Location: 21 Prev | Next Part: 6033681 *Qty: 1 TEMPERATURE SENS. (SENSORE) Call
Location: 22 Prev | Next Part: 8300801 *Qty: 12 STUD (PRIGIONIERO) $6.24
Location: 23 Prev | Next Part: 8410810 *Qty: 12 WASHER (RONDELLA) $0.90
Location: 24 Prev | Next Part: 8200801 *Qty: 12 NUT (DADO) $0.90
Location: 25 Prev | Next Part: 8932203 *Qty: 1 PLUG (TAPPO) Call
Location: 26 Prev | Next Part: 8410810 *Qty: 8 WASHER (RONDELLA) $0.90
Location: 27 Prev | Next Part: 8100821 *Qty: 8 SCREW (VITE) $1.20
Location: 28 Prev | Next Part: 2325401 *Qty: 1 COVER (COPERCHIO SCATOLA) $228.43
Location: 29 Prev | Next Part: 4134398 *Qty: 0 SHIM (SPESSORE DI REGISTRO 2 MM) $10.06
Location: 29 Prev | Next Part: 4134397 *Qty: 0 SHIM (SPESSORE DI REGISTRO 1-5 MM) $10.06
Location: 30 Prev | Next Part: 8411005 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 31 Prev | Next Part: 8101031 *Qty: 2 SCREW (VITE) $0.90
Location: 32 Prev | Next Part: 23002122 *Qty: 0 SHIM (SPESSORE DI REGISTRO) Call
Location: 33 Prev | Next Part: 23002142 *Qty: 0 SHIM (SPESSORE DI REGISTRO) Call

* Quantity shown indicates the number of pieces used in the diagram.
