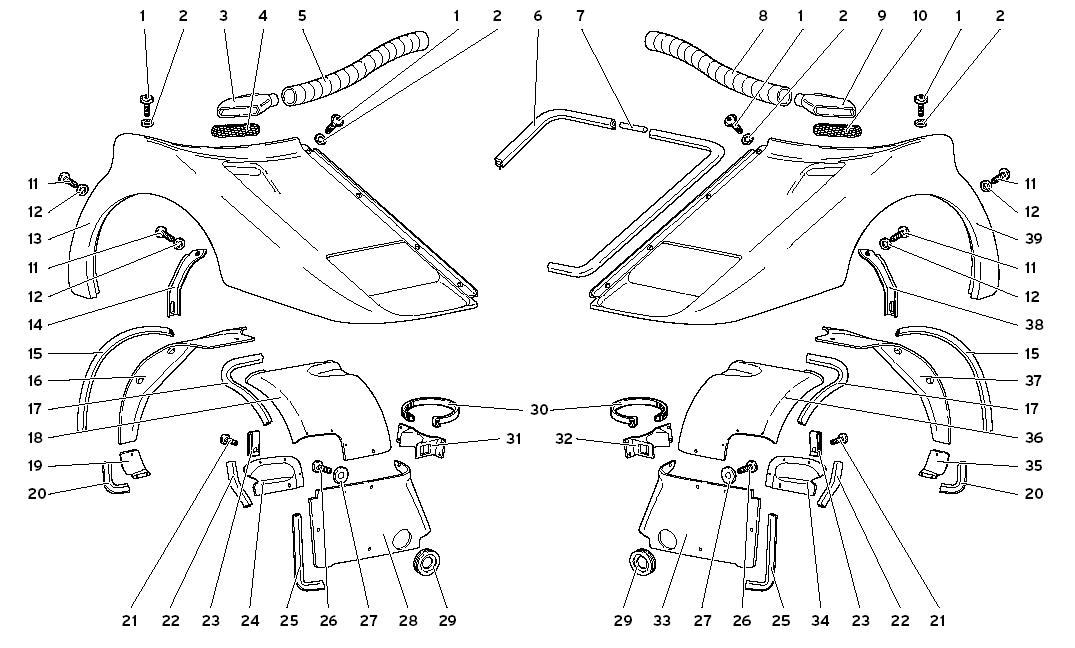

FRONT COQUE ELEMENTS

Go to Split View

FRONT COQUE ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8700692 *Qty: 14 SCREW (VITE) $0.90
Location: 2 Prev | Next Part: 8400629 *Qty: 14 WASHER (RONDELLA) $1.36
Location: 3 Prev | Next Part: 9453002 *Qty: 1 RIGHT AIR INTAKE (PRESA DARIA DX) $452.06
Location: 4 Prev | Next Part: 9430122 *Qty: 1 RIGHT NET (RETE DX) $100.12
Location: 5 Prev | Next Part: 9453129 *Qty: 1 RIGHT PIPE (TUBO DX) $264.41
Location: 6 Prev | Next Part: 9490111 *Qty: 1 GASKET (GUARNIZIONE) $34.26
Location: 7 Prev | Next Part: 9490112 *Qty: 1 JOINING SLEEVE (ELEMENTO COLLEGAMENTO) $22.28
Location: 8 Prev | Next Part: 9453130 *Qty: 1 LEFT PIPE (TUBO SX) $287.29
Location: 9 Prev | Next Part: 9453003 *Qty: 1 LEFT AIR INTAKE (PRESA DARIA SX) $920.54
Location: 10 Prev | Next Part: 9430123 *Qty: 1 LEFT NET (RETE SX) $97.74
Location: 11 Prev | Next Part: 8100601 *Qty: 10 SCREW (VITE) $0.90
Location: 12 Prev | Next Part: 8400606 *Qty: 10 WASHER (RONDELLA) $0.90
Location: 13 Prev | Next Part: 66002236 *Qty: 1 R. FR.MUDGU./FEN. (96 PARAFANGO ANT. DX) $6,589.30
Location: 13 Prev | Next Part: 66002236 *Qty: 1 R. FR.MUDGU./FEN. (71 PARAFANGO ANT. DX) $6,589.30
Location: 13 Prev | Next Part: 66002230 *Qty: 1 R. FR.MUDGU./FEN. (PARAFANGO ANT. DX) $6,589.30
Location: 14 Prev | Next Part: 9410109 *Qty: 1 RIGHT BRACKET (STAFFA DX) $155.64
Location: 15 Prev | Next Part: 9411410 *Qty: 2 GASKET (GUARNIZIONE) $86.06
Location: 16 Prev | Next Part: 9411402 *Qty: 1 FR. WHEELBOX (PASSARUOTA) $339.45
Location: 17 Prev | Next Part: 68003623 *Qty: 2 GASKET (GUARNIZIONE) $22.47
Location: 18 Prev | Next Part: 68002279 *Qty: 1 FR. WHEELBOX (PASSARUOTA ANT. DX SUP.) $617.89
Location: 19 Prev | Next Part: 9411425 *Qty: 1 RIGHT PANEL (PANNELLO DX) $86.06
Location: 20 Prev | Next Part: 9411427 *Qty: 2 GASKET (GUARNIZIONE) $58.43
Location: 21 Prev | Next Part: 8700454 *Qty: 6 SCREW (VITE) $2.73
Location: 22 Prev | Next Part: 68003622 *Qty: 2 GASKET (GUARNIZIONE) $9.21
Location: 23 Prev | Next Part: 8220507 *Qty: 8 CLIP (MOLLETTA) $0.90
Location: 24 Prev | Next Part: 68002281 *Qty: 1 RIGHT LID INSPECTIO (SPORTELLO ISPEZIONE DX) $196.52
Location: 25 Prev | Next Part: 9411408 *Qty: 2 GASKET (GUARNIZIONE) $15.73
Location: 26 Prev | Next Part: 8700454 *Qty: 16 SCREW (VITE) $2.73
Location: 27 Prev | Next Part: 8400623 *Qty: 18 WASHER (RONDELLA) $0.90
Location: 28 Prev | Next Part: 68002284 *Qty: 1 RIGHT FR. WHEELBOX (PASSARUOTA ANT. DX) $650.05
Location: 29 Prev | Next Part: 9411418 *Qty: 2 GASKET (GUARNIZIONE) $27.85
Location: 30 Prev | Next Part: 8830306 *Qty: 2 STRAP (FASCETTA) $3.07
Location: 31 Prev | Next Part: 9411421 *Qty: 1 RIGHT RETAINER (CAVALLOTTO DX) Call
Location: 32 Prev | Next Part: 9411422 *Qty: 1 LEFT RETAINER (CAVALLOTTO SX) Call
Location: 33 Prev | Next Part: 68002285 *Qty: 1 LEFT FR. WHEELBOX (PASSARUOTA ANT. SX) $247.73
Location: 34 Prev | Next Part: 68002282 *Qty: 1 LEFT LID INSPECTION (SPORTELLO ISPEZIONE SX) $54.90
Location: 35 Prev | Next Part: 9411426 *Qty: 1 LEFT PANEL (PANNELLO SX) $66.62
Location: 36 Prev | Next Part: 68002280 *Qty: 1 FR. WHEELBOX (PASSARUOTA ANT. SX SUP.) $698.13
Location: 37 Prev | Next Part: 9411405 *Qty: 1 FR. WHEELBOX (PASSARUOTA) $867.42
Location: 38 Prev | Next Part: 9410110 *Qty: 1 LEFT BRACKET (STAFFA SX) $76.47
Location: 39 Prev | Next Part: 66002238 *Qty: 1 LEFT FR.MUDGU./FEN (71 PARAFANGO ANT. SX) $6,589.30
Location: 39 Prev | Next Part: 66002232 *Qty: 1 LEFT FR.MUDGU./FEN (PARAFANGO ANT. SX) $6,589.30
Location: 39 Prev | Next Part: 66002238 *Qty: 1 LEFT FR.MUDGU./FEN (96 PARAFANGO ANT. SX) $6,589.30

* Quantity shown indicates the number of pieces used in the diagram.
