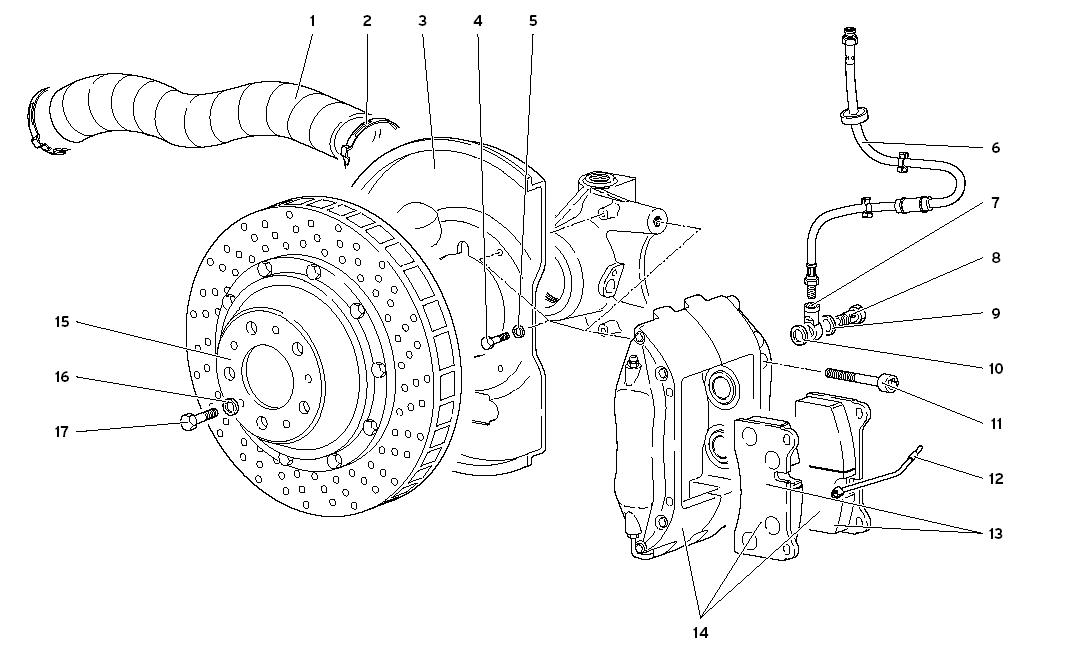

FRONT BRAKES

Go to Split View

FRONT BRAKES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 9453133 *Qty: 2 FLEX. HOSE (TUBO FLESSIBILE) $145.21
Location: 2 Prev | Next Part: 8837501 *Qty: 4 STRAP (FASCETTA) $6.03
Location: 3 Prev | Next Part: 31001183 *Qty: 1 RIGHT CONVEYOR (CONVOGLIATORE DX) $408.64
Location: 3 Prev | Next Part: 31001180 *Qty: 1 LEFT CONVEYOR (CONVOGLIATORE SX) $408.64
Location: 4 Prev | Next Part: 8100504 *Qty: 6 SCREW (VITE) $0.90
Location: 5 Prev | Next Part: 8410503 *Qty: 6 WASHER (RONDELLA) $0.90
Location: 6 Prev | Next Part: 3229882 *Qty: 2 FLEX. HOSE (TUBO FLESSIBILE) $167.29
Location: 7 Prev | Next Part: 31003992 *Qty: 2 CONNECTION (RACCORDO) $48.73
Location: 8 Prev | Next Part: 31003991 *Qty: 2 SCREW (VITE FORATA) Call
Location: 9 Prev | Next Part: 8401022 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 10 Prev | Next Part: 8401022 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 11 Prev | Next Part: 8701224 *Qty: 4 SCREW (VITE) $15.98
Location: 12 Prev | Next Part: 3135643 *Qty: 2 ELECT CABLE (CAVO ELETTRICO) $11.30
Location: 13 Prev | Next Part: 32000561 *Qty: 1 BRAKE PADS KIT (KIT PASTIGLIE FRENO) $1,164.68
Location: 14 Prev | Next Part: 31001456 *Qty: 1 LEFT BRAKE CALIPER (PINZA FRENI SX) $1,044.54
Location: 14 Prev | Next Part: 31001457 *Qty: 1 RIGHT BRAKE CALIP. (PINZA FRENI DX) $1,044.54
Location: 15 Prev | Next Part: 31001463 *Qty: 1 RIGHT BRAKE DISC (DISCO FRENO DX) Call
Location: 15 Prev | Next Part: 31001462 *Qty: 1 LEFT BRAKE DISC (DISCO FRENO SX) Call
Location: 16 Prev | Next Part: 8410810 *Qty: 6 WASHER (RONDELLA) $0.90
Location: 17 Prev | Next Part: 8100826 *Qty: 6 SCREW (VITE) $0.90

* Quantity shown indicates the number of pieces used in the diagram.
