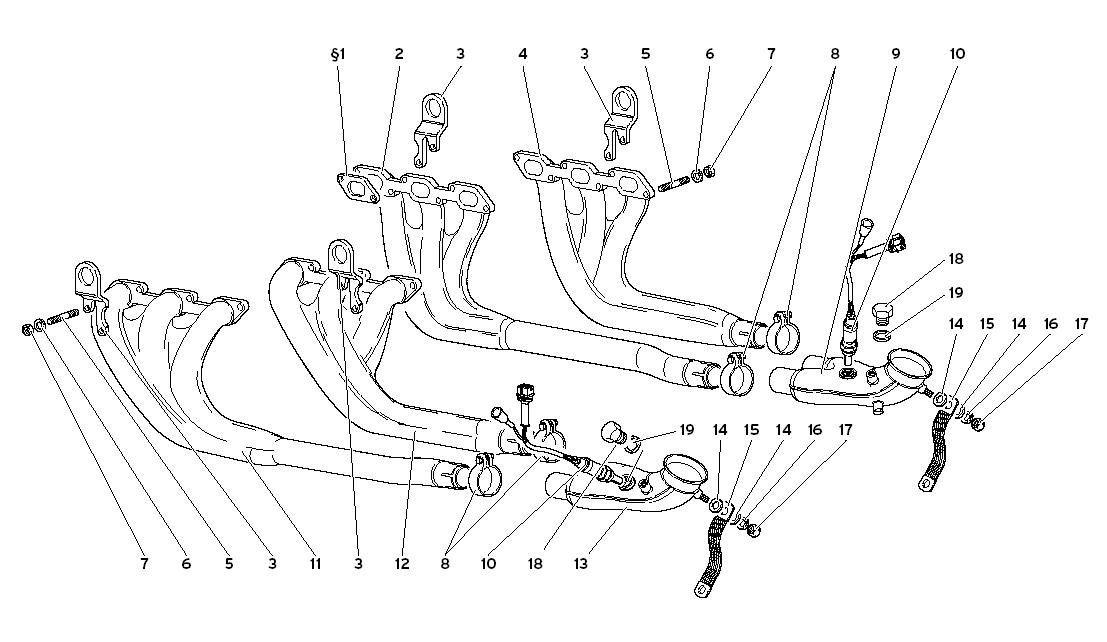

EXHAUST SYSTEM

Go to Split View

EXHAUST SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: *Qty: 0 ALSO INCLUDED IN THE ENGINE GASKETS KIT Call
Location: 1 Prev | Next Part: 1121245 *Qty: 12 GASKET (GUARNIZIONE) Call
Location: 2 Prev | Next Part: 4427530 *Qty: 1 FRONT EXHAUST MAN (COLLETTORE ANT. DX) $963.38
Location: 3 Prev | Next Part: 4432438 *Qty: 4 HOOK (GANCIO) $36.71
Location: 4 Prev | Next Part: 4427529 *Qty: 1 REAR EXHAUST MAN. (COLLETTORE POST. DX) $963.38
Location: 5 Prev | Next Part: 8300809 *Qty: 24 STUD (PRIGIONIERO) $8.18
Location: 6 Prev | Next Part: 8410817 *Qty: 24 WASHER (RONDELLA) $4.47
Location: 7 Prev | Next Part: 8240808 *Qty: 24 NUT (DADO) $1.36
Location: 8 Prev | Next Part: 8835002 *Qty: 4 STRAP (FASCETTA) $5.42
Location: 9 Prev | Next Part: 44001238 *Qty: 1 EXHAUST MANIFOLD (COLLETTORE A TRE VIE DX) $608.75
Location: 10 Prev | Next Part: 4429307 *Qty: 2 OXIGEN SENSOR (SENSORE DI OSSIGENO) $333.20
Location: 11 Prev | Next Part: 4427528 *Qty: 1 FRO. L. EXHAUST MAN (COLLETTORE ANT. SX) $963.38
Location: 12 Prev | Next Part: 4427527 *Qty: 1 REAR L EXHAUST MA (COLLETTORE POST. SX) $963.38
Location: 13 Prev | Next Part: 44001236 *Qty: 1 EXHAUST MANIFOLD (COLLETTORE A TRE VIE SX) $608.75
Location: 14 Prev | Next Part: 8400806 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 15 Prev | Next Part: 1604328 *Qty: 2 GROUND CABLE (CAVO MASSA) Call
Location: 16 Prev | Next Part: 8410806 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 17 Prev | Next Part: 8200808 *Qty: 2 NUT (DADO) $0.90
Location: 18 Prev | Next Part: 8931808 *Qty: 2 PLUG (89 TAPPO) $9.96
Location: 18 Prev | Next Part: 8931808 *Qty: 2 PLUG (88 TAPPO) $9.96
Location: 18 Prev | Next Part: 8931808 *Qty: 2 PLUG (80 TAPPO) $9.96
Location: 19 Prev | Next Part: 8401819 *Qty: 2 WASHER (89 RONDELLA) $0.90
Location: 19 Prev | Next Part: 8401819 *Qty: 2 WASHER (88 RONDELLA) $0.90
Location: 19 Prev | Next Part: 8401819 *Qty: 2 WASHER (80 RONDELLA) $0.90

* Quantity shown indicates the number of pieces used in the diagram.
