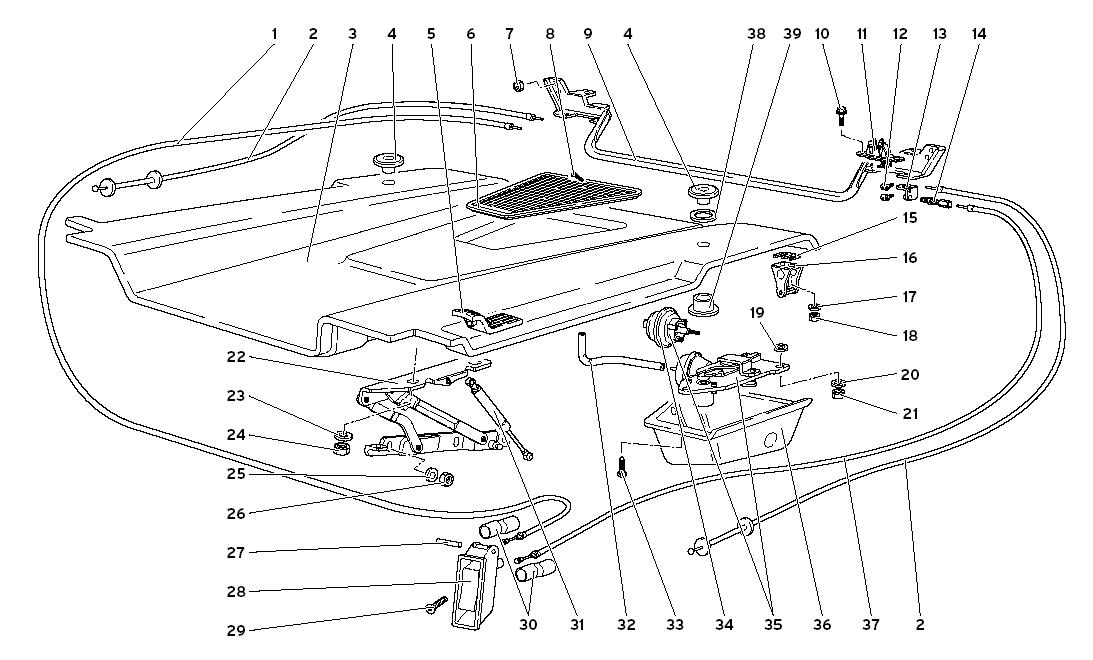

ENGINE HOOD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 9960001 *Qty: 1 RIGHT CABLE (CAVO APERTURA DX) $27.54
Location: 2 Prev | Next Part: 9460003 *Qty: 2 EMERGENCY CABLE (CAVO EMERGENZA) $20.49
Location: 3 Prev | Next Part: 92009720 *Qty: 1 ENGINE BONNET (COFANO MOTORE) $16,512.60
Location: 4 Prev | Next Part: 9960265 *Qty: 2 PLASTIC BUSHING (BOCCOLA DI FINIZIONE SUP) $147.53
Location: 5 Prev | Next Part: 9960500 *Qty: 2 SHIELD (PROTEZIONE) $122.94
Location: 6 Prev | Next Part: 92004332 *Qty: 1 GRILLE (GRIGLIA) Call
Location: 7 Prev | Next Part: 8200614 *Qty: 4 NUT (DADO) $0.90
Location: 8 Prev | Next Part: 8700344 *Qty: 6 SCREW (VITE) $0.90
Location: 9 Prev | Next Part: 4137285 *Qty: 1 SUPPORT (SUPPORTO) $594.40
Location: 10 Prev | Next Part: 8100603 *Qty: 4 SCREW (VITE) $0.90
Location: 11 Prev | Next Part: 9960203 *Qty: 2 LOCK (SERRATURA) $83.33
Location: 12 Prev | Next Part: 9459217 *Qty: 4 CLAMP (MORSETTO) Call
Location: 13 Prev | Next Part: 4137286 *Qty: 2 BRACKET (STAFFETTA) $31.88
Location: 14 Prev | Next Part: 9460213 *Qty: 2 ADJ/SCREW (VITE REGOLAZIONE) Call
Location: 15 Prev | Next Part: 9960251 *Qty: 1 SHIM (SPESSORE DI REGISTRO) $42.87
Location: 16 Prev | Next Part: 9960256 *Qty: 1 RIGHT LOCK STRIKER (RISCONTRO DX) Call
Location: 16 Prev | Next Part: 9960257 *Qty: 1 LEFT LOCK STRIKER (RISCONTRO SX) $273.33
Location: 17 Prev | Next Part: 8400627 *Qty: 4 WASHER (RONDELLA) $22.14
Location: 18 Prev | Next Part: 8200612 *Qty: 4 NUT (DADO) $0.90
Location: 19 Prev | Next Part: 8400627 *Qty: 0 SPACER (DISTANZIALE) $22.14
Location: 20 Prev | Next Part: 8400627 *Qty: 6 WASHER (RONDELLA) $22.14
Location: 21 Prev | Next Part: 8200614 *Qty: 6 NUT (DADO) $0.90
Location: 22 Prev | Next Part: 9960302 *Qty: 1 LEFT HINGE (CERNIERA SX) $167.12
Location: 22 Prev | Next Part: 9960301 *Qty: 1 RIGHT HINGE (CERNIERA DX) $167.12
Location: 23 Prev | Next Part: 8400804 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 24 Prev | Next Part: 8200809 *Qty: 4 NUT (DADO) $1.81
Location: 25 Prev | Next Part: 8400627 *Qty: 6 WASHER (RONDELLA) $22.14
Location: 26 Prev | Next Part: 8200612 *Qty: 6 NUT (DADO) $0.90
Location: 27 Prev | Next Part: 8850304 *Qty: 1 PIN (SPINA) $1.80
Location: 28 Prev | Next Part: 9421008 *Qty: 1 HANDLE (MANIGLIA) Call
Location: 29 Prev | Next Part: 8700539 *Qty: 1 SCREW (VITE) Call
Location: 30 Prev | Next Part: 9421385 *Qty: 2 LINER (GUAINA) Call
Location: 31 Prev | Next Part: 92004386 *Qty: 2 SHOCK ABSORBER (MARTINETTO (ARGENTO)) $202.00
Location: 31 Prev | Next Part: 9960305 *Qty: 2 SHOCK ABSORBER (MARTINETTO (NERO)) Call
Location: 32 Prev | Next Part: 9960262 *Qty: 2 PIPE (TUBO) $39.74
Location: 33 Prev | Next Part: 8700433 *Qty: 8 SCREW (VITE) $0.90
Location: 34 Prev | Next Part: 9960245 *Qty: 2 CONTROL (ATTUATORE) Call
Location: 35 Prev | Next Part: 9960004 *Qty: 1 LEFT LOCK (SERRATURA SX) $1,115.05
Location: 35 Prev | Next Part: 9960003 *Qty: 1 RIGHT LOCK (SERRATURA DX) $1,115.05
Location: 36 Prev | Next Part: 9960261 *Qty: 1 LEFT SHIELD (PROTEZIONE SX) $268.55
Location: 36 Prev | Next Part: 9960260 *Qty: 1 RIGHT SHIELD (PROTEZIONE DX) $268.55
Location: 37 Prev | Next Part: 9960002 *Qty: 1 LEFT CABLE (CAVO APERTURA SX) $100.12
Location: 38 Prev | Next Part: 9960264 *Qty: 2 GASKET (GUARNIZIONE) $2.46
Location: 39 Prev | Next Part: 9960263 *Qty: 2 PLASTIC BUSHING (BOCCOLA DI FINIZIONE INF) $37.26

* Quantity shown indicates the number of pieces used in the diagram.
