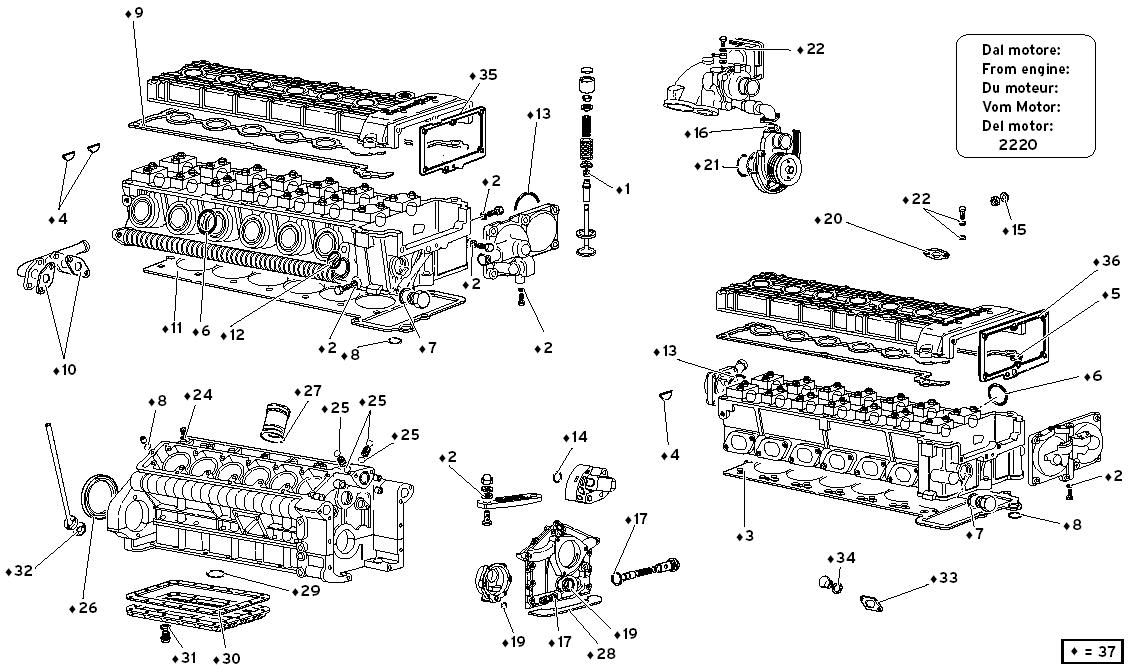

ENGINE GASKETS KIT (FROM ENGINE 2220)

Go to Split View

ENGINE GASKETS KIT (FROM ENGINE 2220)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 25 Prev | Next Part: 8600705 *Qty: 4 SEAL (ANELLO TENUTA) Call
Location: 19 Prev | Next Part: 8601705 *Qty: 1 SEAL (ANELLO TENUTA) $0.90
Location: 24 Prev | Next Part: 8401425 *Qty: 1 WASHER (RONDELLA) Call
Location: 18 Prev | Next Part: 8613702 *Qty: 1 SEAL (ANELLO TENUTA) $58.43
Location: 23 Prev | Next Part: 8601106 *Qty: 2 SEAL (ANELLO TENUTA) Call
Location: 14 Prev | Next Part: 8601501 *Qty: 1 SEAL (ANELLO TENUTA) $5.67
Location: 20 Prev | Next Part: 1831058 *Qty: 1 GASKET (GUARNIZIONE) $4.17
Location: 12 Prev | Next Part: 8603503 *Qty: 2 SEAL (ANELLO TENUTA) $3.57
Location: 17 Prev | Next Part: 8403007 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 10 Prev | Next Part: 1121254 *Qty: 2 GASKET (GUARNIZIONE) $4.86
Location: 9 Prev | Next Part: 11004919 *Qty: 1 GASKET (GUARNIZIONE) Call
Location: 16 Prev | Next Part: 8602803 *Qty: 1 SEAL (ANELLO TENUTA) Call
Location: 8 Prev | Next Part: 8601203 *Qty: 2 SEAL (ANELLO TENUTA) $0.90
Location: 15 Prev | Next Part: 8401008 *Qty: 2 WASHER (RONDELLA) Call
Location: 7 Prev | Next Part: 8402609 *Qty: 2 WASHER (RONDELLA) Call
Location: 13 Prev | Next Part: 8606205 *Qty: 2 SEAL (ANELLO TENUTA) $3.64
Location: 6 Prev | Next Part: 8604703 *Qty: 12 SEAL (ANELLO TENUTA) $8.01
Location: 36 Prev | Next Part: 11003889 *Qty: 1 GASKET (GUARNIZIONE) $19.48
Location: 11 Prev | Next Part: 11000988 *Qty: 1 GASKET (GUARNIZIONE) $728.37
Location: 4 Prev | Next Part: 11003411 *Qty: 3 COVER (COPERCHIO) Call
Location: 35 Prev | Next Part: 11004551 *Qty: 1 GASKET (GUARNIZIONE) $19.48
Location: 5 Prev | Next Part: 11004920 *Qty: 1 GASKET (GUARNIZIONE) Call
Location: 3 Prev | Next Part: 11000987 *Qty: 1 GASKET (GUARNIZIONE) $728.37
Location: 34 Prev | Next Part: 8401819 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 2 Prev | Next Part: 8400609 *Qty: 8 WASHER (RONDELLA) Call
Location: 1 Prev | Next Part: 1220840 *Qty: 48 SEAL (ANELLO TENUTA) Call
Location: 31 Prev | Next Part: 8402202 *Qty: 1 WASHER (RONDELLA) $4.17
Location: 33 Prev | Next Part: 1121245 *Qty: 12 GASKET (GUARNIZIONE) Call
Location: 30 Prev | Next Part: 1826521 *Qty: 1 GASKET (GUARNIZIONE) Call
Location: 32 Prev | Next Part: 1830006 *Qty: 1 GASKET (GUARNIZIONE) $6.19
Location: 28 Prev | Next Part: 1232219 *Qty: 1 GASKET (GUARNIZIONE) $4.45
Location: 29 Prev | Next Part: 8609302 *Qty: 1 SEAL (ANELLO TENUTA) Call
Location: 27 Prev | Next Part: 8608801 *Qty: 12 SEAL (ANELLO TENUTA) Call
Location: 22 Prev | Next Part: 8400818 *Qty: 7 WASHER (RONDELLA) Call
Location: 26 Prev | Next Part: 1829403 *Qty: 1 SEAL (ANELLO TENUTA) Call
Location: 21 Prev | Next Part: 8609901 *Qty: 1 SEAL (ANELLO TENUTA) Call
Location: 37 Prev | Next Part: 11005352 *Qty: 1 KIT (KIT) $2,880.53

* Quantity shown indicates the number of pieces used in the diagram.
