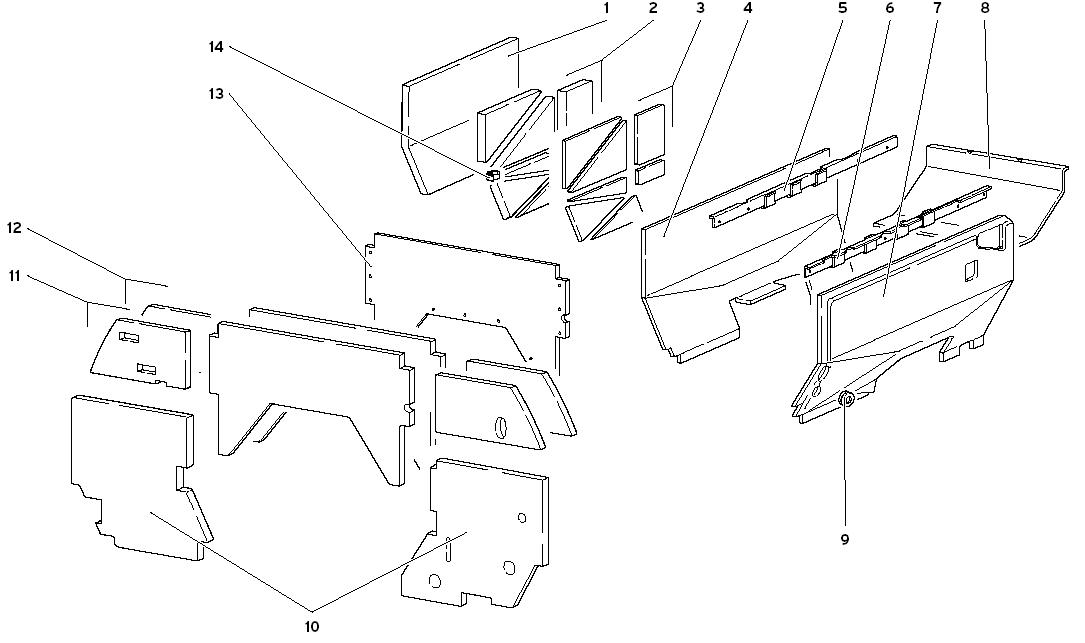

ENGINE COMPARTMENT INSULATING PANELS

Go to Split View

ENGINE COMPARTMENT INSULATING PANELS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 9455229 *Qty: 1 LINING (ISOLAMENTO) $67.81
Location: 2 Prev | Next Part: 310132020 *Qty: 1 LINING KIT (KIT ISOLAMENTO) $104.27
Location: 3 Prev | Next Part: 310132018 *Qty: 1 LINING KIT (KIT ISOLAMENTO) $222.73
Location: 4 Prev | Next Part: 9411633 *Qty: 1 RIGHT LINING (ISOLAMENTO DX) $1,006.82
Location: 5 Prev | Next Part: 9411642 *Qty: 1 RIGHT SUPPORT (SUPPORTO DX) $94.44
Location: 6 Prev | Next Part: 9411643 *Qty: 1 LEFT SUPPORT (SUPPORTO SX) $103.89
Location: 7 Prev | Next Part: 9411634 *Qty: 1 LEFT LINING (ISOLAMENTO SX) $1,006.82
Location: 8 Prev | Next Part: 9411604 *Qty: 1 LINING (ISOLAMENTO) $474.81
Location: 9 Prev | Next Part: 8612804 *Qty: 1 GASKET (GUARNIZIONE) $6.14
Location: 10 Prev | Next Part: 310144001 *Qty: 1 LINING KIT (KIT ISOLAMENTO) $107.16
Location: 11 Prev | Next Part: 310144002 *Qty: 1 LINING KIT (KIT ISOLAMENTO) $70.67
Location: 12 Prev | Next Part: 310144008 *Qty: 1 LINING KIT (KIT ISOLAMENTO) $142.71
Location: 13 Prev | Next Part: 9955406 *Qty: 1 PLATE (LAMIERA CENTRALE) $88.70
Location: 14 Prev | Next Part: 1731994 *Qty: 1 STRAP (FASCETTA) $9.62

* Quantity shown indicates the number of pieces used in the diagram.
