CRANKCASE

Go to Split View

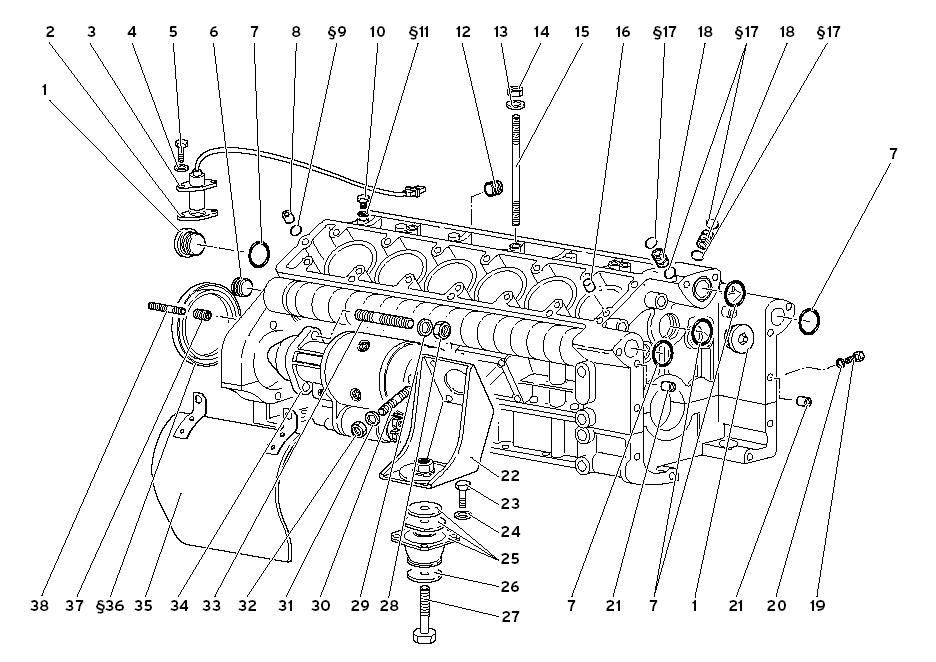

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: *Qty: 0 ALSO INCLUDED IN THE ENGINE GASKETS KIT AND MOTOR COVER GASKETS KIT Call
Location: - Prev | Next Part: *Qty: 0 ALSO INCLUDED IN THE ENGINE GASKETS KIT Call
Location: 1 Prev | Next Part: 1830023 *Qty: 2 PLUG (TAPPO) Call
Location: 2 Prev | Next Part: 1628602 *Qty: 0 SHIM (SPESSORE DI REGISTRO 0-4 MM) Call
Location: 2 Prev | Next Part: 1628601 *Qty: 0 SHIM (SPESSORE DI REGISTRO 0-2 MM) Call
Location: 3 Prev | Next Part: 1625411 *Qty: 1 SENSOR (SENSORE FASE VOLANO) Call
Location: 4 Prev | Next Part: 8410502 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 5 Prev | Next Part: 8100504 *Qty: 2 SCREW (VITE) $0.90
Location: 6 Prev | Next Part: 8933503 *Qty: 2 PLUG (TAPPO) Call
Location: 7 Prev | Next Part: 8603503 *Qty: 5 SEAL (ANELLO TENUTA) $3.57
Location: 8 Prev | Next Part: 1832161 *Qty: 2 DOWEL (GRANO) $11.07
Location: 9 Prev | Next Part: 8601106 *Qty: 2 SEAL (ANELLO TENUTA) Call
Location: 10 Prev | Next Part: 8101402 *Qty: 1 PLUG (TAPPO) $29.13
Location: 11 Prev | Next Part: 8401425 *Qty: 1 WASHER (RONDELLA) Call
Location: 12 Prev | Next Part: 8931209 *Qty: 1 PLUG (TAPPO) Call
Location: 13 Prev | Next Part: 8400801 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 14 Prev | Next Part: 8200809 *Qty: 3 NUT (DADO) $1.81
Location: 15 Prev | Next Part: 8300891 *Qty: 3 STUD (PRIGIONIERO) $14.99
Location: 16 Prev | Next Part: 8850821 *Qty: 2 DOWEL (GRANO) Call
Location: 17 Prev | Next Part: 8600705 *Qty: 4 SEAL (ANELLO TENUTA) Call
Location: 18 Prev | Next Part: 1833995 *Qty: 2 DOWEL (GRANO) $32.91
Location: 19 Prev | Next Part: 8100620 *Qty: 1 SCREW (VITE) $5.67
Location: 20 Prev | Next Part: 8400609 *Qty: 1 WASHER (RONDELLA) Call
Location: 21 Prev | Next Part: 8851304 *Qty: 2 DOWEL (GRANO) $63.65
Location: 22 Prev | Next Part: 1835941 *Qty: 2 SUPPORT (SUPPORTO) $295.96
Location: 23 Prev | Next Part: 8101031 *Qty: 8 SCREW (VITE) $0.90
Location: 24 Prev | Next Part: 8411014 *Qty: 8 WASHER (RONDELLA) $0.90
Location: 25 Prev | Next Part: 1834734 *Qty: 2 ELASTIC SUPPORT (SUPPORTO ELASTICO) $191.25
Location: 26 Prev | Next Part: 1831606 *Qty: 2 WASHER (RONDELLA) $20.03
Location: 27 Prev | Next Part: 4131471 *Qty: 2 SCREW (VITE) $33.98
Location: 28 Prev | Next Part: 1832869 *Qty: 2 NUT (DADO) Call
Location: 29 Prev | Next Part: 8411213 *Qty: 2 WASHER (RONDELLA) $1.87
Location: 30 Prev | Next Part: 8300814 *Qty: 8 STUD (PRIGIONIERO) $6.48
Location: 31 Prev | Next Part: 8410806 *Qty: 8 WASHER (RONDELLA) $0.90
Location: 32 Prev | Next Part: 8200808 *Qty: 8 NUT (DADO) $0.90
Location: 33 Prev | Next Part: 8301249 *Qty: 2 STUD (PRIGIONIERO) $15.17
Location: 34 Prev | Next Part: 1630672 *Qty: 1 STARTER MOTOR (MOTORINO AVVIAMENTO) Call
Location: 35 Prev | Next Part: 1635959 *Qty: 1 SHIELD (PROTEZIONE) $326.27
Location: 36 Prev | Next Part: 1829403 *Qty: 1 SEAL (ANELLO TENUTA) Call
Location: 37 Prev | Next Part: 8210873 *Qty: 2 BUSHING (BOCCOLA) Call
Location: 38 Prev | Next Part: 8300809 *Qty: 2 STUD (PRIGIONIERO) $8.18

* Quantity shown indicates the number of pieces used in the diagram.
