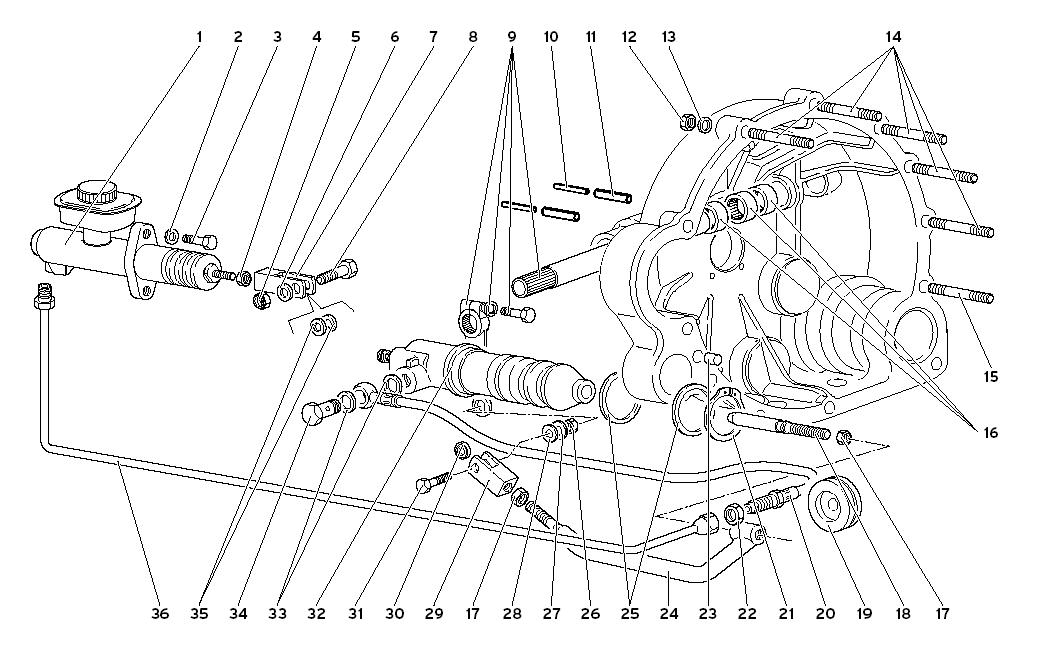

CLUTCH CONTROL LEVERS

Go to Split View

CLUTCH CONTROL LEVERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4219984 *Qty: 1 CLUTCH PUMP (POMPA FRIZIONE) $370.18
Location: 2 Prev | Next Part: 8410806 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 3 Prev | Next Part: 8100830 *Qty: 2 SCREW (VITE) $0.90
Location: 4 Prev | Next Part: 8200811 *Qty: 1 NUT (DADO) $5.67
Location: 5 Prev | Next Part: 8200804 *Qty: 1 NUT (DADO) $0.90
Location: 6 Prev | Next Part: 8400801 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 7 Prev | Next Part: 4219591 *Qty: 1 FORK (FORCELLA) Call
Location: 8 Prev | Next Part: 2129460 *Qty: 1 PIN (PERNO) $30.75
Location: 9 Prev | Next Part: 2134952 *Qty: 1 SHAFT (ALBERO) $593.17
Location: 10 Prev | Next Part: 8900505 *Qty: 2 PIN (SPINA) Call
Location: 11 Prev | Next Part: 8900804 *Qty: 2 PIN (SPINA) $0.90
Location: 12 Prev | Next Part: 8200808 *Qty: 11 NUT (DADO) $0.90
Location: 13 Prev | Next Part: 8410810 *Qty: 11 WASHER (RONDELLA) $0.90
Location: 14 Prev | Next Part: 8300808 *Qty: 5 STUD (PRIGIONIERO) $5.67
Location: 15 Prev | Next Part: 8300809 *Qty: 1 STUD (PRIGIONIERO) $8.18
Location: 16 Prev | Next Part: 8522204 *Qty: 3 BEARING (CUSCINETTO) $20.03
Location: 17 Prev | Next Part: 8201001 *Qty: 2 NUT (DADO) $0.90
Location: 18 Prev | Next Part: 2134687 *Qty: 1 ROD (PUNTALE) $394.60
Location: 19 Prev | Next Part: 8612804 *Qty: 1 RUBBER RING (ANELLO GOMMA) $6.14
Location: 20 Prev | Next Part: 2137394 *Qty: 1 FLEX. HOSE (TUBO FLESSIBILE) $112.67
Location: 21 Prev | Next Part: 8583701 *Qty: 1 RETAINER RING (ANELLO RITEGNO) $0.90
Location: 22 Prev | Next Part: 8201216 *Qty: 1 NUT (DADO) $4.41
Location: 23 Prev | Next Part: 8850806 *Qty: 2 DOWEL (GRANO) Call
Location: 24 Prev | Next Part: 2134956 *Qty: 1 IDLE LEVER (RINVIO A LEVA) $434.08
Location: 25 Prev | Next Part: 2129128 *Qty: 2 SPACER (DISTANZIALE) $46.94
Location: 26 Prev | Next Part: 8200801 *Qty: 1 NUT (DADO) $0.90
Location: 27 Prev | Next Part: 8410806 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 28 Prev | Next Part: 8400816 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 29 Prev | Next Part: 2134957 *Qty: 1 FORK (FORCELLA) $145.02
Location: 30 Prev | Next Part: 4225225 *Qty: 1 COUPLING (TESTA A SNODO) Call
Location: 31 Prev | Next Part: 8100841 *Qty: 1 SCREW (VITE) $1.59
Location: 32 Prev | Next Part: 2136948 *Qty: 1 PUMP (CILINDRO POMPA) $100.58
Location: 33 Prev | Next Part: 8401201 *Qty: 2 WASHER (RONDELLA) Call
Location: 34 Prev | Next Part: 2134973 *Qty: 1 SCREW (VITE FORATA) $123.31
Location: 35 Prev | Next Part: 8400819 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 36 Prev | Next Part: 2137532 *Qty: 1 PIPE (76 TUBO) Call
Location: 36 Prev | Next Part: 2137532 *Qty: 1 PIPE (74 TUBO) Call
Location: 36 Prev | Next Part: 2137085 *Qty: 1 PIPE (TUBO) $160.58

* Quantity shown indicates the number of pieces used in the diagram.
