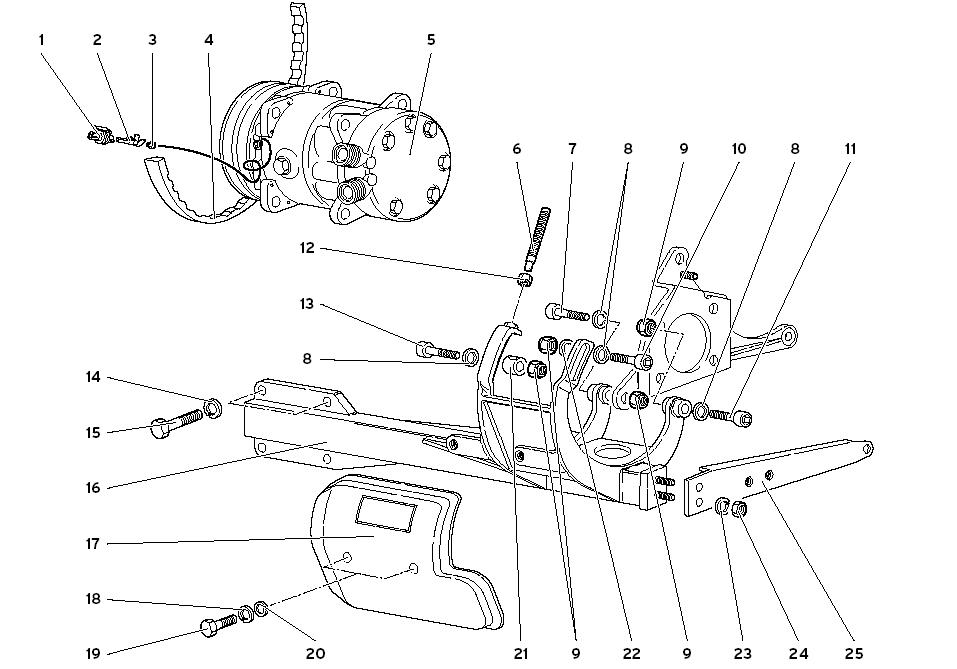

CLIMATE CONTROL

Location Part # Quantity* Description Price Add To Cart
1 6136453 1 CONNECTION (CONNESSIONE) Unavailable
2 6136454 1 KEY (LINGUETTA) Unavailable
3 6136447 1 RUBBER (GOMMA) Unavailable
4 4534071 1 BELT (CINGHIA) Unavailable
5 4535409 1 AIR COMPRESSOR (COMPRESSORE) Unavailable
6 8700841 1 SCREW (VITE) Unavailable
7 8701008 1 SCREW (VITE) Unavailable
8 8411002 4 WASHER (RONDELLA) Unavailable
9 8201008 4 NUT (DADO) Unavailable
10 8701017 1 SCREW (VITE) Unavailable
11 8701014 1 SCREW (VITE) Unavailable
12 8200801 1 NUT (DADO) Unavailable
13 8701020 1 SCREW (VITE) Unavailable
14 8410810 4 WASHER (RONDELLA) Unavailable
15 8100830 4 SCREW (VITE) Unavailable
16 4535242 1 SUPPORT (SUPPORTO) Unavailable
17 4535934 1 SHIELD (PROTEZIONE) Unavailable
18 8410602 2 WASHER (RONDELLA) Unavailable
19 8100601 2 SCREW (VITE) Unavailable
20 8400606 2 WASHER (RONDELLA) Unavailable
21 4529646 1 SPACER (DISTANZIALE) Unavailable
22 8401028 1 WASHER (RONDELLA) Unavailable
23 8410810 2 WASHER (RONDELLA) Unavailable
24 8200801 2 NUT (DADO) Unavailable
25 4529645 1 TIE ROD (TIRANTE) Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
