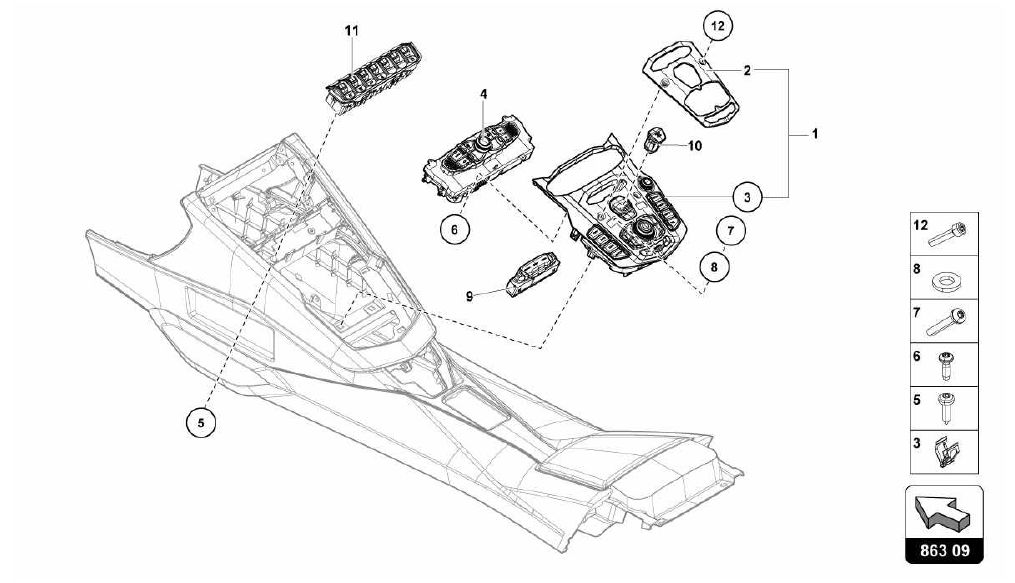

863.09.00-FRONT TUNNEL - SWITCHES

Go to Split View

863.09.00-FRONT TUNNEL - SWITCHES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 470919609 *Qty: 1 OPERATING UNIT FOR MULTIMEDIA SYSTEM -MMI- WITH JOYSTICK $4,032.30
Location: 2 Prev | Next Part: *Qty: 0 ORNAMENT (CANNOT BE SOLD SEPARATELY - SEE REF. 1 ) Call
Location: 3 Prev | Next Part: 1J0858137B *Qty: 6 CLIP $0.90
Location: 4 Prev | Next Part: 470820043A *Qty: 1 DISPLAY AND CONTROL PANEL FOR ELECTRONICALLY CONTROLLED AIR CONDITIONING (WITH HEATED SEATS) $4,284.32
Location: 4 Prev | Next Part: 470820043 *Qty: 1 DISPLAY AND CONTROL PANEL FOR ELECTRONICALLY CONTROLLED AIR CONDITIONING (WITHOUT HEATED SEATS) $5,116.98
Location: 5 Prev | Next Part: N10656302 *Qty: 2 SCREW ST3,5X13 $13.01
Location: 6 Prev | Next Part: N10625802 *Qty: 4 SCREW 3X10 $0.90
Location: 7 Prev | Next Part: N10582103 *Qty: 2 SCREW M6X40 $0.90
Location: 8 Prev | Next Part: N01152427 *Qty: 2 WASHER $0.90
Location: 9 Prev | Next Part: 470959674 *Qty: 1 MULTIPLE SWITCH (DRIVE SELECT) $250.01
Location: 10 Prev | Next Part: 470905217 *Qty: 1 PUSHBUTTON FOR START SYSTEM $121.40
Location: 11 Prev | Next Part: 471941567 *Qty: 1 MULTIPLE SWITCH (WITHOUT REAR VIEW CAMERA - PARK SENSOR) $578.38
Location: 11 Prev | Next Part: 471941567A *Qty: 1 MULTIPLE SWITCH (REAR VIEW CAMERA - PARK SENSOR) $560.99
Location: 12 Prev | Next Part: WHT003088 *Qty: 2 SCREW M4X16 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
