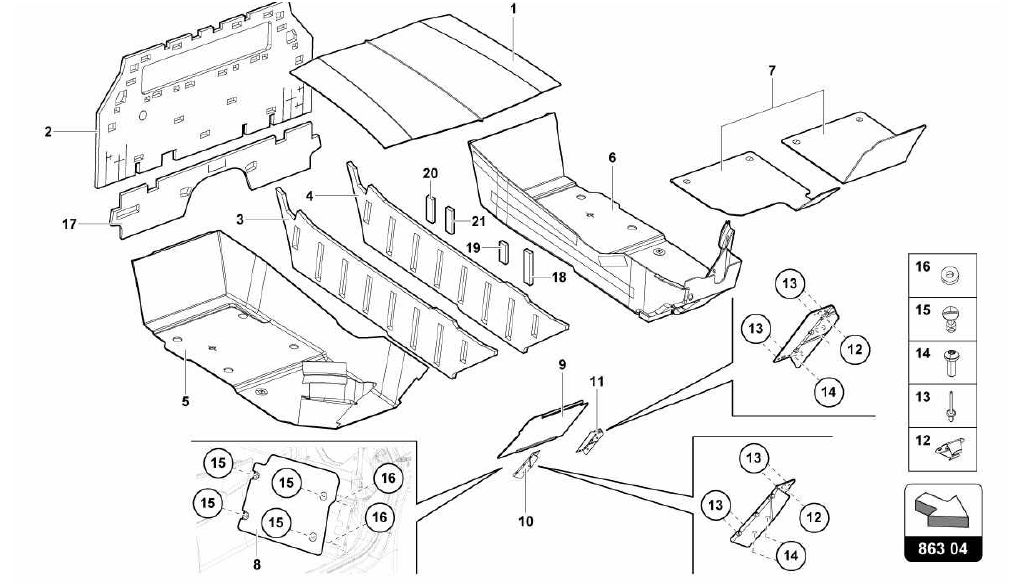

863.04.00-TRIMS AND SOUNDPROOFING

Go to Split View

863.04.00-TRIMS AND SOUNDPROOFING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 476867801A *Qty: 1 SOUNDPROOFING MATERIAL $179.32
Location: 2 Prev | Next Part: 476863901 *Qty: 1 SOUNDPROOFING MATERIAL $108.39
Location: 3 Prev | Next Part: 470864954A *Qty: 1 SOUNDPROOFING MATERIAL $50.78
Location: 4 Prev | Next Part: 470864953A *Qty: 1 SOUNDPROOFING MATERIAL $50.78
Location: 5 Prev | Next Part: 471863368D *Qty: 1 RH PLATFORM COVERING PANEL $720.32
Location: 6 Prev | Next Part: 471863367D *Qty: 1 LH PLATFORM COVERING PANEL $725.43
Location: 7 Prev | Next Part: 471863691 *Qty: 1 1 SET FOOT MATS $334.57
Location: 8 Prev | Next Part: 471864420A *Qty: 1 FOOTREST $86.23
Location: 9 Prev | Next Part: 471864463 *Qty: 1 FOOTSTOOL PLATFORM COVERING PANEL $128.71
Location: 10 Prev | Next Part: 471864781 *Qty: 1 SUPPORT $14.05
Location: 11 Prev | Next Part: 471864782 *Qty: 1 SUPPORT $14.05
Location: 12 Prev | Next Part: 400864994 *Qty: 4 CLIP $5.13
Location: 13 Prev | Next Part: N90931101 *Qty: 8 RIVET 3.2X8.0 $0.90
Location: 14 Prev | Next Part: N10196103 *Qty: 4 SCREW M6X18 $0.90
Location: 15 Prev | Next Part: 400864519A *Qty: 4 PLUG $13.71
Location: 16 Prev | Next Part: 7L121585 *Qty: 4 FAIRLEAD $12.14
Location: 17 Prev | Next Part: 476863902 *Qty: 1 SOUNDPROOFING MATERIAL $54.43
Location: 18 Prev | Next Part: 470864240D *Qty: 2 INSULATING COVERING (148MM) $6.73
Location: 19 Prev | Next Part: 470864240E *Qty: 6 INSULATING COVERING (88MM) $4.56
Location: 20 Prev | Next Part: 470864240F *Qty: 8 INSULATING COVERING (108MM) $5.75
Location: 21 Prev | Next Part: *Qty: 0 INSULATING COVERING (CANNOT BE SOLD SEE REF. 20) Call

* Quantity shown indicates the number of pieces used in the diagram.
