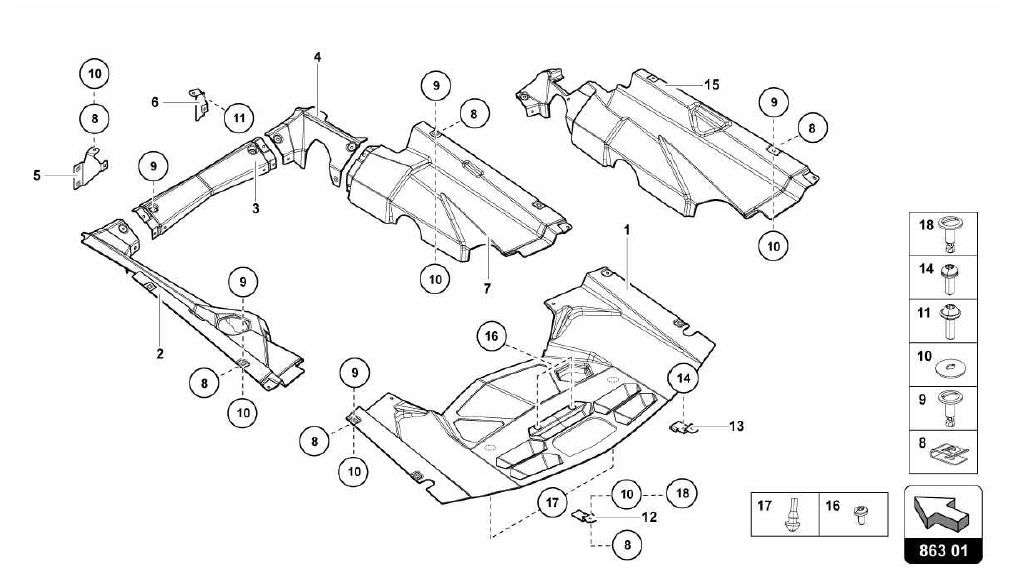

863.01.00-AESTHETIC HEAT

Go to Split View

863.01.00-AESTHETIC HEAT

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 470103786C *Qty: 1 COVER $796.76
Location: 2 Prev | Next Part: 470103723E *Qty: 1 COVER $265.59
Location: 3 Prev | Next Part: 470103917E *Qty: 1 COVER $106.24
Location: 4 Prev | Next Part: 470103963E *Qty: 1 COVER $53.76
Location: 5 Prev | Next Part: 470103933A *Qty: 1 LH BRACKET $26.89
Location: 6 Prev | Next Part: 470103932A *Qty: 1 RH BRACKET $26.89
Location: 7 Prev | Next Part: 470103724F *Qty: 1 COVER $265.59
Location: 8 Prev | Next Part: 8D0805960 *Qty: 24 CLIP $2.65
Location: 9 Prev | Next Part: 8D0805121 *Qty: 20 SCREW $4.63
Location: 10 Prev | Next Part: 4A0805137A *Qty: 22 WASHER $0.90
Location: 11 Prev | Next Part: N10558102 *Qty: 4 SCREW M6X18 $0.90
Location: 12 Prev | Next Part: 470103549 *Qty: 1 LH BRACKET $17.31
Location: 13 Prev | Next Part: 470103550 *Qty: 1 RH BRACKET $17.31
Location: 14 Prev | Next Part: N10578904 *Qty: 2 SCREW M8X20 $1.04
Location: 15 Prev | Next Part: *Qty: 0 COVER (FOR ROADSTER MODEL) Call
Location: 16 Prev | Next Part: N90638102 *Qty: 2 SCREW M6X12 $0.90
Location: 17 Prev | Next Part: 410853809 *Qty: 2 RUBBER STOP $33.19
Location: 18 Prev | Next Part: 420805121 *Qty: 2 SCREW $4.46

* Quantity shown indicates the number of pieces used in the diagram.
