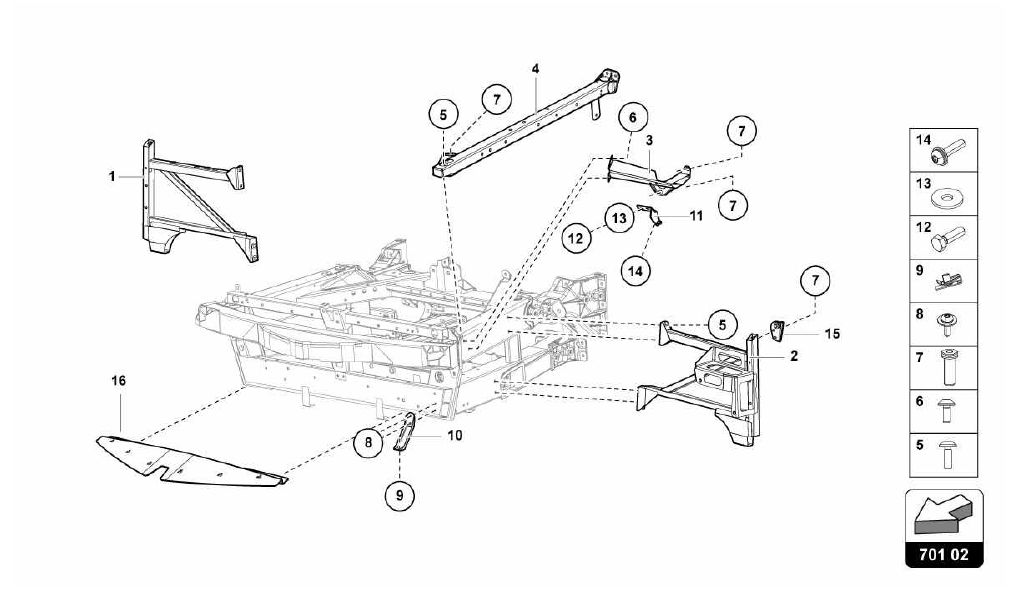

701.02.00-FRONT FRAME ELEMENTS

Go to Split View

701.02.00-FRONT FRAME ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 470806192B *Qty: 1 RIGHT SUPPORT (CONTACT YOUR AREA MANAGER) $494.53
Location: 2 Prev | Next Part: 470806191B *Qty: 1 LEFT SUPPORT (CONTACT YOUR AREA MANAGER) $555.86
Location: 3 Prev | Next Part: 470806811B *Qty: 1 LH BRACKET (CONTACT YOUR AREA MANAGER) $153.45
Location: 3 Prev | Next Part: 470806812B *Qty: 1 RH BRACKET (CONTACT YOUR AREA MANAGER) $153.45
Location: 4 Prev | Next Part: 470805100B *Qty: 1 FRONT RIGHT SIDE MEMBER (CONTACT YOUR AREA MANAGER) $400.66
Location: 4 Prev | Next Part: 470805099B *Qty: 1 FRONT LEFT SIDE MEMBER (CONTACT YOUR AREA MANAGER) $400.66
Location: 5 Prev | Next Part: N91000203 *Qty: 10 SCREW M8X25 (10X18) $4.03
Location: 6 Prev | Next Part: N90900401 *Qty: 6 SCREW M6X20 $0.90
Location: 7 Prev | Next Part: 8H0806221 *Qty: 8 COMPENSATING PIECE FOR HEADLAMS $5.95
Location: 8 Prev | Next Part: N10738101 *Qty: 4 SCREW M5X16 $0.90
Location: 9 Prev | Next Part: N90981701 *Qty: 2 CLIP $0.90
Location: 10 Prev | Next Part: 470807147A *Qty: 2 BRACKET (CONTACT YOUR AREA MANAGER) $43.47
Location: 11 Prev | Next Part: 470807136B *Qty: 1 RH BRACKET (CONTACT YOUR AREA MANAGER) $40.96
Location: 11 Prev | Next Part: 470807135B *Qty: 1 LH BRACKET (CONTACT YOUR AREA MANAGER) $40.96
Location: 12 Prev | Next Part: N0402936 *Qty: 4 SCREW M5X16 $0.90
Location: 13 Prev | Next Part: WHT000778 *Qty: 4 WASHER $0.90
Location: 14 Prev | Next Part: N91054101 *Qty: 2 SCREW M6X25 $0.90
Location: 15 Prev | Next Part: 470805328B *Qty: 1 LH BRACKET $29.05
Location: 15 Prev | Next Part: 470805327B *Qty: 1 RH BRACKET $29.05
Location: 16 Prev | Next Part: 470807165 *Qty: 1 FRONT SPOILER REINFORCEMENT $64.92

* Quantity shown indicates the number of pieces used in the diagram.
