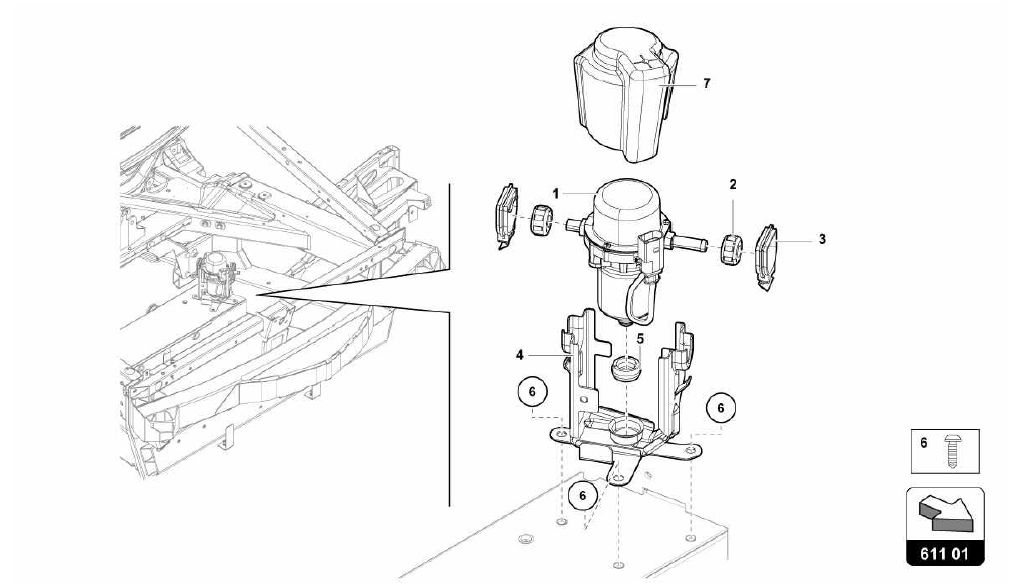

611.01.00-ELECTRIC BRAKE SYSTEM PUMP

Go to Split View

611.01.00-ELECTRIC BRAKE SYSTEM PUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8E0927317H *Qty: 1 PUMP (ORDER WITH REF. 7) $397.67
Location: 2 Prev | Next Part: 8E0614177B *Qty: 2 BUFFER $1.98
Location: 3 Prev | Next Part: 4B0614145 *Qty: 2 FASTENER $0.90
Location: 4 Prev | Next Part: 470927347 *Qty: 1 SUPPORT $55.87
Location: 5 Prev | Next Part: 8E0614177A *Qty: 1 BUFFER $1.98
Location: 6 Prev | Next Part: N91096701 *Qty: 3 SCREW M6X16 $0.90
Location: 7 Prev | Next Part: 470611357 *Qty: 1 COVER $44.51

* Quantity shown indicates the number of pieces used in the diagram.
