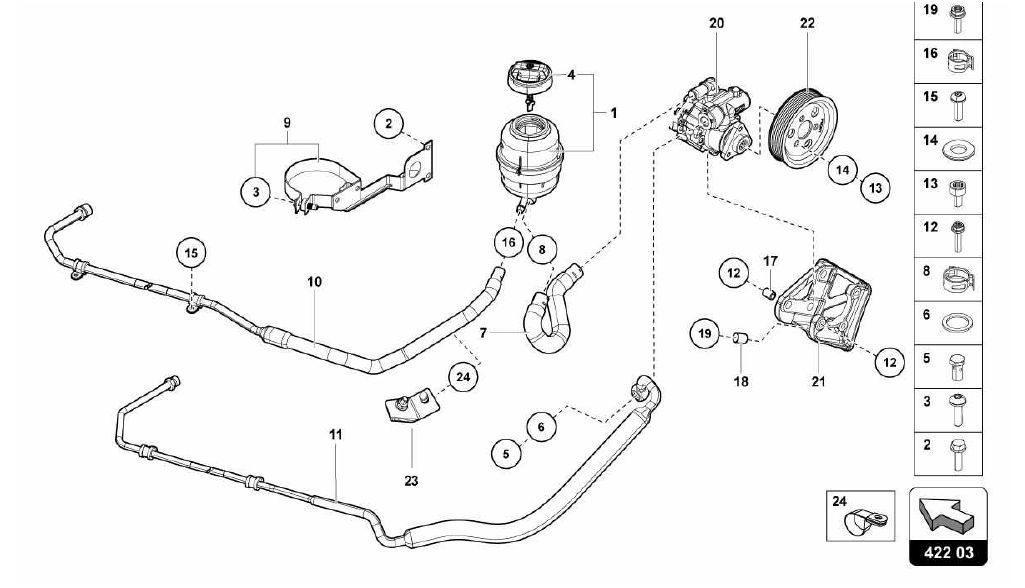

422.03.00-POWER STEERING - VANE PUMP

Go to Split View

422.03.00-POWER STEERING - VANE PUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 420422371A *Qty: 1 OIL TANK $146.29
Location: 2 Prev | Next Part: N0901486 *Qty: 2 SCREW M6X15 $0.90
Location: 3 Prev | Next Part: N10535501 *Qty: 1 SCREW M6X30 Call
Location: 4 Prev | Next Part: *Qty: 0 PLUG (CANNOT BE SOLD SEPARATELY - SEE REF. 1) Call
Location: 5 Prev | Next Part: WHT000507 *Qty: 1 CONNECTOR $4.80
Location: 6 Prev | Next Part: N0138487 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 470422843D *Qty: 1 PIPE $61.39
Location: 8 Prev | Next Part: N90686901 *Qty: 2 CLAMP $0.90
Location: 9 Prev | Next Part: 476422493F *Qty: 1 SUPPORT $131.70
Location: 10 Prev | Next Part: 470422857J *Qty: 1 RETURN HOSE (FROM VIN CLA00133) $287.36
Location: 10 Prev | Next Part: 470422857H *Qty: 1 RETURN HOSE (UNTIL THE VIN CLA00132) $245.30
Location: 11 Prev | Next Part: 470422893D *Qty: 1 PIPE (UNTIL THE VIN CLA00132) $277.00
Location: 11 Prev | Next Part: 470422893E *Qty: 1 PIPE (FROM VIN CLA00133) $332.36
Location: 12 Prev | Next Part: N10533601 *Qty: 6 SCREW M8X35 $2.22
Location: 13 Prev | Next Part: N91143901 *Qty: 3 SCREW M8X16 $0.90
Location: 14 Prev | Next Part: WHT003045 *Qty: 3 WASHER $20.01
Location: 15 Prev | Next Part: N10124304 *Qty: 2 SCREW M6X20 $0.90
Location: 16 Prev | Next Part: N90770201 *Qty: 1 CLAMP $2.65
Location: 17 Prev | Next Part: 470145219 *Qty: 3 BUSHING $29.22
Location: 18 Prev | Next Part: 7M103143A *Qty: 2 BUSHING $27.23
Location: 19 Prev | Next Part: N10689301 *Qty: 3 SCREW M8X25 $1.04
Location: 20 Prev | Next Part: 470145156A *Qty: 1 VANE PUMP $659.15
Location: 21 Prev | Next Part: 470145879A *Qty: 1 SUPPORT $249.35
Location: 22 Prev | Next Part: 470145235A *Qty: 1 PULLEY $187.97
Location: 23 Prev | Next Part: 470422484 *Qty: 1 BRACKET $32.47
Location: 24 Prev | Next Part: N02061610 *Qty: 1 CLAMP Call

* Quantity shown indicates the number of pieces used in the diagram.
