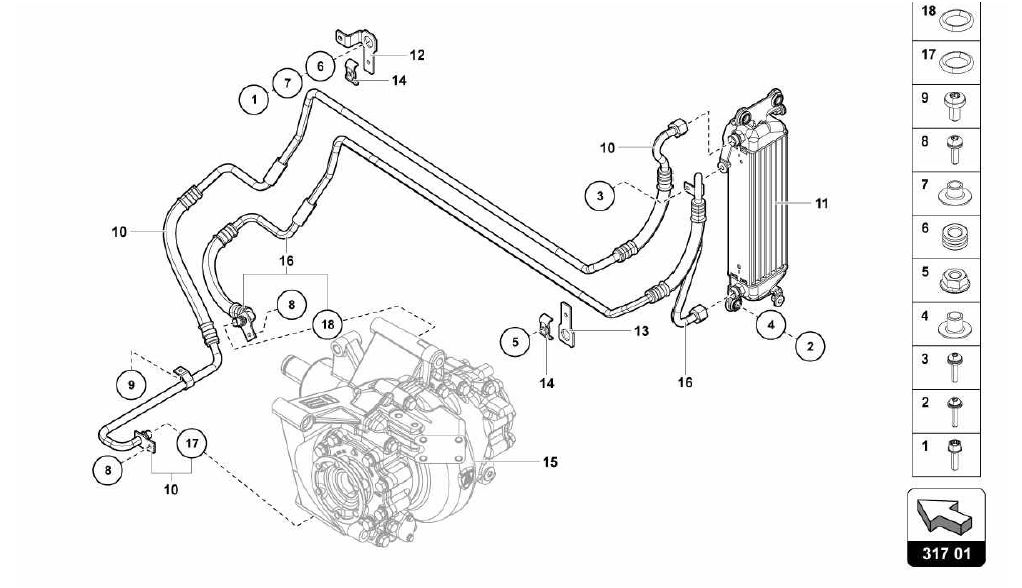

317.01.00-OIL COOLER

Go to Split View

317.01.00-OIL COOLER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N10720901 *Qty: 2 SCREW M8X28 $1.19
Location: 2 Prev | Next Part: N91054201 *Qty: 3 SCREW M6X28 $1.14
Location: 3 Prev | Next Part: N91054101 *Qty: 1 SCREW M6X25 $0.90
Location: 4 Prev | Next Part: 8Z0129734 *Qty: 3 SPACER $2.73
Location: 5 Prev | Next Part: N01508213 *Qty: 2 NUT M6 $0.90
Location: 6 Prev | Next Part: 4D0317867A *Qty: 2 RUBBER BUSHING $5.37
Location: 7 Prev | Next Part: 4E0903127 *Qty: 2 BUSHING $9.76
Location: 8 Prev | Next Part: N10347103 *Qty: 2 SCREW M6X20 $0.90
Location: 9 Prev | Next Part: N10335202 *Qty: 1 SCREW M6X12 $0.90
Location: 10 Prev | Next Part: 470511805A *Qty: 1 PIPE $214.44
Location: 11 Prev | Next Part: 470511885A *Qty: 1 OIL COOLER $579.26
Location: 12 Prev | Next Part: 470511538 *Qty: 1 BRACKET $22.55
Location: 13 Prev | Next Part: 470511833 *Qty: 1 BRACKET $25.25
Location: 14 Prev | Next Part: 4A0317171D *Qty: 2 BRACKET $1.98
Location: 15 Prev | Next Part: *Qty: 0 REAR DIFFERENTIAL (SEE TABLE 500.01.00) Call
Location: 16 Prev | Next Part: 470511822A *Qty: 1 PIPE $210.79
Location: 17 Prev | Next Part: N90666003 *Qty: 1 O-RING 11,5X3 $2.65
Location: 18 Prev | Next Part: N90666003 *Qty: 1 O-RING 11,5X3 $2.65

* Quantity shown indicates the number of pieces used in the diagram.
