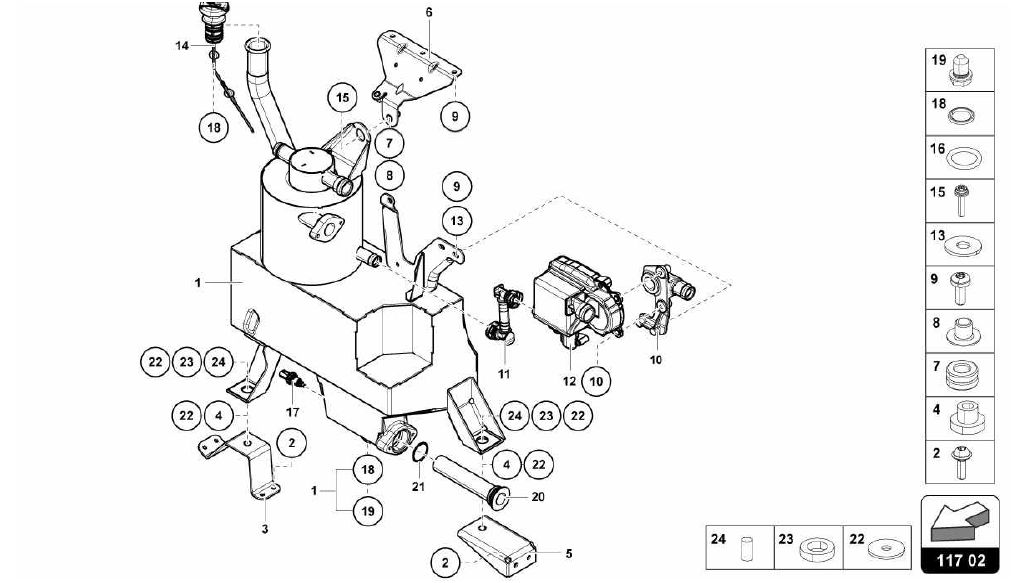

117.02.00-OIL TANK

Go to Split View

117.02.00-OIL TANK

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 470115373G *Qty: 1 OIL TANK $1,313.58
Location: 2 Prev | Next Part: N10558102 *Qty: 6 SCREW M6X18 $0.90
Location: 3 Prev | Next Part: 470115641B *Qty: 1 SUPPORT $26.52
Location: 4 Prev | Next Part: 400121268 *Qty: 2 SUPPORT $5.75
Location: 5 Prev | Next Part: 470115575B *Qty: 1 SUPPORT $32.84
Location: 6 Prev | Next Part: 470115261C *Qty: 1 SUPPORT $35.53
Location: 7 Prev | Next Part: 4D0317867A *Qty: 1 FAIRLEAD $5.37
Location: 8 Prev | Next Part: 4E0903127 *Qty: 1 SPACER $9.76
Location: 9 Prev | Next Part: N10451408 *Qty: 7 SCREW M6X16 $0.90
Location: 10 Prev | Next Part: 470103811 *Qty: 1 SUPPORT $156.59
Location: 11 Prev | Next Part: 470115659 *Qty: 1 PIPE $32.44
Location: 12 Prev | Next Part: 7C103464F *Qty: 1 OIL SEPARATOR $206.69
Location: 13 Prev | Next Part: WHT002961 *Qty: 3 WASHER $0.90
Location: 14 Prev | Next Part: 470115319A *Qty: 1 PLUG $134.78
Location: 15 Prev | Next Part: N10533601 *Qty: 1 SCREW M8X35 $2.22
Location: 16 Prev | Next Part: WHT002641 *Qty: 1 SEAL RING $4.22
Location: 17 Prev | Next Part: 59919523A *Qty: 1 SENSOR $51.51
Location: 18 Prev | Next Part: N0138157 *Qty: 1 WASHER (1 WASHER PER SERVICE INSPECTION) $2.65
Location: 19 Prev | Next Part: 36103193 *Qty: 1 PLUG $40.96
Location: 20 Prev | Next Part: 470115157 *Qty: 1 OIL FILTER $122.67
Location: 21 Prev | Next Part: WHT004895 *Qty: 1 RETAINER RING $3.87
Location: 22 Prev | Next Part: WHT001942 *Qty: 4 WASHER $0.90
Location: 23 Prev | Next Part: WHT001189 *Qty: 2 RUBBER BUSHING $3.04
Location: 24 Prev | Next Part: 400121277 *Qty: 2 BUSHING $7.77

* Quantity shown indicates the number of pieces used in the diagram.
