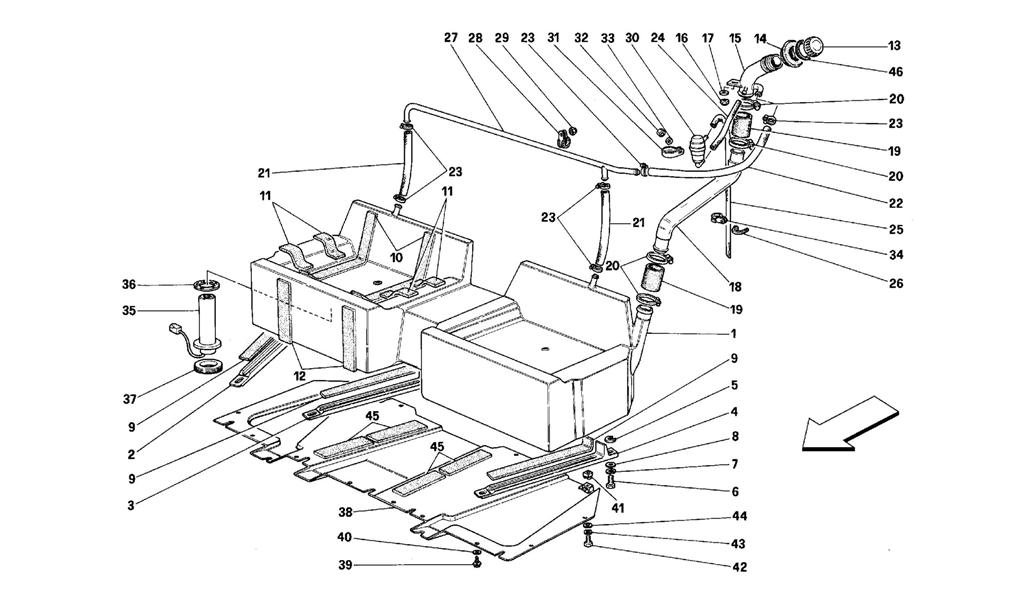

TANK AND FUEL VENT SYSTEMS -COUPE - NOT FOR CARS WITH CATALYST-

Go to Split View

TANK AND FUEL VENT SYSTEMS -COUPE - NOT FOR CARS WITH CATALYST-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 135182 *Qty: 1 Fuel tank $4,590.47
Location: 2 Prev | Next Part: 137545 *Qty: 1 R.H. bracket $34.64
Location: 3 Prev | Next Part: 137976 *Qty: 1 Central bracket $36.01
Location: 4 Prev | Next Part: 137977 *Qty: 1 L.H. bracket $33.80
Location: 5 Prev | Next Part: 140745 *Qty: 0 Washer -Thick. 2- -Possibly assembled $1.60
Location: 5 Prev | Next Part: 140746 *Qty: 0 Washer -Thick. 3- -Possibly assembled $0.90
Location: 5 Prev | Next Part: 140747 *Qty: 0 Washer -Thick. 4- -Possibly assembled $61.48
Location: 6 Prev | Next Part: 11306921 *Qty: 6 Screw $0.90
Location: 7 Prev | Next Part: 127497 *Qty: 6 Washer $0.90
Location: 8 Prev | Next Part: 14496621 *Qty: 6 Washer $0.90
Location: 9 Prev | Next Part: 139518 *Qty: 3 Shim $6.64
Location: 10 Prev | Next Part: 125036 *Qty: 4 Shim Call
Location: 11 Prev | Next Part: 115330 *Qty: 8 Shim $10.81
Location: 12 Prev | Next Part: 139504 *Qty: 4 Shim $3.57
Location: 13 Prev | Next Part: 180320 *Qty: 1 Cap $944.26
Location: 14 Prev | Next Part: 101465 *Qty: 1 Gasket Call
Location: 15 Prev | Next Part: 139506 *Qty: 1 Filler cap $228.40
Location: 16 Prev | Next Part: 102948 *Qty: 1 Nut $0.90
Location: 17 Prev | Next Part: 12643724 *Qty: 2 Washer $0.90
Location: 18 Prev | Next Part: 142862 *Qty: 1 Filler cap - tank connection pipe $99.32
Location: 19 Prev | Next Part: 114278 *Qty: 2 Sleeve $73.68
Location: 20 Prev | Next Part: 12174790 *Qty: 4 Clamp $1.39
Location: 21 Prev | Next Part: 115137 *Qty: 2 Rubber pipe Call
Location: 22 Prev | Next Part: 139409 *Qty: 1 Breather pipe to the filler cap $22.17
Location: 23 Prev | Next Part: 13000390 *Qty: 6 Clamp $0.97
Location: 24 Prev | Next Part: 121937 *Qty: 1 Breather pipe from filler cap to valve $3.90
Location: 25 Prev | Next Part: 140089 *Qty: 1 External breather pipe $18.35
Location: 26 Prev | Next Part: 14560187 *Qty: 5 Clamp $0.90
Location: 27 Prev | Next Part: 137502 *Qty: 1 Tank conn. breather pipe $63.68
Location: 28 Prev | Next Part: 10441590 *Qty: 3 Bracket $0.90
Location: 29 Prev | Next Part: 102741 *Qty: 3 Nut $0.90
Location: 30 Prev | Next Part: 139568 *Qty: 1 Anti-tilting valve Call
Location: 31 Prev | Next Part: 139980 *Qty: 1 Clamp $2.71
Location: 32 Prev | Next Part: 102741 *Qty: 1 Nut $0.90
Location: 33 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 34 Prev | Next Part: 10115701 *Qty: 2 Bracket $0.90
Location: 35 Prev | Next Part: 137419 *Qty: 1 Fuel level indicator Call
Location: 36 Prev | Next Part: 154802 *Qty: 1 Gasket $31.92
Location: 37 Prev | Next Part: 121435 *Qty: 1 Level indicator fastening ring nut $151.77
Location: 38 Prev | Next Part: 139456 *Qty: 1 Tank protection sheet $1,393.21
Location: 39 Prev | Next Part: 15829001 *Qty: 8 Screw $0.90
Location: 40 Prev | Next Part: 14497701 *Qty: 8 Washer $0.90
Location: 41 Prev | Next Part: 60758600 *Qty: 2 Nut with cage $0.90
Location: 42 Prev | Next Part: 10902221 *Qty: 12 Screw $1.28
Location: 43 Prev | Next Part: 127494 *Qty: 12 Washer $0.90
Location: 44 Prev | Next Part: 12643724 *Qty: 12 Washer $0.90
Location: 45 Prev | Next Part: 115330 *Qty: 8 Shim $10.81
Location: 46 Prev | Next Part: 180585 *Qty: 1 Gasket for cap $89.81

* Quantity shown indicates the number of pieces used in the diagram.
