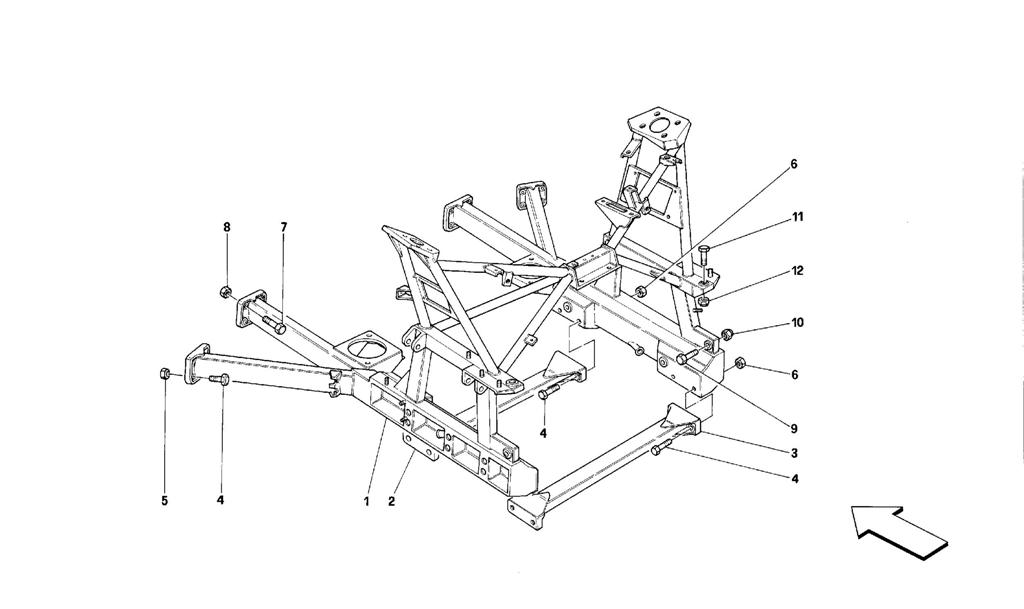

REAR REMOVABLE FRAME -VALID FOR CARS WITH 3P

Go to Split View

REAR REMOVABLE FRAME -VALID FOR CARS WITH 3P

Location Part # Quantity* Description Price Add To Cart
1 142183 1 Rear removable frame -Coup?- -Valid for RHD $4,398.14
1 142533 1 Rear removable frame -Cabriolet- -Not for CH and RHD $9,437.37
1 142535 1 Rear removable frame -Cabriolet- -Valid for RHD $6,435.36
1 142536 1 Rear removable frame -Cabriolet- -Valid for CH $6,646.57
1 142537 1 Rear removable frame -Coup?- -Valid for CH $6,646.57
1 139265 1 Rear removable frame -Coup?- -Not for CH and RHD $5,841.81
2 145684 1 Front cross member removable -Valid for CH $227.58
2 140405 1 Front cross member removable -Not for CH $360.12
3 62465000 1 Rear cross member removable -Not for CH $606.18
3 145685 1 Rear cross member removable -Valid for CH $227.58
4 15540621 16 Screw Superseded
5 163534 8 Nut Unavailable
6 142438 8 Nut $1.04
7 15540421 8 Screw $4.18
8 163534 8 Nut Unavailable
9 15541221 2 Screw $6.46
10 163534 2 Nut Unavailable
11 15540421 2 Screw $4.18
12 148020 2 Nut $5.28

* Quantity shown indicates the number of pieces used in the diagram.
