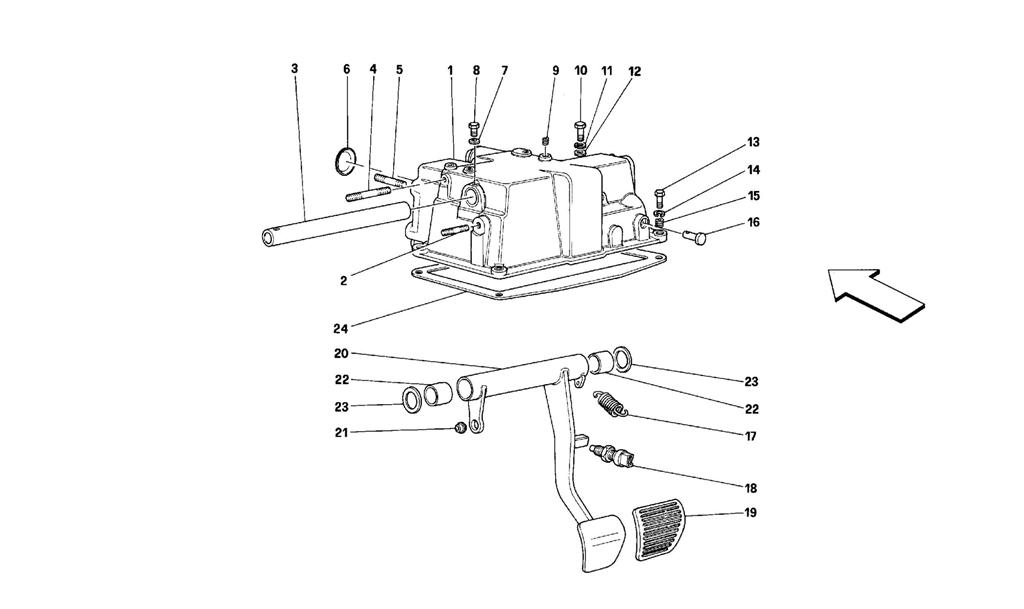

PEDALS CASE AND SUPPORT -VALID FOR CARS WITH F.E.-

Go to Split View

PEDALS CASE AND SUPPORT -VALID FOR CARS WITH F.E.-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 146225 *Qty: 1 Pedal case support -Valid for GD $1,263.12
Location: 1 Prev | Next Part: 144761 *Qty: 1 Pedal case support -Not for GD $2,103.27
Location: 2 Prev | Next Part: 13517021 *Qty: 1 Stud -Not for GD- Call
Location: 2 Prev | Next Part: 13517121 *Qty: 1 Stud -Valid for GD- Call
Location: 3 Prev | Next Part: 129954 *Qty: 1 Pedal support pin -Not for GD $370.67
Location: 3 Prev | Next Part: 131319 *Qty: 1 Pedal support pin -Valid for GD $147.90
Location: 4 Prev | Next Part: 13517121 *Qty: 1 Stud -Valid for GD- Call
Location: 4 Prev | Next Part: 13517521 *Qty: 1 Stud -Not for GD- $0.90
Location: 5 Prev | Next Part: 13543424 *Qty: 4 Stud $0.90
Location: 6 Prev | Next Part: 10160401 *Qty: 1 Expansion plug $0.90
Location: 7 Prev | Next Part: 12601274 *Qty: 1 Washer $0.90
Location: 8 Prev | Next Part: 10902221 *Qty: 1 Screw $1.28
Location: 9 Prev | Next Part: 13525170 *Qty: 4 Heli-coil $0.90
Location: 10 Prev | Next Part: 16043621 *Qty: 2 Screw $0.90
Location: 11 Prev | Next Part: 127496 *Qty: 2 Washer $0.90
Location: 12 Prev | Next Part: 10519624 *Qty: 2 Washer $0.90
Location: 13 Prev | Next Part: 16043321 *Qty: 2 Screw $0.90
Location: 14 Prev | Next Part: 127496 *Qty: 2 Washer $0.90
Location: 15 Prev | Next Part: 13525770 *Qty: 2 Heli-coil $0.90
Location: 16 Prev | Next Part: 129612 *Qty: 1 Pin $3.06
Location: 17 Prev | Next Part: 101305 *Qty: 1 Pedal return spring $5.99
Location: 18 Prev | Next Part: 133555 *Qty: 1 Stop lights switch $111.55
Location: 19 Prev | Next Part: 144237 *Qty: 1 Pedal protection $108.51
Location: 20 Prev | Next Part: 146226 *Qty: 1 Brake pedal -Valid for GD- $842.21
Location: 20 Prev | Next Part: 144235 *Qty: 1 Brake pedal -Not for GD- $426.69
Location: 21 Prev | Next Part: 109407 *Qty: 1 Ball joint $27.56
Location: 22 Prev | Next Part: 103163 *Qty: 2 Bush $3.80
Location: 23 Prev | Next Part: 106083 *Qty: 2 Washer -Thick. mm 1.0- $0.90
Location: 23 Prev | Next Part: 113833 *Qty: 0 Washer -Thick. mm 1.1- $3.22
Location: 23 Prev | Next Part: 113834 *Qty: 0 Washer -Thick. mm 1.2- $3.22
Location: 23 Prev | Next Part: 113835 *Qty: 0 Washer -Thick. mm 1.3- $0.90
Location: 23 Prev | Next Part: 113836 *Qty: 0 Washer -Thick. mm 1.4- $1.14
Location: 24 Prev | Next Part: 129615 *Qty: 1 Gasket $16.36

* Quantity shown indicates the number of pieces used in the diagram.
