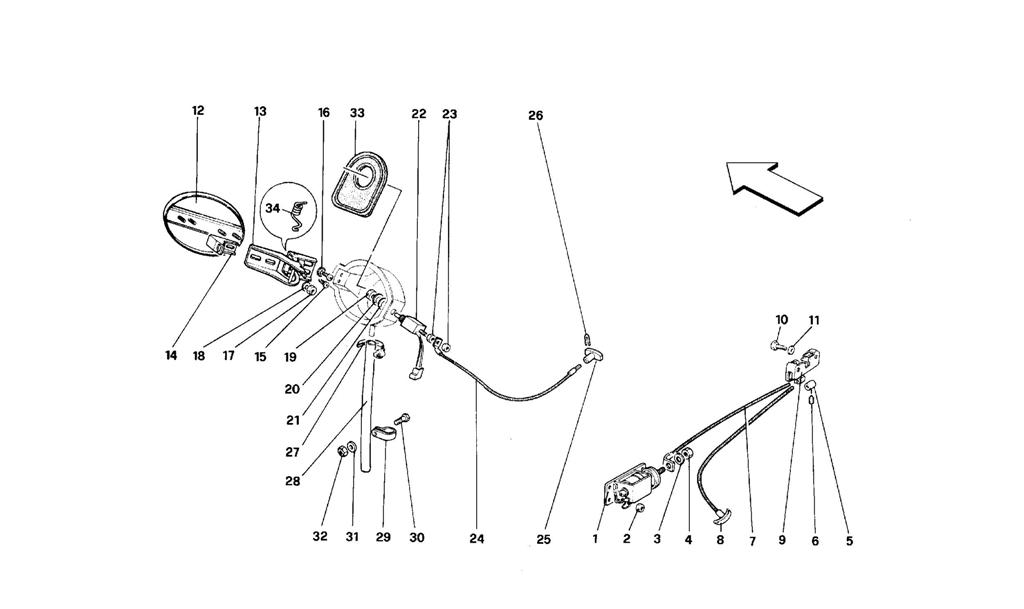

OPENING DEVICES FOR ENGINE BONNET AND GAS DOOR

Go to Split View

OPENING DEVICES FOR ENGINE BONNET AND GAS DOOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 152326 *Qty: 1 Bonnet opener Call
Location: 2 Prev | Next Part: 102948 *Qty: 4 Nut $0.90
Location: 3 Prev | Next Part: 11195479 *Qty: 1 Washer $0.90
Location: 4 Prev | Next Part: 15896470 *Qty: 1 Nut $0.90
Location: 5 Prev | Next Part: 60276607 *Qty: 1 Clamp $42.87
Location: 6 Prev | Next Part: 60276805 *Qty: 1 Dowel $1.81
Location: 7 Prev | Next Part: 61299400 *Qty: 1 Bonnet opener cable -Cabriolet- $6.30
Location: 7 Prev | Next Part: 60666400 *Qty: 1 Bonnet opener cable -Coup?- $23.30
Location: 8 Prev | Next Part: 61299500 *Qty: 1 Emergency cable -Cabriolet- $7.70
Location: 8 Prev | Next Part: 60666500 *Qty: 1 Emergency cable -Coup?- $8.93
Location: 9 Prev | Next Part: 60277407 *Qty: 1 Lock Call
Location: 10 Prev | Next Part: 20297503 *Qty: 2 Screw $0.90
Location: 11 Prev | Next Part: 10519501 *Qty: 2 Washer $0.90
Location: 12 Prev | Next Part: 62647200 *Qty: 1 Fuel filler lid -Cabriolet $82.14
Location: 12 Prev | Next Part: 60537100 *Qty: 1 Fuel filler lid -Coup? $68.48
Location: 13 Prev | Next Part: 62370400 *Qty: 1 Hinge for fuel filler lid complete $367.15
Location: 14 Prev | Next Part: 60538100 *Qty: 1 Lock striker $40.71
Location: 15 Prev | Next Part: 13274011 *Qty: 2 Screw $0.90
Location: 16 Prev | Next Part: 149951 *Qty: 2 Washer Superseded
Location: 17 Prev | Next Part: 169180 *Qty: 4 Nut $0.90
Location: 18 Prev | Next Part: 12638124 *Qty: 4 Washer $0.90
Location: 19 Prev | Next Part: 60538800 *Qty: 1 Ring nut $10.23
Location: 20 Prev | Next Part: 60772700 *Qty: 1 Nylon washer $4.21
Location: 21 Prev | Next Part: 60772600 *Qty: 1 Washer $0.90
Location: 22 Prev | Next Part: 60868600 *Qty: 1 Solenoid $573.63
Location: 23 Prev | Next Part: 16101711 *Qty: 2 Nut $0.90
Location: 24 Prev | Next Part: 62668300 *Qty: 1 Emergency cable -Cabriolet- $4.64
Location: 24 Prev | Next Part: 60710800 *Qty: 1 Emergency cable -Coup?- $3.15
Location: 25 Prev | Next Part: 60710900 *Qty: 1 Handle for emergency cable Call
Location: 26 Prev | Next Part: 60711000 *Qty: 1 Spring for handle $0.90
Location: 27 Prev | Next Part: 13000190 *Qty: 1 Clamp $0.90
Location: 28 Prev | Next Part: 60781500 *Qty: 1 Exhaust water pipe $6.49
Location: 29 Prev | Next Part: 10450390 *Qty: 1 Bracket $0.90
Location: 30 Prev | Next Part: 10902211 *Qty: 1 Screw Call
Location: 31 Prev | Next Part: 10519424 *Qty: 1 Washer Call
Location: 32 Prev | Next Part: 102948 *Qty: 1 Nut $0.90
Location: 33 Prev | Next Part: 62943200 *Qty: 1 Fuel plug protection $27.96
Location: 34 Prev | Next Part: 60538000 *Qty: 1 Spring for hinge $5.44

* Quantity shown indicates the number of pieces used in the diagram.
