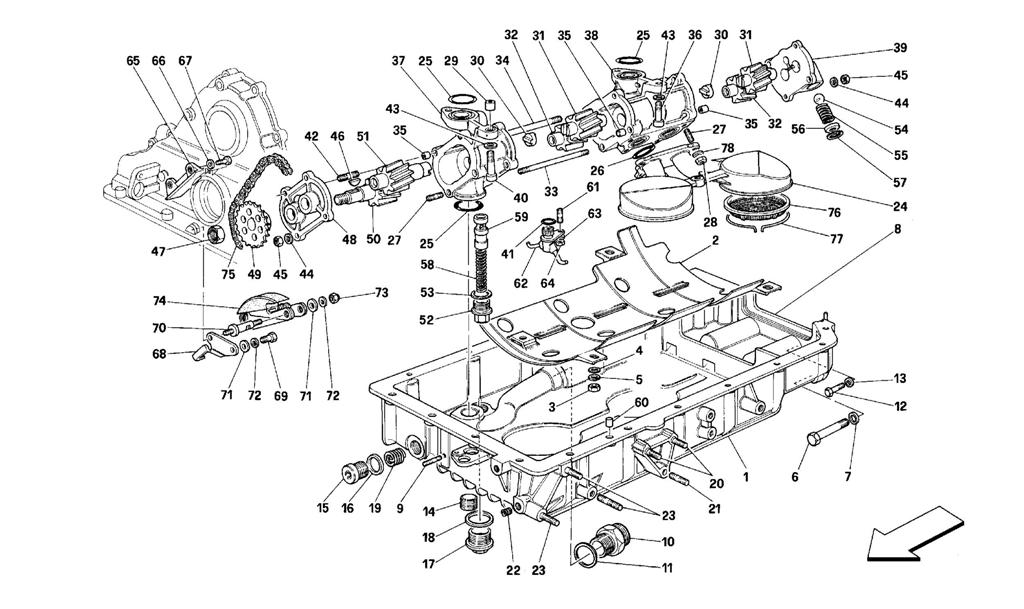

LUBRICATION - PUMPS AND OIL SUMPS

Go to Split View

LUBRICATION - PUMPS AND OIL SUMPS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 143277 *Qty: 1 Complete oil cup $1,668.78
Location: 1 Prev | Next Part: 143277 *Qty: 1 Oil cup -With assembly 143277 $1,668.78
Location: 2 Prev | Next Part: 149318 *Qty: 1 Oil anti-shaking panel -Plastic - After stock exhaustion of 137817 $16.64
Location: 3 Prev | Next Part: 16102314 *Qty: 4 Nut $0.90
Location: 4 Prev | Next Part: 10519624 *Qty: 4 Washer $0.90
Location: 5 Prev | Next Part: 127496 *Qty: 4 Washer $0.90
Location: 6 Prev | Next Part: 11288021 *Qty: 2 Screw $0.90
Location: 7 Prev | Next Part: 11190579 *Qty: 2 Washer $0.90
Location: 8 Prev | Next Part: 117036 *Qty: 1 Gasket $6.43
Location: 9 Prev | Next Part: 11001221 *Qty: 1 Stud bolt $2.54
Location: 10 Prev | Next Part: 138149 *Qty: 1 Union $59.04
Location: 11 Prev | Next Part: 144485 *Qty: 1 Gasket $28.20
Location: 12 Prev | Next Part: 10902724 *Qty: 2 Screw $0.90
Location: 13 Prev | Next Part: 12601374 *Qty: 2 Washer $0.90
Location: 14 Prev | Next Part: 10268450 *Qty: 1 Cap $8.70
Location: 15 Prev | Next Part: 10275001 *Qty: 1 Cap Superseded
Location: 16 Prev | Next Part: 10261860 *Qty: 1 Gasket $0.90
Location: 17 Prev | Next Part: 133284 *Qty: 1 Cap $120.00
Location: 18 Prev | Next Part: 144485 *Qty: 1 Gasket $28.20
Location: 19 Prev | Next Part: 112254 *Qty: 1 Heli-coil $5.06
Location: 20 Prev | Next Part: 12354524 *Qty: 2 Stud bolt $37.74
Location: 21 Prev | Next Part: 13543124 *Qty: 1 Stud bolt $0.99
Location: 22 Prev | Next Part: 13525770 *Qty: 2 Heli-coil $0.90
Location: 23 Prev | Next Part: 12354524 *Qty: 3 Stud bolt $37.74
Location: 24 Prev | Next Part: 143797 *Qty: 1 Pump floater -Valid from motor No. 26716 $179.77
Location: 24 Prev | Next Part: 132371 *Qty: 1 Pump floater -Valid till engine No. 26715 $257.25
Location: 25 Prev | Next Part: 133939 *Qty: 3 Gasket $1.22
Location: 26 Prev | Next Part: 133938 *Qty: 2 Gasket $0.90
Location: 27 Prev | Next Part: 13540820 *Qty: 6 Stud bolt Superseded
Location: 28 Prev | Next Part: 132877 *Qty: 4 Nut $3.78
Location: 29 Prev | Next Part: 102704 *Qty: 1 Dowel $2.18
Location: 30 Prev | Next Part: 109309 *Qty: 2 Joint $16.78
Location: 31 Prev | Next Part: 132458 *Qty: 2 Leading gear $203.30
Location: 32 Prev | Next Part: 132460 *Qty: 2 Driven gear $644.05
Location: 33 Prev | Next Part: 133842 *Qty: 2 Stud bolt $1.95
Location: 34 Prev | Next Part: 133843 *Qty: 2 Stud bolt $1.69
Location: 35 Prev | Next Part: 102725 *Qty: 5 Dowel $0.90
Location: 36 Prev | Next Part: 14306421 *Qty: 3 Screw Superseded
Location: 37 Prev | Next Part: 149530 *Qty: 1 Delivery pump body -Valid from motor No. 24720 $1,151.61
Location: 37 Prev | Next Part: 143479 *Qty: 1 Delivery pump body -Valid till engine No. 24719 $547.60
Location: 38 Prev | Next Part: 143276 *Qty: 1 Recovery pump body $1,082.81
Location: 39 Prev | Next Part: 132436 *Qty: 1 Recovery pump cover $135.18
Location: 40 Prev | Next Part: 14306524 *Qty: 1 Screw $0.90
Location: 41 Prev | Next Part: 137192 *Qty: 4 Seal ring $0.90
Location: 42 Prev | Next Part: 13541024 *Qty: 2 Stud bolt $0.90
Location: 43 Prev | Next Part: 11198074 *Qty: 4 Washer $0.90
Location: 44 Prev | Next Part: 11197771 *Qty: 8 Washer Superseded
Location: 45 Prev | Next Part: 134041 *Qty: 8 Nut $1.20
Location: 46 Prev | Next Part: 10205820 *Qty: 1 Tongue $1.60
Location: 47 Prev | Next Part: 132876 *Qty: 1 Nut $40.52
Location: 48 Prev | Next Part: 132434 *Qty: 1 Front cover $93.91
Location: 49 Prev | Next Part: 132462 *Qty: 1 External gear $50.47
Location: 50 Prev | Next Part: 132454 *Qty: 1 Leading gear $599.69
Location: 51 Prev | Next Part: 181862 *Qty: 1 Driven gear $522.06
Location: 52 Prev | Next Part: 129322 *Qty: 1 Pressure valve cap $5.05
Location: 53 Prev | Next Part: 10257460 *Qty: 1 Gasket $0.90
Location: 54 Prev | Next Part: 121306 *Qty: 1 Sphere $3.41
Location: 55 Prev | Next Part: 109980 *Qty: 1 Spring $19.54
Location: 56 Prev | Next Part: 132772 *Qty: 1 Spacer $8.49
Location: 57 Prev | Next Part: 11057876 *Qty: 1 Seeger $0.90
Location: 58 Prev | Next Part: 137614 *Qty: 1 Spring $57.01
Location: 59 Prev | Next Part: 129324 *Qty: 1 Valve $305.13
Location: 60 Prev | Next Part: 102725 *Qty: 2 Dowel $0.90
Location: 61 Prev | Next Part: 11000821 *Qty: 4 Stud bolt $0.90
Location: 62 Prev | Next Part: 137607 *Qty: 4 Multiple union $153.32
Location: 63 Prev | Next Part: 11199279 *Qty: 4 Washer $0.90
Location: 64 Prev | Next Part: 15896470 *Qty: 4 Nut $0.90
Location: 65 Prev | Next Part: 136039 *Qty: 1 Fixed slider $71.76
Location: 66 Prev | Next Part: 12601274 *Qty: 2 Washer $0.90
Location: 67 Prev | Next Part: 10902424 *Qty: 2 Screw $0.90
Location: 68 Prev | Next Part: 155833 *Qty: 1 Chain tightener plate $45.65
Location: 69 Prev | Next Part: 10902211 *Qty: 1 Screw Call
Location: 70 Prev | Next Part: 134263 *Qty: 1 Stud bolt $100.77
Location: 71 Prev | Next Part: 12646601 *Qty: 2 Washer $0.90
Location: 72 Prev | Next Part: 12601274 *Qty: 2 Washer $0.90
Location: 73 Prev | Next Part: 131837 *Qty: 1 Nut $7.33
Location: 74 Prev | Next Part: 169596 *Qty: 1 Chain tightener Superseded
Location: 75 Prev | Next Part: 133089 *Qty: 1 Oil pump chain $42.32
Location: 76 Prev | Next Part: 122429 *Qty: 2 Filter -Valid from motor No. 26716 $14.12
Location: 77 Prev | Next Part: 103944 *Qty: 2 Seal ring -Valid from motor No. 26716 $128.16
Location: 78 Prev | Next Part: 12604279 *Qty: 4 Washer -Valid from motor No. 26716 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
