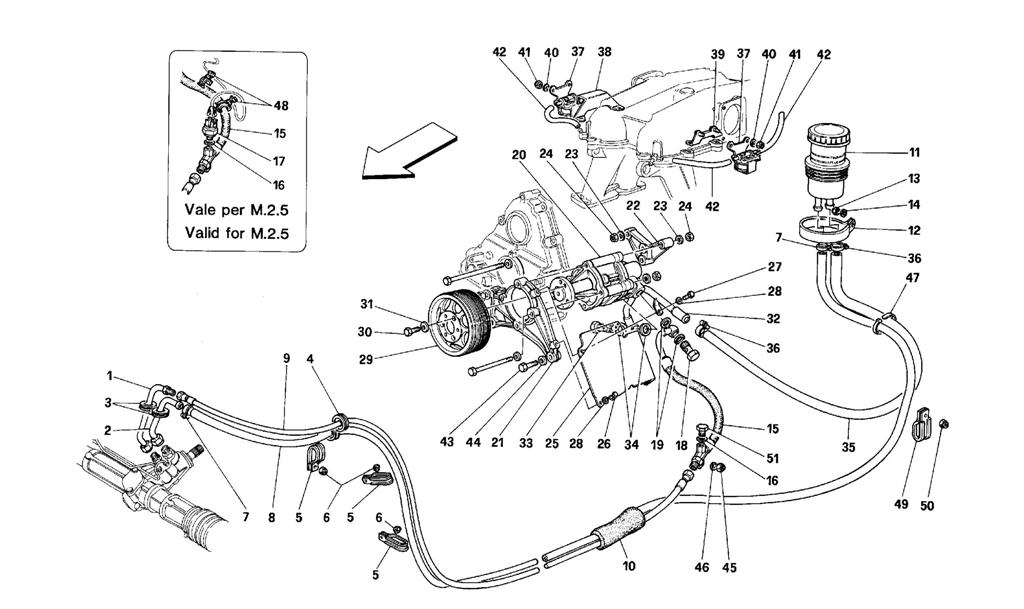

HYDRAULIC STEERING PUMPS AND PIPINGS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 138867 *Qty: 1 Inlet pipe on drive box -Not for GD $58.49
Location: 1 Prev | Next Part: 138886 *Qty: 1 Inlet pipe on drive box -Vale for GD $62.70
Location: 2 Prev | Next Part: 138868 *Qty: 1 Outlet pipe on drive box -Not for GD $52.19
Location: 2 Prev | Next Part: 138885 *Qty: 1 Outlet pipe on drive box -Valid for GD $57.78
Location: 3 Prev | Next Part: 10396780 *Qty: 2 Insulating ring $0.90
Location: 4 Prev | Next Part: 10396880 *Qty: 2 Fairlead $2.23
Location: 5 Prev | Next Part: 139512 *Qty: 3 Pipes fastening bracket $3.01
Location: 6 Prev | Next Part: 102741 *Qty: 3 Nut $0.90
Location: 7 Prev | Next Part: 13000390 *Qty: 2 Clamp $0.90
Location: 8 Prev | Next Part: 137467 *Qty: 1 Pipe from drive box to tank -Coupe - Not for GD $133.78
Location: 8 Prev | Next Part: 141253 *Qty: 1 Pipe from drive box to tank - Cabriolet -Not for GD $78.45
Location: 8 Prev | Next Part: 138893 *Qty: 1 Pipe from drive box to tank -Valid for GD $152.34
Location: 9 Prev | Next Part: 137535 *Qty: 1 Delivery pipe from pump -Coupe - Not for GD $197.00
Location: 9 Prev | Next Part: 141246 *Qty: 1 Delivery pipe from pump -Cabriolet - Not for GD $168.63
Location: 9 Prev | Next Part: 138892 *Qty: 1 Delivery pipe from pump -Valid for GD $148.33
Location: 10 Prev | Next Part: 108031 *Qty: 1 Protection pipe $47.86
Location: 11 Prev | Next Part: 167002 *Qty: 1 Oil tank $143.00
Location: 12 Prev | Next Part: 143638 *Qty: 1 Tank fastening bracket $9.45
Location: 13 Prev | Next Part: 16104411 *Qty: 1 Nut $0.90
Location: 14 Prev | Next Part: 14496501 *Qty: 1 Washer $0.90
Location: 15 Prev | Next Part: 138880 *Qty: 1 Delivery pipe on pump Call
Location: 16 Prev | Next Part: 10261060 *Qty: 1 Gasket $0.90
Location: 17 Prev | Next Part: 139376 *Qty: 1 Pressure switch -Valid for M. 2.5 $47.46
Location: 18 Prev | Next Part: 10185111 *Qty: 1 Pipe union $5.69
Location: 19 Prev | Next Part: 10280060 *Qty: 2 Gasket $0.90
Location: 20 Prev | Next Part: 139511 *Qty: 1 Hydraulic servo-control pump with bracket Call
Location: 21 Prev | Next Part: 139507 *Qty: 1 Front bracket -Not as spare parts -With assembly 139511 Call
Location: 22 Prev | Next Part: 139426 *Qty: 0 Description not available Call
Location: 23 Prev | Next Part: 13550401 *Qty: 2 Washer $0.90
Location: 24 Prev | Next Part: 102742 *Qty: 2 Nut $0.90
Location: 25 Prev | Next Part: 140424 *Qty: 1 Anti-heat panel $223.62
Location: 26 Prev | Next Part: 10979421 *Qty: 1 Screw $0.90
Location: 27 Prev | Next Part: 10902011 *Qty: 1 Screw $9.24
Location: 28 Prev | Next Part: 11197771 *Qty: 2 Washer Superseded
Location: 29 Prev | Next Part: 137436 *Qty: 1 Pump pulley $401.87
Location: 30 Prev | Next Part: 16043124 *Qty: 3 Screw $0.90
Location: 31 Prev | Next Part: 11193879 *Qty: 3 Washer Call
Location: 32 Prev | Next Part: 139350 *Qty: 1 Non flexible pipe connecting pump to tank $57.97
Location: 33 Prev | Next Part: 10184411 *Qty: 1 Pipe union $75.92
Location: 34 Prev | Next Part: 145192 *Qty: 2 Gasket $10.14
Location: 35 Prev | Next Part: 140370 *Qty: 1 Tank-pump connection rubber pipe Call
Location: 36 Prev | Next Part: 13000390 *Qty: 2 Clamp $0.90
Location: 37 Prev | Next Part: 139595 *Qty: 2 Solenoid valve for hydraulic servo-control $20.30
Location: 38 Prev | Next Part: 139596 *Qty: 1 R.H. bracket $8.76
Location: 39 Prev | Next Part: 139597 *Qty: 1 L.H. bracket $7.18
Location: 40 Prev | Next Part: 14496424 *Qty: 4 Washer Superseded
Location: 41 Prev | Next Part: 102948 *Qty: 4 Nut $0.90
Location: 42 Prev | Next Part: 141235 *Qty: 4 Pipe on solenoid valve $11.02
Location: 43 Prev | Next Part: 16043834 *Qty: 1 Screw $0.90
Location: 44 Prev | Next Part: 11193879 *Qty: 1 Washer Call
Location: 45 Prev | Next Part: 16104411 *Qty: 1 Nut $0.90
Location: 46 Prev | Next Part: 14496501 *Qty: 1 Washer $0.90
Location: 47 Prev | Next Part: 105550 *Qty: 1 Clamp $2.13
Location: 48 Prev | Next Part: 139965 *Qty: 2 Spring $0.90
Location: 49 Prev | Next Part: 10441690 *Qty: 1 Bracket $0.90
Location: 50 Prev | Next Part: 102741 *Qty: 1 Nut $0.90
Location: 51 Prev | Next Part: 10300540 *Qty: 1 Cap -Valid for M. 2.7- $2.44

* Quantity shown indicates the number of pieces used in the diagram.
