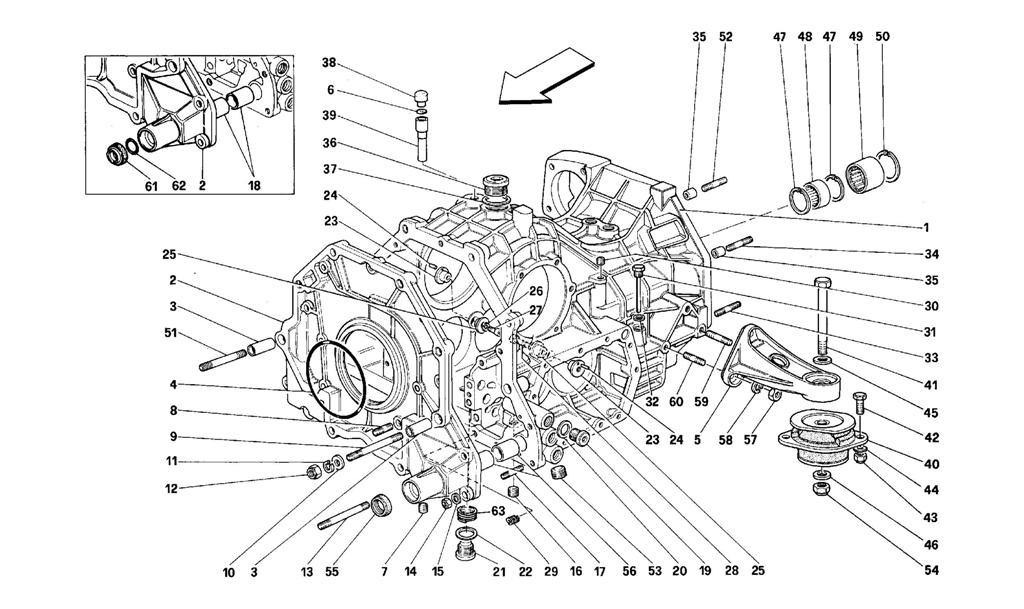

GEARBOX HOUSING AND INTERM. CASING -VALID FOR CARS WITH 4P

Go to Split View

GEARBOX HOUSING AND INTERM. CASING -VALID FOR CARS WITH 4P

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 143563 *Qty: 1 Gearchange box and differential gear complete -Valid for F.E. $2,291.40
Location: - Prev | Next Part: 149584 *Qty: 1 Complete intermediate body -Valid from gearbox No. 181 -Valid for CH - Valid for F.E. -Valid afte $1,289.61
Location: - Prev | Next Part: 140812 *Qty: 1 Gearchange box and differential gear -Not for gearbox with flange -Part. 12 Draw. 37 -Not suppli Call
Location: 1 Prev | Next Part: 149584 *Qty: 0 INTERM BODY $1,289.61
Location: 1 Prev | Next Part: 146950 *Qty: 0 BODY Call
Location: 3 Prev | Next Part: 131749 *Qty: 2 Dowel $5.83
Location: 4 Prev | Next Part: 131736 *Qty: 1 Seal ring $5.66
Location: 5 Prev | Next Part: 142757 *Qty: 1 Gear-case lefthand securing support $974.48
Location: 5 Prev | Next Part: 142756 *Qty: 1 Gear-case righthand securing support $974.48
Location: 6 Prev | Next Part: 13415400 *Qty: 1 Oil deflector disc $0.90
Location: 7 Prev | Next Part: 10269550 *Qty: 1 Plug $0.90
Location: 8 Prev | Next Part: 13543124 *Qty: 1 Stud bolt $0.99
Location: 9 Prev | Next Part: 13547535 *Qty: 2 Stud bolt $0.99
Location: 10 Prev | Next Part: 14496621 *Qty: 2 Washer $0.90
Location: 11 Prev | Next Part: 127497 *Qty: 2 Washer $0.90
Location: 12 Prev | Next Part: 133988 *Qty: 2 Nut $0.90
Location: 13 Prev | Next Part: 13544524 *Qty: 1 Stud bolt $45.00
Location: 14 Prev | Next Part: 133989 *Qty: 17 Nut $0.90
Location: 15 Prev | Next Part: 12601374 *Qty: 21 Washer $0.90
Location: 16 Prev | Next Part: 10269550 *Qty: 2 Plug $0.90
Location: 17 Prev | Next Part: 13543524 *Qty: 16 Stud bolt $0.96
Location: 18 Prev | Next Part: 112153 *Qty: 2 Bush -Valid till gearbox No. 104 $4.54
Location: 19 Prev | Next Part: 10273140 *Qty: 3 Plug $3.36
Location: 20 Prev | Next Part: 10259960 *Qty: 3 Gasket $0.90
Location: 21 Prev | Next Part: 104280 *Qty: 1 Plug $6.54
Location: 22 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 23 Prev | Next Part: 131756 *Qty: 2 Threaded bush $35.31
Location: 24 Prev | Next Part: 14159470 *Qty: 2 Pin $6.84
Location: 25 Prev | Next Part: 131757 *Qty: 2 Bush $14.33
Location: 26 Prev | Next Part: 10569273 *Qty: 3 Washer $0.90
Location: 27 Prev | Next Part: 14305221 *Qty: 2 Screw $0.90
Location: 28 Prev | Next Part: 14305327 *Qty: 1 Screw $1.24
Location: 29 Prev | Next Part: 13526170 *Qty: 2 Heli-coil $6.47
Location: 30 Prev | Next Part: 14326050 *Qty: 3 Plug $1.72
Location: 31 Prev | Next Part: 140201 *Qty: 1 Oil level rod Call
Location: 32 Prev | Next Part: 10261060 *Qty: 1 Gasket $0.90
Location: 33 Prev | Next Part: 13543424 *Qty: 4 Stud bolt $0.90
Location: 34 Prev | Next Part: 13543721 *Qty: 1 Stud bolt $0.90
Location: 35 Prev | Next Part: 100041 *Qty: 2 Dowel $9.31
Location: 36 Prev | Next Part: 10276140 *Qty: 1 Plug $41.17
Location: 37 Prev | Next Part: 10265060 *Qty: 1 Gasket $0.90
Location: 38 Prev | Next Part: 13414691 *Qty: 1 Breather $15.57
Location: 39 Prev | Next Part: 142873 *Qty: 1 Brather extension $5.88
Location: 40 Prev | Next Part: 142753 *Qty: 2 Gearchange support pad Call
Location: 41 Prev | Next Part: 15971821 *Qty: 2 Screw $1.65
Location: 42 Prev | Next Part: 16043431 *Qty: 4 Screw $0.90
Location: 43 Prev | Next Part: 16104425 *Qty: 4 Nut $0.90
Location: 44 Prev | Next Part: 14496501 *Qty: 4 Washer $0.90
Location: 45 Prev | Next Part: 12646801 *Qty: 2 Washer $1.65
Location: 46 Prev | Next Part: 169112 *Qty: 2 Washer $0.90
Location: 47 Prev | Next Part: 131958 *Qty: 2 Bearing seal ring $0.90
Location: 48 Prev | Next Part: 131049 *Qty: 1 Bearing for driving shaft $21.03
Location: 49 Prev | Next Part: 131050 *Qty: 1 Bearing for clutch shaft $55.88
Location: 50 Prev | Next Part: 103096 *Qty: 1 Bearing seal ring $2.84
Location: 51 Prev | Next Part: 13415400 *Qty: 1 Disc $0.90
Location: 52 Prev | Next Part: 13543721 *Qty: 1 Stud bolt $0.90
Location: 53 Prev | Next Part: 14326050 *Qty: 1 Plug $1.72
Location: 54 Prev | Next Part: 102742 *Qty: 2 Nut $0.90
Location: 55 Prev | Next Part: 146306 *Qty: 1 Gasket -Valid from gearbox No. 105 $2.62
Location: 56 Prev | Next Part: 149907 *Qty: 2 Bush -Valid from gearbox No. 105 $4.42
Location: 57 Prev | Next Part: 133988 *Qty: 6 Nut $0.90
Location: 58 Prev | Next Part: 10569479 *Qty: 6 Washer $0.90
Location: 59 Prev | Next Part: 13546621 *Qty: 1 Stud bolt for support and drainage block $5.38
Location: 60 Prev | Next Part: 13546224 *Qty: 5 Stud $19.09
Location: 61 Prev | Next Part: 131886 *Qty: 1 Gasket -Valid till gearbox No. 104 $18.32
Location: 62 Prev | Next Part: 105140 *Qty: 1 Seal ring -Valid till gearbox No. 104 $3.75
Location: 63 Prev | Next Part: 112254 *Qty: 1 Heli-coil $5.06

* Quantity shown indicates the number of pieces used in the diagram.
