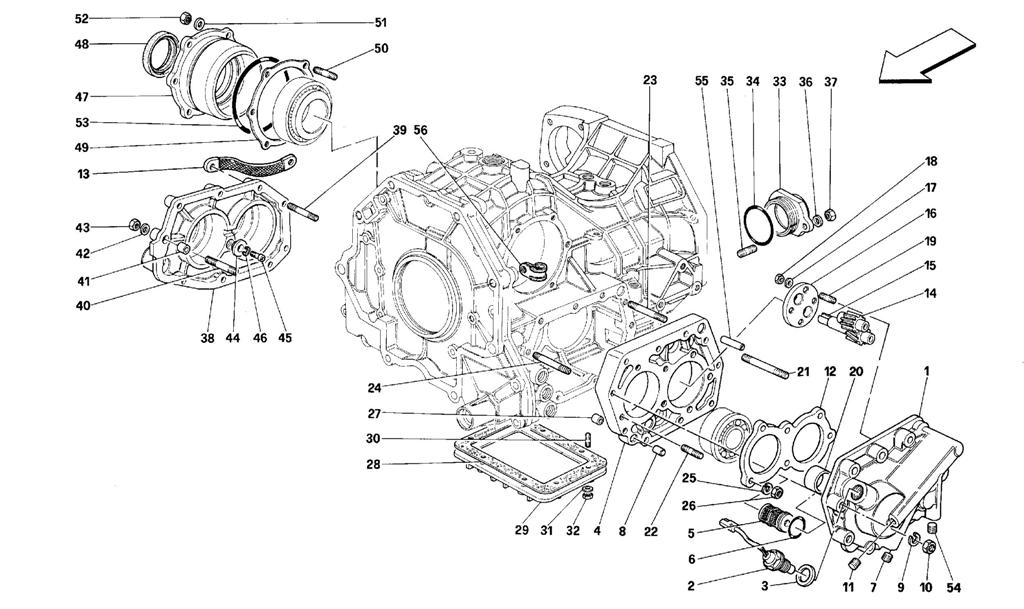

GEARBOX COVERS -VALID FOR CARS WITH 4P

Go to Split View

GEARBOX COVERS -VALID FOR CARS WITH 4P

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 153149 *Qty: 1 L.H. Side cover -Valid for flange 145272 $626.54
Location: 1 Prev | Next Part: 135739 *Qty: 1 L.H. Side cover -Not for flange 145272 -Not as spare part $713.15
Location: 2 Prev | Next Part: 116987 *Qty: 1 Pulses detector $272.49
Location: 3 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 4 Prev | Next Part: 150055 *Qty: 1 L.H. side intermediate body -Valid for cover with flange 145272 $1,046.80
Location: 4 Prev | Next Part: 139819 *Qty: 1 L.H. side intermediate body -Valid for cover without flange 145272 -Not as spare part $347.25
Location: 5 Prev | Next Part: 115538 *Qty: 1 Filter Call
Location: 6 Prev | Next Part: 101034 *Qty: 1 Gasket $1.72
Location: 7 Prev | Next Part: 10275550 *Qty: 1 Plug $1.46
Location: 8 Prev | Next Part: 125717 *Qty: 1 Dowel $4.04
Location: 9 Prev | Next Part: 12601374 *Qty: 10 Washer $0.90
Location: 10 Prev | Next Part: 133989 *Qty: 10 Nut $0.90
Location: 11 Prev | Next Part: 14326050 *Qty: 1 Plug $1.72
Location: 12 Prev | Next Part: 145272 *Qty: 1 Flange $153.75
Location: 13 Prev | Next Part: 155073 *Qty: 1 Motor mass plait -Valid after stock exhaustion of 115668 $13.84
Location: 14 Prev | Next Part: 109723 *Qty: 1 Driven gear $611.61
Location: 15 Prev | Next Part: 109722 *Qty: 1 Leader gear $395.90
Location: 16 Prev | Next Part: 121962 *Qty: 1 Oil pump cover $216.81
Location: 17 Prev | Next Part: 12601274 *Qty: 4 Washer $0.90
Location: 18 Prev | Next Part: 15896214 *Qty: 4 Nut $0.90
Location: 19 Prev | Next Part: 11500020 *Qty: 4 Stud bolt $0.90
Location: 20 Prev | Next Part: 113088 *Qty: 1 Seal ring seat $139.62
Location: 21 Prev | Next Part: 13543921 *Qty: 1 Stud bolt -Valid for flangeless cover 145272 $1.01
Location: 21 Prev | Next Part: 13544224 *Qty: 2 Stud bolt -Valid for cover with flange 145272 $11.41
Location: 22 Prev | Next Part: 13543221 *Qty: 7 Flange seal stud bolt145272 $0.90
Location: 22 Prev | Next Part: 13543524 *Qty: 4 Stud bolt -Valid for flangeless cover 145272 $0.96
Location: 23 Prev | Next Part: 13544024 *Qty: 2 Stud bolt -Valid for flangeless cover 145272 $0.90
Location: 24 Prev | Next Part: 13543721 *Qty: 6 Stud bolt -Valid for flangeless cover 145272 $0.90
Location: 24 Prev | Next Part: 13544321 *Qty: 8 Stud bolt -Valid for cover with flange 145272 Superseded
Location: 25 Prev | Next Part: 127496 *Qty: 7 Washer -Valid for cover with flange 145272 $0.90
Location: 25 Prev | Next Part: 12601374 *Qty: 6 Washer -Valid for flangeless cover 145272 $0.90
Location: 26 Prev | Next Part: 133989 *Qty: 7 Nut -Valid for cover with flange 145272 $0.90
Location: 27 Prev | Next Part: 100041 *Qty: 1 Dowel $9.31
Location: 28 Prev | Next Part: 177720 *Qty: 1 Gasket $22.07
Location: 29 Prev | Next Part: 135736 *Qty: 1 Lower cover $23.09
Location: 30 Prev | Next Part: 13540820 *Qty: 8 Stud bolt Superseded
Location: 31 Prev | Next Part: 12601274 *Qty: 8 Washer $0.90
Location: 32 Prev | Next Part: 15896214 *Qty: 8 Nut $0.90
Location: 33 Prev | Next Part: 139699 *Qty: 1 Oil seal cover $44.47
Location: 34 Prev | Next Part: 131747 *Qty: 1 Seal ring $1.84
Location: 35 Prev | Next Part: 13543221 *Qty: 2 Stud bolt $0.90
Location: 36 Prev | Next Part: 12601374 *Qty: 2 Washer $0.90
Location: 37 Prev | Next Part: 133989 *Qty: 2 Nut $0.90
Location: 38 Prev | Next Part: 135741 *Qty: 1 R.H. side cover $159.79
Location: 39 Prev | Next Part: 13543624 *Qty: 6 Stud bolt $0.90
Location: 40 Prev | Next Part: 13543721 *Qty: 3 Stud bolt $0.90
Location: 41 Prev | Next Part: 100041 *Qty: 2 Dowel $9.31
Location: 42 Prev | Next Part: 12601374 *Qty: 9 Washer $0.90
Location: 43 Prev | Next Part: 133989 *Qty: 9 Nut $0.90
Location: 44 Prev | Next Part: 131757 *Qty: 1 Bush $14.33
Location: 45 Prev | Next Part: 14305224 *Qty: 1 Screw $0.90
Location: 46 Prev | Next Part: 10569273 *Qty: 1 Washer $0.90
Location: 47 Prev | Next Part: 143448 *Qty: 2 Differential sid cover $127.88
Location: 48 Prev | Next Part: 141509 *Qty: 1 L.H. seal ring $121.20
Location: 48 Prev | Next Part: 133628 *Qty: 1 R.H. seal ring $121.20
Location: 49 Prev | Next Part: 132135 *Qty: 2 Thrust -Thick. mm. 1,3- $231.82
Location: 49 Prev | Next Part: 132136 *Qty: 0 Thrust -Thick. mm. 1,4- $31.19
Location: 49 Prev | Next Part: 132137 *Qty: 0 Thrust -Thick. mm. 1,5- $29.11
Location: 49 Prev | Next Part: 132138 *Qty: 0 Thrust -Thick. mm. 1,6- $29.58
Location: 49 Prev | Next Part: 132139 *Qty: 0 Thrust -Thick. mm. 1,7- $31.19
Location: 49 Prev | Next Part: 132140 *Qty: 0 Thrust -Thick. mm. 1,8- $31.19
Location: 49 Prev | Next Part: 145457 *Qty: 0 Thrust -Thick. mm. 1,45- $44.56
Location: 49 Prev | Next Part: 132141 *Qty: 0 Thrust -Thick. mm. 1,9- $20.83
Location: 49 Prev | Next Part: 145458 *Qty: 0 Thrust -Thick. mm. 1,55- $29.60
Location: 49 Prev | Next Part: 145459 *Qty: 0 Thrust -Thick. mm. 1,65- $31.05
Location: 50 Prev | Next Part: 13543324 *Qty: 12 Stud bolt $4.04
Location: 51 Prev | Next Part: 12601374 *Qty: 12 Washer $0.90
Location: 52 Prev | Next Part: 133989 *Qty: 12 Nut $0.90
Location: 53 Prev | Next Part: 139453 *Qty: 2 Seal ring $3.41
Location: 54 Prev | Next Part: 14326150 *Qty: 1 Plug $0.90
Location: 55 Prev | Next Part: 131746 *Qty: 1 Dowel $5.83
Location: 56 Prev | Next Part: 145480 *Qty: 1 Bracket -Not for F.E.- $1.87
Location: 56 Prev | Next Part: 145661 *Qty: 1 Bracket -Valid for F.E.- $5.15

* Quantity shown indicates the number of pieces used in the diagram.
