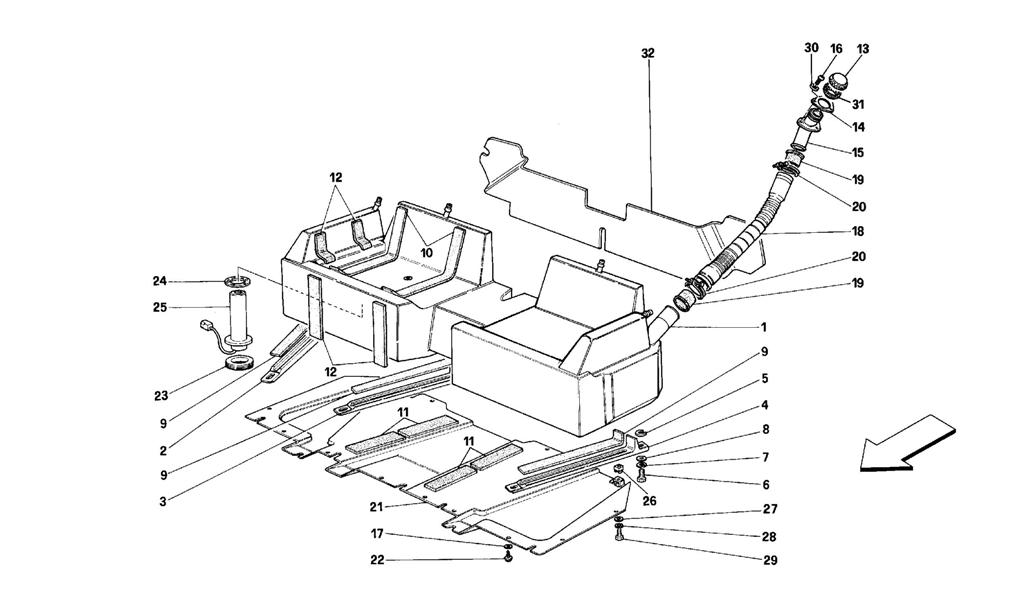

FUEL TANK -CABRIOLET - FOR CARS WITH CATALYSTS AND DE-CATALYSTS-

Go to Split View

FUEL TANK -CABRIOLET - FOR CARS WITH CATALYSTS AND DE-CATALYSTS-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 133966 *Qty: 1 Gasoline tank $5,338.73
Location: 2 Prev | Next Part: 139177 *Qty: 1 R.H. bracket $46.41
Location: 3 Prev | Next Part: 139178 *Qty: 1 Central bracket $64.98
Location: 4 Prev | Next Part: 139179 *Qty: 1 L.H. bracket $46.58
Location: 5 Prev | Next Part: 140746 *Qty: 0 Washer -Thick. 3- -For possible assembly $0.90
Location: 5 Prev | Next Part: 140747 *Qty: 0 Washer -Thick. 4- -For possible assembly $63.40
Location: 5 Prev | Next Part: 140745 *Qty: 0 Washer -Thick. 2- -For possible assembly $1.65
Location: 6 Prev | Next Part: 11306921 *Qty: 6 Screw $0.90
Location: 7 Prev | Next Part: 127497 *Qty: 6 Washer $0.90
Location: 8 Prev | Next Part: 14496621 *Qty: 6 Washer $0.90
Location: 9 Prev | Next Part: 139518 *Qty: 3 Rubber spacer $6.84
Location: 10 Prev | Next Part: 141256 *Qty: 4 Rubber spacer $6.84
Location: 11 Prev | Next Part: 115330 *Qty: 10 Rubber spacer $11.14
Location: 12 Prev | Next Part: 139504 *Qty: 8 Rubber spacer $3.69
Location: 13 Prev | Next Part: 180320 *Qty: 1 Plug $973.78
Location: 14 Prev | Next Part: 123897 *Qty: 1 Gasket $69.56
Location: 15 Prev | Next Part: 140931 *Qty: 1 Union -Not for de-catalyst cars $396.26
Location: 15 Prev | Next Part: 149717 *Qty: 1 Union -Valid for de-catalyst cars $446.70
Location: 16 Prev | Next Part: 14064511 *Qty: 3 Screw $1.19
Location: 17 Prev | Next Part: 14497701 *Qty: 8 Washer $0.90
Location: 18 Prev | Next Part: 141032 *Qty: 1 Filler connection pipe $0.35
Location: 19 Prev | Next Part: 141033 *Qty: 2 Gasket $24.08
Location: 20 Prev | Next Part: 12182290 *Qty: 2 Clamp $0.90
Location: 21 Prev | Next Part: 140361 *Qty: 1 Tank guard plate $2,708.67
Location: 22 Prev | Next Part: 15829001 *Qty: 8 Screw $0.90
Location: 23 Prev | Next Part: 121435 *Qty: 1 Ring nut $156.51
Location: 24 Prev | Next Part: 154802 *Qty: 1 Gasket $32.92
Location: 25 Prev | Next Part: 137419 *Qty: 1 Level gauge switch Call
Location: 26 Prev | Next Part: 60758600 *Qty: 2 Nut with cage $0.90
Location: 27 Prev | Next Part: 127494 *Qty: 12 Washer $0.90
Location: 28 Prev | Next Part: 12643724 *Qty: 12 Washer $0.90
Location: 29 Prev | Next Part: 10902221 *Qty: 12 Screw $1.31
Location: 30 Prev | Next Part: 12601274 *Qty: 3 Washer $0.90
Location: 31 Prev | Next Part: 180585 *Qty: 1 Gasket for plug $92.62
Location: 32 Prev | Next Part: 146445 *Qty: 1 Tank-engine shield -Valid for J $867.99

* Quantity shown indicates the number of pieces used in the diagram.
