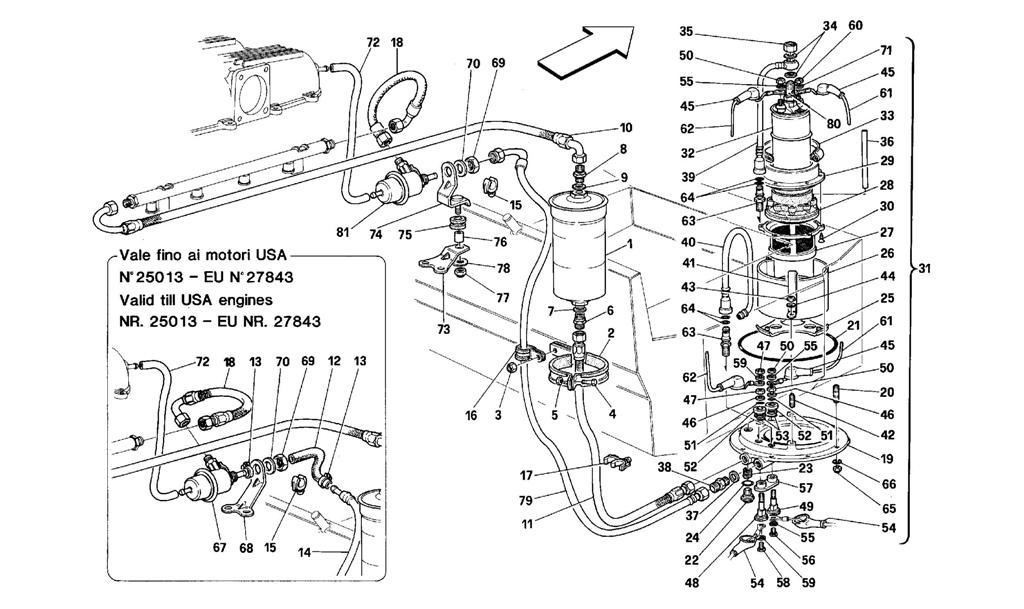

FUEL PUMP AND PIPES

Go to Split View

FUEL PUMP AND PIPES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 117792 *Qty: 2 Fuel filter $28.00
Location: 2 Prev | Next Part: 126352 *Qty: 2 Bracket $14.00
Location: 3 Prev | Next Part: 16104411 *Qty: 2 Nut $0.90
Location: 4 Prev | Next Part: 10902424 *Qty: 2 Screw $0.90
Location: 5 Prev | Next Part: 102741 *Qty: 2 Nut $0.90
Location: 6 Prev | Next Part: 109889 *Qty: 2 Fuel inlet union Call
Location: 7 Prev | Next Part: 10280060 *Qty: 2 Gasket $0.90
Location: 8 Prev | Next Part: 109797 *Qty: 2 Fuel outlet union $46.44
Location: 9 Prev | Next Part: 113910 *Qty: 2 Gasket Superseded
Location: 10 Prev | Next Part: 143784 *Qty: 1 Fuel pipe from R.H. filter to R.H. flute - Cabriolet $759.43
Location: 10 Prev | Next Part: 143785 *Qty: 1 Fuel pipe from L.H. filter to L.H. flute - Cabriolet $759.43
Location: 10 Prev | Next Part: 143788 *Qty: 1 Fuel pipe from R.H. filter to R.H. flute - Coupe $650.01
Location: 10 Prev | Next Part: 143789 *Qty: 1 Fuel pipe from L.H. filter to L.H. flute - Coupe $650.01
Location: 11 Prev | Next Part: 143790 *Qty: 2 Fuel pipe from pump to filter -Coupe $248.48
Location: 11 Prev | Next Part: 143792 *Qty: 2 Fuel pipe from pump to filter -Cabriolet $300.32
Location: 12 Prev | Next Part: 139932 *Qty: 2 Sleeve $20.63
Location: 13 Prev | Next Part: 13000190 *Qty: 4 Clamp $0.90
Location: 14 Prev | Next Part: 139472 *Qty: 2 Fuel pipe from pressure adjuster to pump $153.57
Location: 15 Prev | Next Part: 14574287 *Qty: 2 Spring $14.36
Location: 16 Prev | Next Part: 10450290 *Qty: 2 Bracket $0.90
Location: 17 Prev | Next Part: 139966 *Qty: 2 Spring $0.90
Location: 18 Prev | Next Part: 149812 *Qty: 2 Fuel pipe from flute to pressure adjuster $469.13
Location: 19 Prev | Next Part: 139454 *Qty: 2 Fuel pump cover $736.71
Location: 20 Prev | Next Part: 11500221 *Qty: 16 Stud bolt $0.90
Location: 21 Prev | Next Part: 138453 *Qty: 2 Gasket $50.45
Location: 22 Prev | Next Part: 134713 *Qty: 2 Cap $16.28
Location: 23 Prev | Next Part: 103388 *Qty: 2 Heli-coil $17.15
Location: 24 Prev | Next Part: 134233 *Qty: 2 Gasket $6.52
Location: 25 Prev | Next Part: 126807 *Qty: 2 Chamber silent-block $35.50
Location: 26 Prev | Next Part: 126806 *Qty: 2 Fuel collection chamber Call
Location: 27 Prev | Next Part: 126808 *Qty: 2 Filter inside chamber $46.43
Location: 28 Prev | Next Part: 126809 *Qty: 2 Gasket Call
Location: 29 Prev | Next Part: 126810 *Qty: 2 Chamber filter cover Call
Location: 30 Prev | Next Part: 15671101 *Qty: 12 Screw $6.37
Location: 31 Prev | Next Part: 146663 *Qty: 2 Complete fuel pump $1,125.41
Location: 32 Prev | Next Part: 140317 *Qty: 2 Fuel pump Call
Location: 33 Prev | Next Part: 13000890 *Qty: 2 Clamp $1.18
Location: 34 Prev | Next Part: 11270160 *Qty: 4 Gasket $2.08
Location: 35 Prev | Next Part: 171752 *Qty: 2 Cap $25.24
Location: 36 Prev | Next Part: 139205 *Qty: 2 Exhaust pipe $49.01
Location: 37 Prev | Next Part: 113910 *Qty: 4 Gasket Superseded
Location: 38 Prev | Next Part: 109797 *Qty: 4 Union for delivery and recover pipes $46.44
Location: 39 Prev | Next Part: 133967 *Qty: 2 Feeding pipe from pump to cover Call
Location: 40 Prev | Next Part: 133968 *Qty: 2 Recover pipe from cover to chamber $106.05
Location: 41 Prev | Next Part: 137577 *Qty: 4 Bracket $2.18
Location: 42 Prev | Next Part: 11000921 *Qty: 4 Stud bolt Call
Location: 43 Prev | Next Part: 13677911 *Qty: 4 Nut Call
Location: 44 Prev | Next Part: 10730021 *Qty: 4 Washer $0.90
Location: 45 Prev | Next Part: 130146 *Qty: 8 Cap $10.09
Location: 46 Prev | Next Part: 10519424 *Qty: 4 Washer Call
Location: 47 Prev | Next Part: 15896214 *Qty: 4 Nut $0.90
Location: 48 Prev | Next Part: 137610 *Qty: 2 Pin $51.14
Location: 49 Prev | Next Part: 137611 *Qty: 2 Pin $62.75
Location: 50 Prev | Next Part: 15896470 *Qty: 6 Nut $0.90
Location: 51 Prev | Next Part: 134701 *Qty: 4 Gasket $0.90
Location: 52 Prev | Next Part: 134672 *Qty: 4 Bush Call
Location: 53 Prev | Next Part: 134705 *Qty: 4 Gasket $0.90
Location: 54 Prev | Next Part: 137612 *Qty: 4 Cap $5.59
Location: 55 Prev | Next Part: 149951 *Qty: 6 Washer Superseded
Location: 56 Prev | Next Part: 10856821 *Qty: 2 Screw $0.90
Location: 57 Prev | Next Part: 137613 *Qty: 2 External flange $1.29
Location: 58 Prev | Next Part: 11635721 *Qty: 2 Screw $0.90
Location: 59 Prev | Next Part: 10615470 *Qty: 4 Washer Call
Location: 60 Prev | Next Part: 10794011 *Qty: 2 Nut $0.90
Location: 61 Prev | Next Part: 139519 *Qty: 2 Positive cable $74.55
Location: 62 Prev | Next Part: 146660 *Qty: 2 Negative cable $82.38
Location: 63 Prev | Next Part: 133950 *Qty: 4 Union $67.64
Location: 64 Prev | Next Part: 133956 *Qty: 8 Gasket $1.22
Location: 65 Prev | Next Part: 102741 *Qty: 16 Nut $0.90
Location: 66 Prev | Next Part: 12601274 *Qty: 16 Washer $0.90
Location: 67 Prev | Next Part: 137960 *Qty: 2 Fuel pressure adjuster $306.00
Location: 68 Prev | Next Part: 139427 *Qty: 1 R.H. bracket $9.64
Location: 68 Prev | Next Part: 139428 *Qty: 1 L.H. bracket $7.70
Location: 69 Prev | Next Part: 101413 *Qty: 2 Nut $25.03
Location: 70 Prev | Next Part: 12601774 *Qty: 2 Washer $0.90
Location: 71 Prev | Next Part: 10615270 *Qty: 2 Washer $0.90
Location: 72 Prev | Next Part: 115042 *Qty: 2 Pressure-cover adjusting pipe $30.58
Location: 73 Prev | Next Part: 148124 *Qty: 2 Pressure regulator lower bracket $67.42
Location: 74 Prev | Next Part: 148125 *Qty: 1 Pressure regulator upper righthand bracket $27.66
Location: 74 Prev | Next Part: 148126 *Qty: 1 Ressure reulator upper lefthand bracket $34.86
Location: 75 Prev | Next Part: 103549 *Qty: 2 Cable grommet $0.90
Location: 76 Prev | Next Part: 103550 *Qty: 2 Spacer $2.55
Location: 77 Prev | Next Part: 102741 *Qty: 2 Nut $0.90
Location: 78 Prev | Next Part: 106744 *Qty: 2 Washer $0.90
Location: 79 Prev | Next Part: 147358 *Qty: 1 L.H. fuel pipe from pump to pressure adjuster $276.66
Location: 79 Prev | Next Part: 147357 *Qty: 1 R.H. fuel pipe from pump to pressure adjuster $103.49
Location: 80 Prev | Next Part: 120098 *Qty: 2 Not return valve $168.79
Location: 81 Prev | Next Part: 147281 *Qty: 2 Regulator Call

* Quantity shown indicates the number of pieces used in the diagram.
