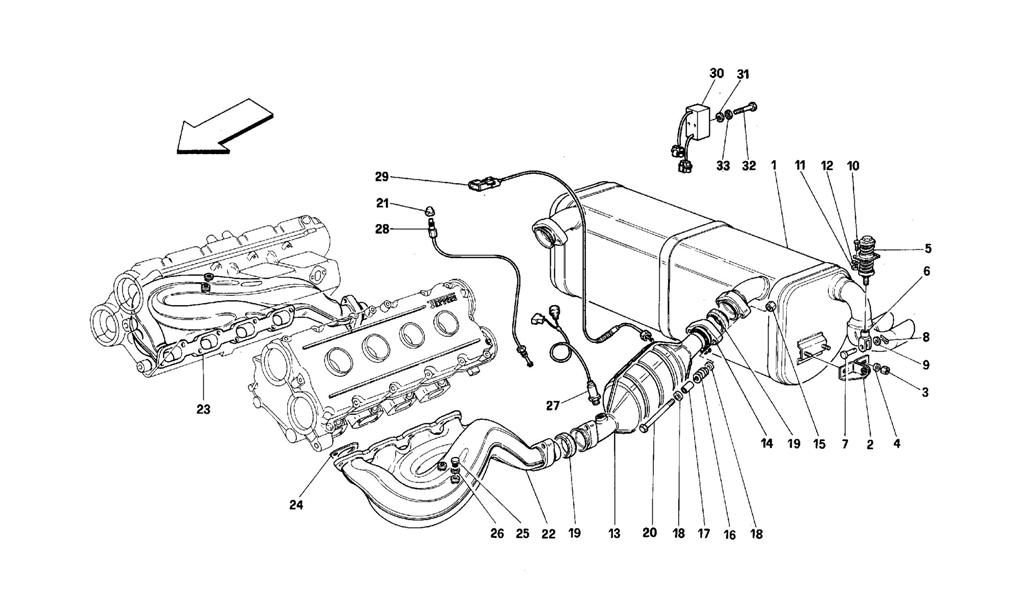

EXHAUST SYSTEM -FOR CARS WITH CATALYSTS AND 77DB

Go to Split View

EXHAUST SYSTEM -FOR CARS WITH CATALYSTS AND 77DB

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 138887 *Qty: 1 Exhaust silencer $1,503.02
Location: 2 Prev | Next Part: 139329 *Qty: 2 Bracket for silencer $31.59
Location: 3 Prev | Next Part: 114748 *Qty: 4 Nut $0.90
Location: 4 Prev | Next Part: 10519624 *Qty: 4 Washer $0.90
Location: 5 Prev | Next Part: 139180 *Qty: 2 Pad Call
Location: 6 Prev | Next Part: 10007871 *Qty: 2 Fork $19.78
Location: 7 Prev | Next Part: 10050814 *Qty: 2 Pin $3.29
Location: 8 Prev | Next Part: 10734301 *Qty: 2 Split pin $0.90
Location: 9 Prev | Next Part: 10519624 *Qty: 2 Washer $0.90
Location: 10 Prev | Next Part: 10977624 *Qty: 8 Screw $0.90
Location: 11 Prev | Next Part: 15896470 *Qty: 8 Nut $0.90
Location: 12 Prev | Next Part: 127493 *Qty: 8 Washer Superseded
Location: 13 Prev | Next Part: 143871 *Qty: 2 Pre-muffler -Valid for not catalyst cars- -With pipes for CO suction $458.45
Location: 13 Prev | Next Part: 157640 *Qty: 1 R.H. catalyst -With anti-heat shield -Valid for catalyst cars Call
Location: 13 Prev | Next Part: 149715 *Qty: 2 Pre-muffler -Valid for de-catalyst cars -Valid for GB $468.29
Location: 13 Prev | Next Part: 151609 *Qty: 2 Pre-muffler -Valid for not catalyst cars -With lambda feeler 151667 -Not for GB $383.06
Location: 14 Prev | Next Part: 141874 *Qty: 2 Stub pipe Call
Location: 15 Prev | Next Part: 114748 *Qty: 8 Nut $0.90
Location: 16 Prev | Next Part: 111743 *Qty: 8 Spring $16.46
Location: 17 Prev | Next Part: 114749 *Qty: 8 Spacer $1.25
Location: 18 Prev | Next Part: 128010 *Qty: 16 Washer $3.77
Location: 19 Prev | Next Part: 154984 *Qty: 4 Gasket $10.62
Location: 20 Prev | Next Part: 137431 *Qty: 8 Screw $12.20
Location: 21 Prev | Next Part: 150595 *Qty: 2 Nut $1.17
Location: 22 Prev | Next Part: 136276 *Qty: 1 L.H. exhaust inlet duct -With plugs for CO suction $1,514.57
Location: 23 Prev | Next Part: 136275 *Qty: 1 R.H. exhaust inlet duct -With plugs for CO suction $1,514.57
Location: 23 Prev | Next Part: 149947 *Qty: 1 R.H. exhaust inlet duct..-Without plugs for CO suction -Valid for USA-CH-J Call
Location: 24 Prev | Next Part: 138076 *Qty: 8 Gasket $12.52
Location: 25 Prev | Next Part: 110860 *Qty: 8 Plug Call
Location: 26 Prev | Next Part: 10298460 *Qty: 8 Gasket $0.90
Location: 27 Prev | Next Part: 142514 *Qty: 2 Lambda feeler -Valid for M. 2.7 -Valid for ignition/supply control system 142519 ref. BOSCH 0261 $303.25
Location: 27 Prev | Next Part: 121515 *Qty: 2 Lambda feeler -Not for M. 2.7 $389.69
Location: 27 Prev | Next Part: 146650 *Qty: 2 Lambda feeler -Valid for M. 2.7 -Valid for ignition/supply control system 147176 ref. BOSCH 0261 $125.50
Location: 27 Prev | Next Part: 151667 *Qty: 2 Lambda feeler -Valid for not catalyst cars with pre-muffler 151609 $508.54
Location: 28 Prev | Next Part: 144515 *Qty: 1 R.H. CO suction pipe -Valid for 77 DB versions $133.31
Location: 28 Prev | Next Part: 144516 *Qty: 1 L.H. CO suction pipe -Valid for 77 DB versions $155.20
Location: 29 Prev | Next Part: 141038 *Qty: 2 Thermocouple $328.89
Location: 30 Prev | Next Part: 142581 *Qty: 2 Device for catalysts -Valid for M. 2.7 Call
Location: 30 Prev | Next Part: 141037 *Qty: 2 Device for catalysts -Not for M. 2.7 $419.35
Location: 31 Prev | Next Part: 14496201 *Qty: 4 Washer $0.90
Location: 32 Prev | Next Part: 15210811 *Qty: 4 Screw Call
Location: 33 Prev | Next Part: 10615279 *Qty: 4 Washer Call

* Quantity shown indicates the number of pieces used in the diagram.
