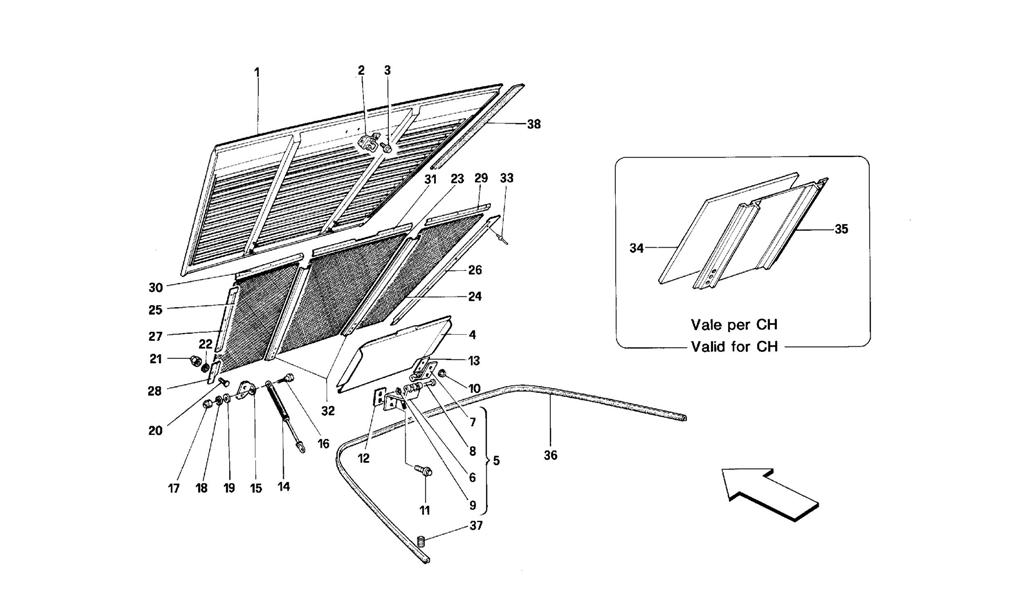

ENGINE COMPARTMENT LID -CABRIOLET-

Go to Split View

ENGINE COMPARTMENT LID -CABRIOLET-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61254300 *Qty: 1 Engine bonnet -Not for USA and AUS $1,689.18
Location: 1 Prev | Next Part: 61868700 *Qty: 1 Engine bonnet -Valid for USA and AUS $2,993.14
Location: 2 Prev | Next Part: 60702100 *Qty: 1 Catch $19.80
Location: 3 Prev | Next Part: 13836371 *Qty: 2 Screw $1.65
Location: 4 Prev | Next Part: 61810700 *Qty: 1 Water shield -Not for USA and CH $75.07
Location: 4 Prev | Next Part: 61894800 *Qty: 1 Water shield -Valid for USA- -Not for CH $85.88
Location: 5 Prev | Next Part: 61255200 *Qty: 2 Complete hinge for bonnet $39.44
Location: 6 Prev | Next Part: 61255300 *Qty: 2 Fixed hinge $24.31
Location: 7 Prev | Next Part: 61255400 *Qty: 2 Mobile hinge $37.27
Location: 8 Prev | Next Part: 40293904 *Qty: 2 Pin $196.79
Location: 9 Prev | Next Part: 11065474 *Qty: 2 Circlip $0.90
Location: 10 Prev | Next Part: 13832101 *Qty: 4 Nut $0.90
Location: 11 Prev | Next Part: 13836071 *Qty: 4 Screw $0.90
Location: 12 Prev | Next Part: 61255500 *Qty: 2 Zincfoil $8.83
Location: 13 Prev | Next Part: 61255600 *Qty: 2 Zincfoil $8.83
Location: 14 Prev | Next Part: 62380500 *Qty: 1 Rod to support bonnet $88.30
Location: 15 Prev | Next Part: 61314100 *Qty: 1 Plate to fix. rod Call
Location: 16 Prev | Next Part: 40161903 *Qty: 2 Pin to fix. rod $18.00
Location: 17 Prev | Next Part: 15896470 *Qty: 2 Nut $0.90
Location: 18 Prev | Next Part: 149951 *Qty: 2 Washer Superseded
Location: 19 Prev | Next Part: 12638124 *Qty: 2 Washer $0.90
Location: 20 Prev | Next Part: 60702800 *Qty: 20 Screw $1.29
Location: 21 Prev | Next Part: 14054048 *Qty: 20 Nut $1.28
Location: 22 Prev | Next Part: 10519377 *Qty: 20 Washer $0.90
Location: 23 Prev | Next Part: 61895000 *Qty: 1 Central grill -Valid for USA and AUS $31.18
Location: 23 Prev | Next Part: 61298900 *Qty: 1 Central grill -Not for USA and AUS $32.97
Location: 24 Prev | Next Part: 61370300 *Qty: 1 R.H. side grill $14.79
Location: 25 Prev | Next Part: 61370400 *Qty: 1 L.H. side grill $21.79
Location: 26 Prev | Next Part: 61370500 *Qty: 1 R.H. side angular $12.80
Location: 27 Prev | Next Part: 61370600 *Qty: 1 L.H. side angular $29.01
Location: 28 Prev | Next Part: 61370700 *Qty: 1 Extension for L.H. side angular $9.72
Location: 29 Prev | Next Part: 61370800 *Qty: 1 R.H. rear angular $15.30
Location: 30 Prev | Next Part: 61370900 *Qty: 1 L.H. rear angular $12.98
Location: 31 Prev | Next Part: 61371000 *Qty: 1 Rear central angular -Not for USA and AUS $17.27
Location: 31 Prev | Next Part: 61895200 *Qty: 1 Rear central angular -Valid for USA and AUS $43.58
Location: 32 Prev | Next Part: 61371100 *Qty: 1 R.H. central angular -Valid for USA and AUS $26.64
Location: 32 Prev | Next Part: 61895100 *Qty: 1 L.H. central angular -Valid for USA and AUS $26.64
Location: 33 Prev | Next Part: 60174307 *Qty: 22 Fixing rivet for angular and water shield $0.90
Location: 34 Prev | Next Part: 62832600 *Qty: 1 Insulation -Valid for CH $161.82
Location: 35 Prev | Next Part: 62832700 *Qty: 1 Shield -Valid for CH $109.27
Location: 36 Prev | Next Part: 60880600 *Qty: 1 Gasket $39.24
Location: 37 Prev | Next Part: 60568000 *Qty: 2 Stop buffer $3.06
Location: 38 Prev | Next Part: 62426500 *Qty: 1 Gasket $4.87

* Quantity shown indicates the number of pieces used in the diagram.
