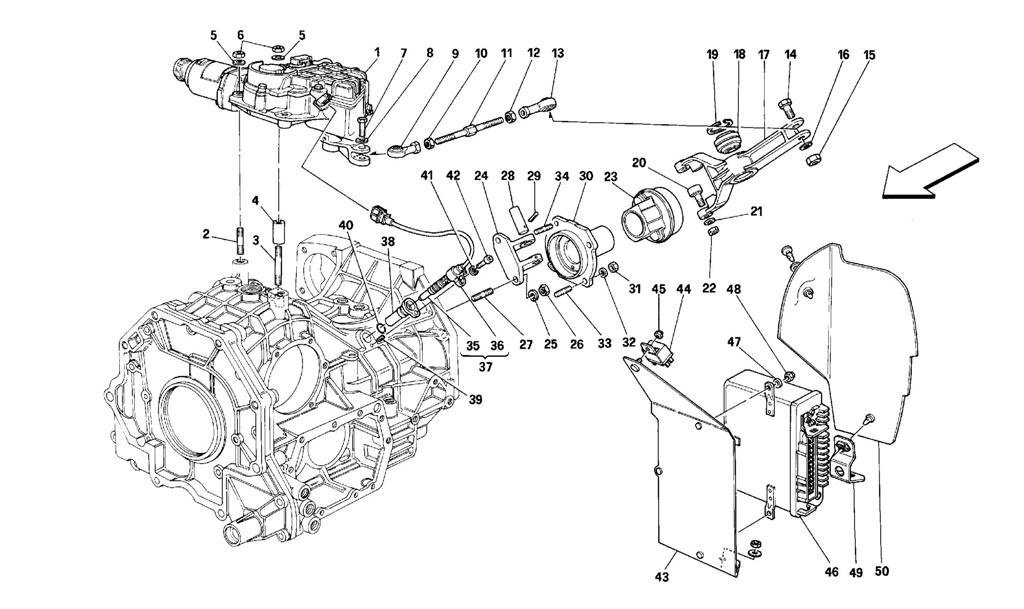

ELECTRONIC CLUTCH - CONTROLS

Go to Split View

ELECTRONIC CLUTCH - CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 150449 *Qty: 1 Clutch control actuator complete Call
Location: 2 Prev | Next Part: 13543524 *Qty: 2 Stud $0.90
Location: 3 Prev | Next Part: 13544124 *Qty: 1 Stud $0.90
Location: 4 Prev | Next Part: 141496 *Qty: 1 Spacer $3.82
Location: 5 Prev | Next Part: 12601374 *Qty: 3 Washer $0.90
Location: 6 Prev | Next Part: 133989 *Qty: 3 Nut $0.90
Location: 7 Prev | Next Part: 130926 *Qty: 1 Screw $9.31
Location: 8 Prev | Next Part: 10519624 *Qty: 1 Washer $0.90
Location: 9 Prev | Next Part: 145482 *Qty: 1 R.H. ball joint $74.17
Location: 10 Prev | Next Part: 133989 *Qty: 1 Nut $0.90
Location: 11 Prev | Next Part: 140759 *Qty: 1 Tie rod $41.49
Location: 12 Prev | Next Part: 16102111 *Qty: 1 L.H. nut $2.67
Location: 13 Prev | Next Part: 145483 *Qty: 1 L.H. ball joint $123.66
Location: 14 Prev | Next Part: 137116 *Qty: 1 Screw $6.49
Location: 15 Prev | Next Part: 150978 *Qty: 1 Nut $15.55
Location: 16 Prev | Next Part: 12601374 *Qty: 1 Washer $0.90
Location: 17 Prev | Next Part: 140751 *Qty: 1 Clutch control lever $438.64
Location: 18 Prev | Next Part: 150453 *Qty: 1 Ball joint $477.17
Location: 19 Prev | Next Part: 148407 *Qty: 1 Stop ring $0.90
Location: 20 Prev | Next Part: 144975 *Qty: 2 Roller pin $40.45
Location: 21 Prev | Next Part: 12601374 *Qty: 2 Washer $0.90
Location: 22 Prev | Next Part: 133989 *Qty: 2 Nut $0.90
Location: 23 Prev | Next Part: 141575 *Qty: 1 Bearing Call
Location: 24 Prev | Next Part: 145474 *Qty: 1 Clutch control lever support $270.55
Location: 25 Prev | Next Part: 12601374 *Qty: 2 Washer $0.90
Location: 26 Prev | Next Part: 133989 *Qty: 2 Nut $0.90
Location: 27 Prev | Next Part: 13543124 *Qty: 2 Stud $1.02
Location: 28 Prev | Next Part: 145475 *Qty: 1 Pin $39.05
Location: 29 Prev | Next Part: 14162270 *Qty: 1 Spring pin $0.90
Location: 30 Prev | Next Part: 140725 *Qty: 1 Flange Call
Location: 31 Prev | Next Part: 133989 *Qty: 4 Nut $0.90
Location: 32 Prev | Next Part: 127496 *Qty: 4 Washer $0.90
Location: 33 Prev | Next Part: 13543221 *Qty: 3 Stud $0.90
Location: 34 Prev | Next Part: 12354524 *Qty: 1 Stud $21.12
Location: 35 Prev | Next Part: 150451 *Qty: 1 Pick up $1,179.32
Location: 36 Prev | Next Part: 150451 *Qty: 1 Pick up support $1,179.32
Location: 37 Prev | Next Part: 150451 *Qty: 1 Support and pick up assy $1,179.32
Location: 38 Prev | Next Part: 140749 *Qty: 1 Pick up bush $157.24
Location: 39 Prev | Next Part: 13525470 *Qty: 1 Heli-coil $0.90
Location: 40 Prev | Next Part: 134233 *Qty: 1 O-Ring $5.38
Location: 41 Prev | Next Part: 10615470 *Qty: 1 Washer Call
Location: 42 Prev | Next Part: 14305224 *Qty: 1 Screw $0.90
Location: 43 Prev | Next Part: 144415 *Qty: 1 Control unit support plate $171.26
Location: 44 Prev | Next Part: 138954 *Qty: 1 Remote control switch $59.03
Location: 45 Prev | Next Part: 12574117 *Qty: 1 Nut $0.90
Location: 46 Prev | Next Part: 150393 *Qty: 1 Electronic clutch control unit Call
Location: 47 Prev | Next Part: 14496377 *Qty: 3 Washer $1.17
Location: 48 Prev | Next Part: 12574117 *Qty: 3 Nut $0.90
Location: 49 Prev | Next Part: 62863000 *Qty: 1 Bracket $31.18
Location: 50 Prev | Next Part: 62862100 *Qty: 1 Bulkhead for unit covering -Coupe $164.25
Location: 50 Prev | Next Part: 62862200 *Qty: 1 Bulkhead for unit covering -Cabriolet $368.26

* Quantity shown indicates the number of pieces used in the diagram.
