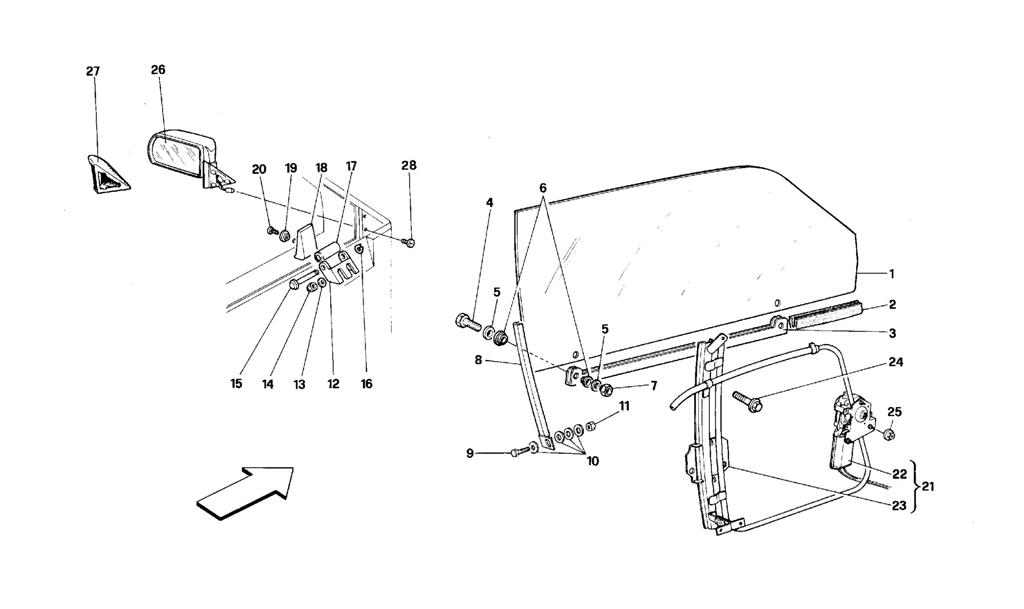

DOORS - COUPE - GLASS LIFTING DEVICE AND REAR MIRROR

DOORS - COUPE - GLASS LIFTING DEVICE AND REAR MIRROR

Location Part # Quantity* Description Price Add To Cart
1 61034200 1 L.H. glass $276.16
1 61034100 1 R.H. glass $280.20
2 62301800 2 Gasket $5.79
3 62301300 1 R.H. glass support $83.78
3 62301400 1 L.H. glass support $34.35
4 10902324 4 Screw Superseded
5 12643724 8 Washer Superseded
6 50086909 8 Bush $13.20
7 102741 4 Nut $0.90
8 60614400 1 R.H. glass guide $35.83
8 60614500 1 L.H. glass guide $35.83
9 10902011 2 Screw Unavailable
10 12643724 8 Washer Superseded
11 13832101 2 Nut Unavailable
12 61111900 2 Bracket $20.89
13 12638124 4 Washer $0.90
14 169180 4 Nut Unavailable
15 61112000 2 Pin $7.06
16 11065376 2 Elaster spring $1.08
17 61111700 2 Roller $6.86
18 61038000 2 Guide for roller $7.06
19 61037900 2 Washer $2.78
20 15687270 2 Screw Unavailable
21 62301900 1 R.H. glass lifting assembly and motor $216.30
21 62302000 1 L.H. glass lifting assembly and motor $223.12
22 62302100 1 R.H. engine Unavailable
22 62302200 1 L.H. engine Unavailable
23 62302300 1 R.H. glass lifting guide $165.14
23 62302400 1 L.H. glass lifting guide $173.44
24 13836371 10 Screw $1.45
25 13832101 6 Nut Unavailable
26 61182500 1 R.H. mirror -Valid for RHD- $469.84
26 61090000 1 L.H. mirror -Not for RHD- Unavailable
26 61367700 1 R.H. mirror -Valid for USA- $312.15
26 61181100 1 R.H. mirror -Not for USA and RHD $963.82
26 61182300 1 L.H. mirror -Valid for RHD- $357.95
27 61182400 1 L.H. mirror covering -Valid for RHD $44.11
27 61182600 1 R.H. mirror covering -Valid for RHD $41.43
27 61080500 1 L.H. mirror covering -Not for RHD Unavailable
27 61181200 1 R.H. mirror covering -Not for RHD $35.22
28 61182700 6 Screw $16.02

* Quantity shown indicates the number of pieces used in the diagram.
