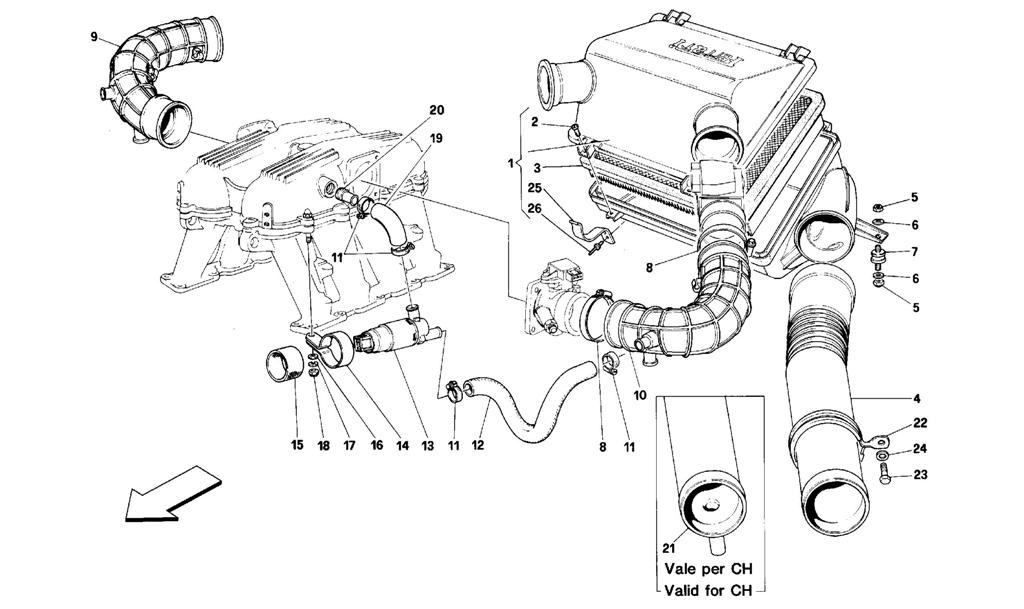

AIR INTAKE -MOTRONIC 2.7-

Go to Split View

AIR INTAKE -MOTRONIC 2.7-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 141862 *Qty: 1 Air inlet assy $1,014.86
Location: 2 Prev | Next Part: 10376777 *Qty: 4 Screw $0.90
Location: 3 Prev | Next Part: 155871 *Qty: 1 Air filter $65.68
Location: 4 Prev | Next Part: 143950 *Qty: 1 Pipe for air inlet connecting -Not for CH $242.27
Location: 5 Prev | Next Part: 102741 *Qty: 6 Nut $0.90
Location: 6 Prev | Next Part: 14496424 *Qty: 6 Washer Superseded
Location: 7 Prev | Next Part: 102947 *Qty: 3 Pad $18.79
Location: 8 Prev | Next Part: 12176490 *Qty: 4 Clamp Superseded
Location: 9 Prev | Next Part: 143257 *Qty: 1 R.H. sleeve $373.96
Location: 10 Prev | Next Part: 143236 *Qty: 1 L.H. sleeve $373.96
Location: 11 Prev | Next Part: 12180290 *Qty: 8 Clamp Call
Location: 12 Prev | Next Part: 143201 *Qty: 1 L.H. pipe $24.26
Location: 12 Prev | Next Part: 143202 *Qty: 1 R.H. pipe $24.26
Location: 13 Prev | Next Part: 142432 *Qty: 2 Regulator $710.34
Location: 14 Prev | Next Part: 143294 *Qty: 1 L.H. bracket $3.06
Location: 14 Prev | Next Part: 143301 *Qty: 1 R.H. bracket $2.27
Location: 15 Prev | Next Part: 143291 *Qty: 2 Sleeve $2.55
Location: 16 Prev | Next Part: 14496424 *Qty: 2 Washer Superseded
Location: 17 Prev | Next Part: 127494 *Qty: 2 Washer $0.90
Location: 18 Prev | Next Part: 15896214 *Qty: 2 Nut $0.90
Location: 19 Prev | Next Part: 143270 *Qty: 2 Pipe from regulator to air plenum chamber $8.98
Location: 20 Prev | Next Part: 143286 *Qty: 2 Union $6.22
Location: 21 Prev | Next Part: 142492 *Qty: 1 Pipe for air inlet connecting -Valid for CH $407.86
Location: 22 Prev | Next Part: 140653 *Qty: 1 Clamp $8.65
Location: 23 Prev | Next Part: 10902024 *Qty: 1 Screw $0.90
Location: 24 Prev | Next Part: 11193279 *Qty: 1 Washer $0.90
Location: 25 Prev | Next Part: 139550 *Qty: 2 Spring $7.96
Location: 26 Prev | Next Part: 14640891 *Qty: 2 Rivet $0.90

* Quantity shown indicates the number of pieces used in the diagram.
