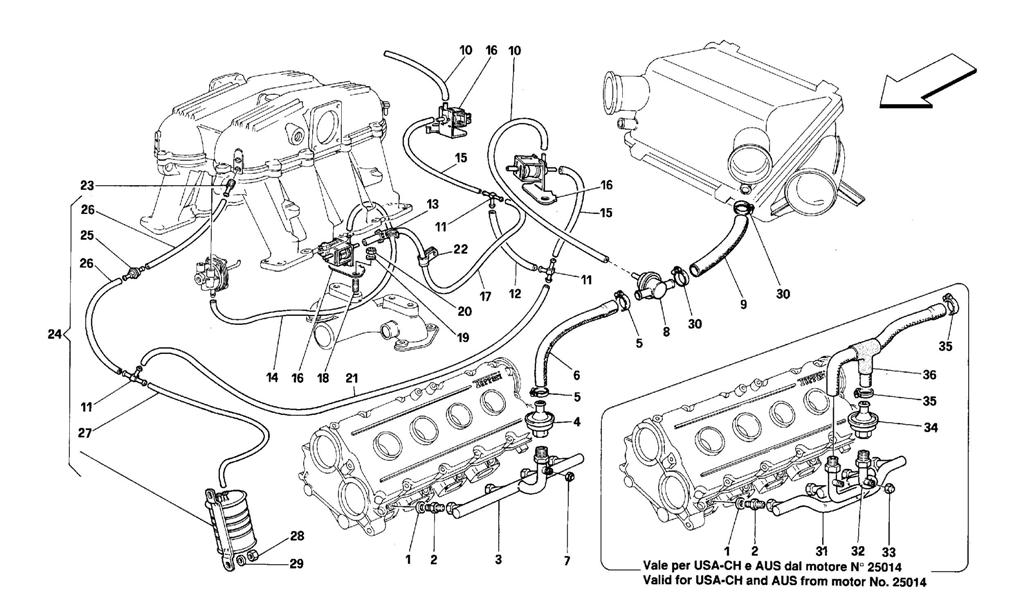

AIR INJECTION DEVICE -FOR CARS WITH CATALYST - MOTRONIC 2.7-

Go to Split View

AIR INJECTION DEVICE -FOR CARS WITH CATALYST - MOTRONIC 2.7-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 10257060 *Qty: 8 Gasket $0.90
Location: 2 Prev | Next Part: 121718 *Qty: 8 Union $98.75
Location: 3 Prev | Next Part: 141195 *Qty: 2 Air inlet pipe $266.15
Location: 4 Prev | Next Part: 148494 *Qty: 2 Check valve $39.00
Location: 5 Prev | Next Part: 12180290 *Qty: 4 Screw collar Call
Location: 6 Prev | Next Part: 133962 *Qty: 2 Air inlet sleeve $328.11
Location: 7 Prev | Next Part: 150595 *Qty: 2 Nut on air pipe union $1.97
Location: 8 Prev | Next Part: 147390 *Qty: 2 Cut-off valve $330.75
Location: 9 Prev | Next Part: 116787 *Qty: 2 Pipe from cut-off to air inlet $5.61
Location: 10 Prev | Next Part: 115676 *Qty: 2 Pipe from solenoid valve to cut-off $10.92
Location: 11 Prev | Next Part: 121793 *Qty: 3 Union 3 ways $0.90
Location: 12 Prev | Next Part: 141235 *Qty: 1 Three-way connection pipe $2.85
Location: 13 Prev | Next Part: 145702 *Qty: 3 Spring $0.90
Location: 14 Prev | Next Part: 115676 *Qty: 1 Pipe from solenoid valve to pneumatic capsule $10.92
Location: 15 Prev | Next Part: 125826 *Qty: 2 Pipe from solenoid valve to 3 ways $12.49
Location: 16 Prev | Next Part: 111704 *Qty: 3 Solenoid valve $203.13
Location: 17 Prev | Next Part: 115147 *Qty: 1 Pipe from 3-ways to solenoid valve $4.29
Location: 18 Prev | Next Part: 11500020 *Qty: 1 Stud bolt $0.90
Location: 19 Prev | Next Part: 14496424 *Qty: 1 Washer Superseded
Location: 20 Prev | Next Part: 102741 *Qty: 1 Nut $0.90
Location: 21 Prev | Next Part: 126342 *Qty: 1 Three-way connection pipe $4.31
Location: 22 Prev | Next Part: 10418301 *Qty: 4 Clamp Call
Location: 23 Prev | Next Part: 113652 *Qty: 1 Union Call
Location: 24 Prev | Next Part: 65942900 *Qty: 1 Vaccum tank with pipes and valve $646.49
Location: 25 Prev | Next Part: 62507200 *Qty: 1 Single-acting valve $27.23
Location: 26 Prev | Next Part: 62660800 *Qty: 2 Pipe on single-acting valve $61.83
Location: 27 Prev | Next Part: 62660700 *Qty: 1 Pipe from 3-ways to vacuum tank $61.83
Location: 28 Prev | Next Part: 102948 *Qty: 2 Nut $0.90
Location: 29 Prev | Next Part: 10519424 *Qty: 2 Washer Call
Location: 30 Prev | Next Part: 12180290 *Qty: 4 Screw collar Call
Location: 31 Prev | Next Part: 147178 *Qty: 1 R.H. front-rear air inlet pipe $270.55
Location: 31 Prev | Next Part: 147180 *Qty: 1 L.H. front-rear air inlet pipe $240.77
Location: 32 Prev | Next Part: 147179 *Qty: 1 R.H. central air inlet pipe $462.26
Location: 32 Prev | Next Part: 147181 *Qty: 1 L.H. central air inlet pipe $235.53
Location: 33 Prev | Next Part: 150595 *Qty: 4 Nut on air pipe union $1.97
Location: 34 Prev | Next Part: 148494 *Qty: 4 Check valve $39.00
Location: 35 Prev | Next Part: 12180290 *Qty: 6 Screw collar Call
Location: 36 Prev | Next Part: 147360 *Qty: 2 Air inlet sleeve Call

* Quantity shown indicates the number of pieces used in the diagram.
