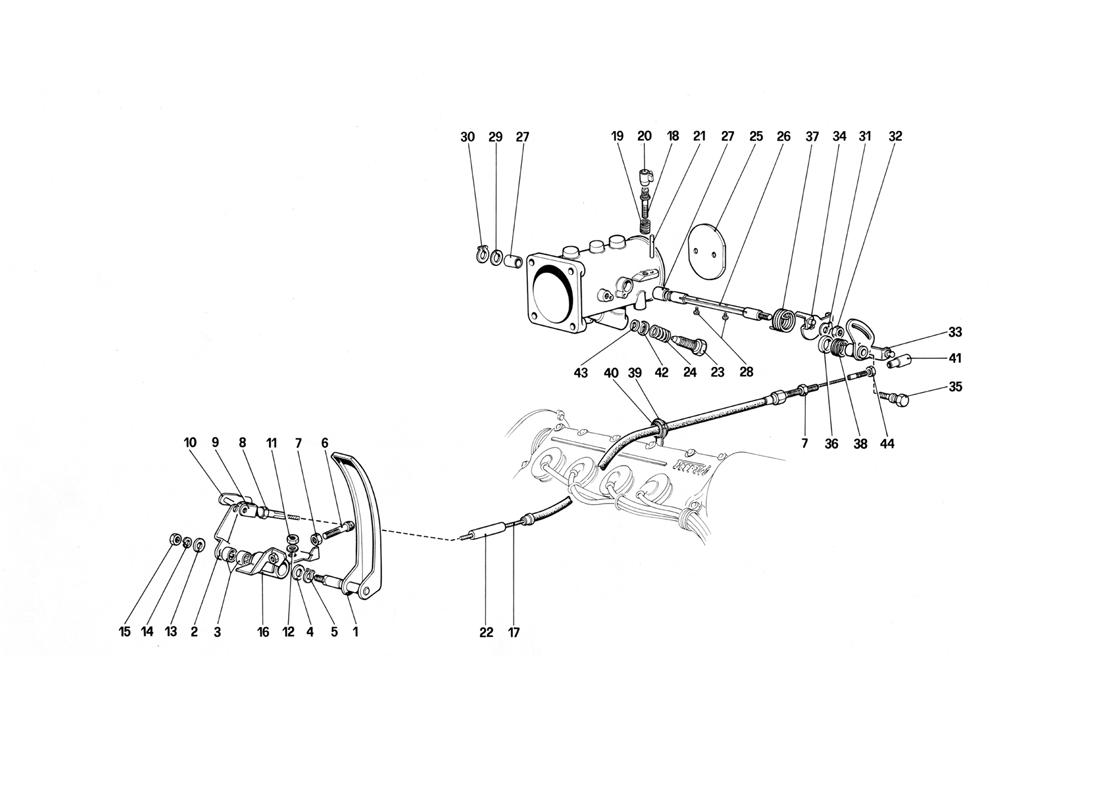

THROTTLE HOUSING AND LINKAGE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 120073 *Qty: 1 Accelerator pedal $90.12
Location: 2 Prev | Next Part: 115399 *Qty: 1 Lever $16.81
Location: 3 Prev | Next Part: 101677 *Qty: 2 Roller cage $2.74
Location: 4 Prev | Next Part: 108576 *Qty: 1 Shim $1.78
Location: 5 Prev | Next Part: 11066076 *Qty: 1 Seeger Superseded
Location: 6 Prev | Next Part: 105232 *Qty: 1 Adjusting screw $5.09
Location: 7 Prev | Next Part: 16102311 *Qty: 2 Nut Superseded
Location: 8 Prev | Next Part: 10725911 *Qty: 1 Locknut Superseded
Location: 9 Prev | Next Part: 100655 *Qty: 1 Fork $145.18
Location: 10 Prev | Next Part: 100656 *Qty: 1 Pin with strap $2.80
Location: 11 Prev | Next Part: 16100811 *Qty: 2 Nut Superseded
Location: 12 Prev | Next Part: 106852 *Qty: 2 Washer Superseded
Location: 13 Prev | Next Part: 10519601 *Qty: 1 Spacer Superseded
Location: 14 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 15 Prev | Next Part: 16100811 *Qty: 1 Nut Superseded
Location: 16 Prev | Next Part: 120070 *Qty: 1 Support for accelerator pedal $84.29
Location: 17 Prev | Next Part: 118817 *Qty: 1 Control cable for accelerator $136.38
Location: 18 Prev | Next Part: 114366 *Qty: 1 Adjust screw for throttle control lever $3.21
Location: 19 Prev | Next Part: 107824 *Qty: 1 Spring $1.23
Location: 20 Prev | Next Part: 111182 *Qty: 1 Inviolability cap $9.64
Location: 21 Prev | Next Part: 114367 *Qty: 1 Pin for cap $0.90
Location: 22 Prev | Next Part: 120027 *Qty: 1 Cable protection $121.16
Location: 23 Prev | Next Part: 119308 *Qty: 1 Air adjusting screw
For CH use no. 119308
$3.15
Location: 24 Prev | Next Part: 113571 *Qty: 1 Spring Call
Location: 25 Prev | Next Part: 114851 *Qty: 1 Throttle $33.38
Location: 26 Prev | Next Part: 114852 *Qty: 1 Throttle spindle $65.85
Location: 27 Prev | Next Part: 107443 *Qty: 2 Bush $10.74
Location: 28 Prev | Next Part: 115361 *Qty: 2 Screw $0.90
Location: 29 Prev | Next Part: 13550401 *Qty: 1 Washer $0.90
Location: 30 Prev | Next Part: 11065976 *Qty: 1 Seeger
$0.90
Location: 31 Prev | Next Part: 113566 *Qty: 1 Lock washer
$2.63
Location: 32 Prev | Next Part: 16102321 *Qty: 1 Nut
$0.90
Location: 33 Prev | Next Part: 118296 *Qty: 1 Throttle control lever
Call
Location: 34 Prev | Next Part: 115590 *Qty: 1 Throttle adjust lever
$62.80
Location: 35 Prev | Next Part: 114863 *Qty: 1 Lever pin $22.65
Location: 36 Prev | Next Part: 114986 *Qty: 1 Spacing washer $0.90
Location: 37 Prev | Next Part: 115573 *Qty: 1 Spring $27.01
Location: 38 Prev | Next Part: 118294 *Qty: 1 Spring $14.48
Location: 39 Prev | Next Part: 118809 *Qty: 1 Support plate for cable $13.76
Location: 40 Prev | Next Part: 10396580 *Qty: 1 Fair - lead $8.45
Location: 41 Prev | Next Part: 105617 *Qty: 1 Ball ring Superseded
Location: 42 Prev | Next Part: 115204 *Qty: 1 Plate
CH only
$13.89
Location: 43 Prev | Next Part: 114919 *Qty: 1 Grommet
CH only
$1.27
Location: 44 Prev | Next Part: 15896411 *Qty: 1 Nut Superseded

* Quantity shown indicates the number of pieces used in the diagram.
