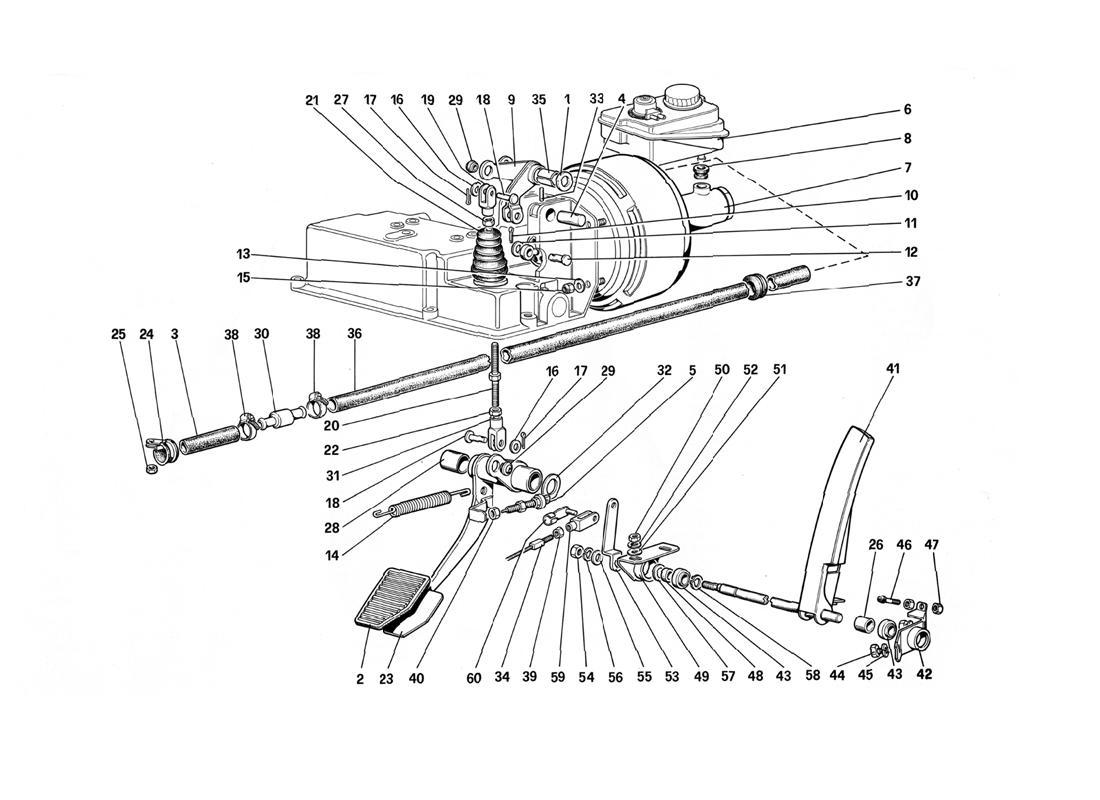

THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (VARIANTS FOR RHD)

Go to Split View

THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (VARIANTS FOR RHD)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 112126 *Qty: 2 Shim $0.90
Location: 2 Prev | Next Part: 106950 *Qty: 1 Pedal cover $32.46
Location: 3 Prev | Next Part: 120232 *Qty: 1 Pipe from valve to 3-way Call
Location: 4 Prev | Next Part: 112165 *Qty: 1 Pin for return lever $14.20
Location: 5 Prev | Next Part: 119439 *Qty: 1 Stop light switch
On exhaustion use no. 101663
$78.92
Location: 6 Prev | Next Part: 119566 *Qty: 1 Brake and clutch fluid reservoir
From chassis no. 48485
Superseded
Location: 6 Prev | Next Part: 108802 *Qty: 1 Brake fluid reservoir
To chassis no. 48483
Call
Location: 7 Prev | Next Part: 111339 *Qty: 1 Brake booster
On exhaustion use no. 124515
Call
Location: 8 Prev | Next Part: 106625 *Qty: 2 Sealing ring Superseded
Location: 9 Prev | Next Part: 116884 *Qty: 1 Brake booster lever $372.38
Location: 10 Prev | Next Part: 10796401 *Qty: 1 Split pin Superseded
Location: 11 Prev | Next Part: 10730521 *Qty: 1 Washer $3.01
Location: 12 Prev | Next Part: 10033411 *Qty: 1 Pin Superseded
Location: 13 Prev | Next Part: 12601371 *Qty: 4 Washer Superseded
Location: 14 Prev | Next Part: 104895 *Qty: 1 Pedal return spring $4.25
Location: 15 Prev | Next Part: 16104411 *Qty: 4 Nut $0.90
Location: 16 Prev | Next Part: 103167 *Qty: 2 Washer $5.08
Location: 17 Prev | Next Part: 10796401 *Qty: 2 Split pin Superseded
Location: 18 Prev | Next Part: 10033411 *Qty: 2 Pin Superseded
Location: 19 Prev | Next Part: 104910 *Qty: 1 Fork, right thread $10.85
Location: 20 Prev | Next Part: 112178 *Qty: 1 Tie rod $30.81
Location: 21 Prev | Next Part: 112157 *Qty: 1 Bellows $13.14
Location: 22 Prev | Next Part: 103157 *Qty: 1 Nut, left thread
On exhaustion use no. 11690911
Superseded
Location: 23 Prev | Next Part: 113829 *Qty: 1 Brake pedal
On exhaustion use no. 121247
$309.34
Location: 24 Prev | Next Part: 106195 *Qty: 1 Clamp $46.96
Location: 25 Prev | Next Part: 12574211 *Qty: 1 Nut Superseded
Location: 26 Prev | Next Part: 117991 *Qty: 1 Spacer $3.34
Location: 27 Prev | Next Part: 103160 *Qty: 1 Nut, right thread
On exhaustion use no. 10788711
Superseded
Location: 28 Prev | Next Part: 103163 *Qty: 2 Bush $3.80
Location: 29 Prev | Next Part: 100424 *Qty: 2 Ball joint Call
Location: 30 Prev | Next Part: 101538 *Qty: 1 Non return valve Superseded
Location: 31 Prev | Next Part: 104911 *Qty: 1 Fork, left thread $26.62
Location: 32 Prev | Next Part: 106083 *Qty: 1 Shim $1.14
Location: 33 Prev | Next Part: 112166 *Qty: 1 Pin $0.90
Location: 34 Prev | Next Part: 118817 *Qty: 1 Control cable for accelerator $136.38
Location: 35 Prev | Next Part: 112161 *Qty: 1 Bush $39.23
Location: 36 Prev | Next Part: 119361 *Qty: 1 Hose from brake booster to valve $173.79
Location: 37 Prev | Next Part: 10396880 *Qty: 1 Fair - lead $2.23
Location: 38 Prev | Next Part: 12179590 *Qty: 4 Clamp Superseded
Location: 39 Prev | Next Part: 10725911 *Qty: 1 Nut Superseded
Location: 40 Prev | Next Part: 101662 *Qty: 1 Nut $3.73
Location: 41 Prev | Next Part: 116522 *Qty: 1 Accelerator pedal $570.82
Location: 42 Prev | Next Part: 116526 *Qty: 1 Support for accelerator pedal $115.58
Location: 43 Prev | Next Part: 122430 *Qty: 1 Ball joint $207.51
Location: 44 Prev | Next Part: 16043221 *Qty: 2 Screw $0.90
Location: 45 Prev | Next Part: 106852 *Qty: 2 Washer Superseded
Location: 46 Prev | Next Part: 116527 *Qty: 1 Adjusting screw $10.16
Location: 47 Prev | Next Part: 16102311 *Qty: 2 Nut Superseded
Location: 48 Prev | Next Part: 116529 *Qty: 1 Spacer $9.99
Location: 49 Prev | Next Part: 116528 *Qty: 1 Support $111.37
Location: 50 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 51 Prev | Next Part: 12643701 *Qty: 2 Washer Superseded
Location: 52 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 53 Prev | Next Part: 115399 *Qty: 1 Lever $16.81
Location: 54 Prev | Next Part: 16100811 *Qty: 1 Nut Superseded
Location: 55 Prev | Next Part: 10519601 *Qty: 1 Washer Superseded
Location: 56 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 57 Prev | Next Part: 105930 *Qty: 1 Ditto, thickness 0,5 mm. $2.29
Location: 57 Prev | Next Part: 105929 *Qty: 1 Shim, 0,3 mm. $0.95
Location: 57 Prev | Next Part: 105931 *Qty: 1 Ditto, thickness 0,7 mm. $1.00
Location: 58 Prev | Next Part: 11066076 *Qty: 1 Seeger ring Superseded
Location: 59 Prev | Next Part: 100655 *Qty: 1 Fork $145.18
Location: 60 Prev | Next Part: 100656 *Qty: 1 Pin $2.80

* Quantity shown indicates the number of pieces used in the diagram.
