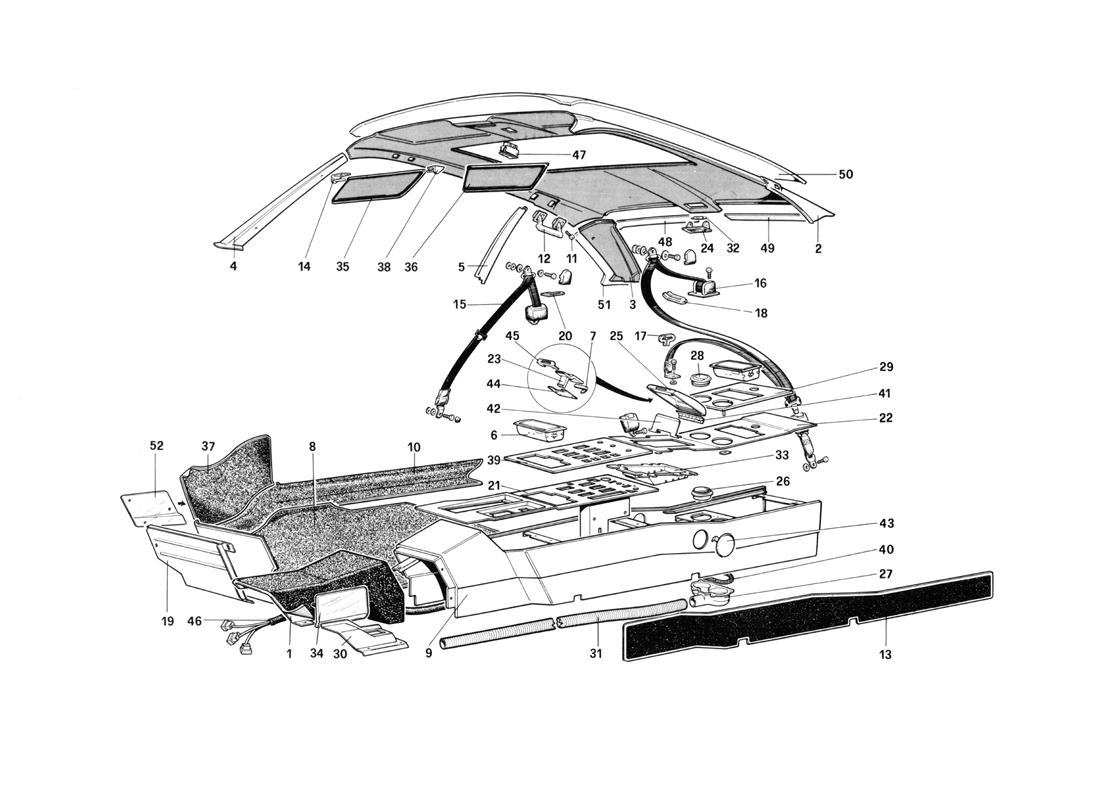

ROOF, TUNNEL AND SAFETY BELTS

Go to Split View

ROOF, TUNNEL AND SAFETY BELTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61123800 *Qty: 1 Front tunnel with moquette (RHD) $507.12
Location: 1 Prev | Next Part: 61145100 *Qty: 1 Moquette (RHD) Call
Location: 1 Prev | Next Part: 61142200 *Qty: 1 Moquette (LHD) $164.58
Location: 1 Prev | Next Part: 61116200 *Qty: 1 Front tunnel with moquette (LHD) $536.56
Location: 2 Prev | Next Part: 61139100 *Qty: 1 Roof with covering (4V.-T.A. LHD) Call
Location: 2 Prev | Next Part: 61269000 *Qty: 1 Roof with covering (4V. - T.A. - RHD)
From 1 - 8 - 82
$1,297.24
Location: 2 Prev | Next Part: 61092100 *Qty: 1 Roof with covering (4V. - LHD)
To exhaustion
$1,148.97
Location: 2 Prev | Next Part: 61178800 *Qty: 1 Roof with covering (4V. - T.A. - RHD)
To 31 - 7 - 82
Call
Location: 2 Prev | Next Part: 61168800 *Qty: 1 Roof with covering (4V. - RHD)
On exhaustion 61 125200
$1,359.24
Location: 2 Prev | Next Part: 61168700 *Qty: 1 Covering (4V. -RHD)
On exhaustion 61125200
Call
Location: 2 Prev | Next Part: 61125200 *Qty: 1 Roof with covering (4V. - RHD)
To exhaustion
Superseded
Location: 2 Prev | Next Part: 61266400 *Qty: 1 Covering (4V. - T.A. - RHD)
From 1 - 8 - 82
$562.02
Location: 2 Prev | Next Part: 61266400 *Qty: 1 Covering (4V. - T.A. - LHD)
From 1 - 8 - 82
$562.02
Location: 2 Prev | Next Part: 61139700 *Qty: 1 Covering (4V. - T.A. - LHD)
To 31 - 7 - 82
$361.09
Location: 2 Prev | Next Part: 61168700 *Qty: 1 Covering (4V. - LHD)
On exhaustion 61092100
Call
Location: 2 Prev | Next Part: 61139700 *Qty: 1 Covering (4V. - T.A.- RHD)
To 31 - 7 - 82
$361.09
Location: 2 Prev | Next Part: 61168500 *Qty: 1 Roof with covering (4V. - LHD)
On exhaustion 61092100
$1,422.07
Location: 3 Prev | Next Part: 60680000 *Qty: 1 Rear L.H. moulding $345.26
Location: 3 Prev | Next Part: 60679900 *Qty: 1 Rear R.H. moulding $345.26
Location: 4 Prev | Next Part: 61238300 *Qty: 1 R.H. moulding for windshield (Cab.) $148.75
Location: 4 Prev | Next Part: 60685000 *Qty: 1 L.H. moulding for windshield (4V.) $67.42
Location: 4 Prev | Next Part: 60685300 *Qty: 1 R.H. moulding for windshield (4V.) $67.42
Location: 4 Prev | Next Part: 61238600 *Qty: 1 L.H. moulding for windshield (Cab.) $148.75
Location: 5 Prev | Next Part: 60686000 *Qty: 1 R.H. center post. (4V.) $67.01
Location: 5 Prev | Next Part: 60685700 *Qty: 1 L.H. center post. (4V.) $68.61
Location: 6 Prev | Next Part: 61058900 *Qty: 2 Ash tray $326.68
Location: 7 Prev | Next Part: 61059700 *Qty: 1 Spring $5.53
Location: 8 Prev | Next Part: 61140500 *Qty: 1 Front carpet L.H. (4V. -LHD) Call
Location: 8 Prev | Next Part: 61230000 *Qty: 1 Front carpet R.H. (LHD - Cab.) $172.75
Location: 8 Prev | Next Part: 61140700 *Qty: 1 Front carpet R.H. (4V. kHD) $177.72
Location: 8 Prev | Next Part: 1441500 *Qty: 1 Front carpet R.H. (RHD - Cab.) Call
Location: 8 Prev | Next Part: 61144400 *Qty: 1 Front carpet R.H. (4V. -RHD) Call
Location: 8 Prev | Next Part: 61228600 *Qty: 1 Frontcarpet L.H. (Cab. - LHD) $164.58
Location: 8 Prev | Next Part: 61440800 *Qty: 1 Frontcarpet L.H. (Cab. - RHD) Call
Location: 8 Prev | Next Part: 61144200 *Qty: 1 Frontcarpet L.H.(4V.-RHD) Call
Location: 9 Prev | Next Part: 61144700 *Qty: 1 Covering (4V. - RHD) Call
Location: 9 Prev | Next Part: 61243100 *Qty: 1 Covering (Cab. - LHD) $281.88
Location: 9 Prev | Next Part: 61442500 *Qty: 1 Covering (Cab. - RHD) Call
Location: 9 Prev | Next Part: 61056500 *Qty: 1 Tunnel with covering (4V. - LHD)
To 30 - 4 - 84
Superseded
Location: 9 Prev | Next Part: 61622200 *Qty: 1 Tunnel with covering - From 1-5-84 (4V.-LHD) $2,011.50
Location: 9 Prev | Next Part: 61622400 *Qty: 1 Tunnel with covering - From 1-5-84 (4V.-RHD) Call
Location: 9 Prev | Next Part: 61622700 *Qty: 1 Tunnel with covering - From 1-5-84 (Cab.-RHD) Call
Location: 9 Prev | Next Part: 61442300 *Qty: 1 Tunnel with covering - To 30-4-84 (Cab.-RHD) Call
Location: 9 Prev | Next Part: 61122100 *Qty: 1 Tunnel with covering To 30-4-84 (4V.-RHD) Call
Location: 9 Prev | Next Part: 61242900 *Qty: 1 Tunnel with covering - To 30-4-84 (Cab.-LHD) Superseded
Location: 9 Prev | Next Part: 61622600 *Qty: 1 Tunnel with covering - From 1-5-84 (Cab.-LHD) $2,087.36
Location: 9 Prev | Next Part: 61056600 *Qty: 1 Covering (4V. - LHD) $580.69
Location: 10 Prev | Next Part: 61663000 *Qty: 1 Rear carpet R.H. framework (Cab.-RHD) Call
Location: 10 Prev | Next Part: 61259800 *Qty: 1 Carpet L.H. framework (4V. - RHD) Call
Location: 10 Prev | Next Part: 61662800 *Qty: 1 Front carpet R.H. framework (Cab.-RHD) Call
Location: 10 Prev | Next Part: 61258600 *Qty: 1 Carpet LH. framework (4V. - LHD) $154.86
Location: 10 Prev | Next Part: 61311900 *Qty: 1 Carpet R.H. framework (Cab. - LHD) $101.66
Location: 10 Prev | Next Part: 61259200 *Qty: 1 Carpet R.H. framework (4V. - RHD) Call
Location: 10 Prev | Next Part: 61258000 *Qty: 1 Carpet R.H. framework (4V. - LHD) $130.63
Location: 10 Prev | Next Part: 61312200 *Qty: 1 Front carpet L.H. framework (Cab.-LHD) Call
Location: 10 Prev | Next Part: 61442100 *Qty: 1 Carpet L.H. framework (Cab, - RHD) Call
Location: 10 Prev | Next Part: 61443200 *Qty: 1 Rear carpet L.H. framework (Cab. - LHD) $67.01
Location: 11 Prev | Next Part: 14064512 *Qty: 6 Screw (4V.) $1.44
Location: 12 Prev | Next Part: 61119600 *Qty: 3 Handle, black (4V.) Call
Location: 12 Prev | Next Part: 60699700 *Qty: 3 Handle, withe (4V.) Call
Location: 13 Prev | Next Part: 61145500 *Qty: 1 L.H. moquette for tunnel (4V. - RHD) Call
Location: 13 Prev | Next Part: 61442600 *Qty: 1 L.H. moquette for tunnel (Cab. - RHD Call
Location: 13 Prev | Next Part: 61243700 *Qty: 1 R.H. moquette for tunnel (Cab. - LHD) $73.58
Location: 13 Prev | Next Part: 61143300 *Qty: 1 R.H. moquette for tunnel (4V. - LHD) $50.25
Location: 13 Prev | Next Part: 61243400 *Qty: 1 L.H. moquette for tunnel (Cab. - LHD) $73.58
Location: 13 Prev | Next Part: 61143000 *Qty: 1 LH. moquette for tunnel (4V. - LHD) $50.25
Location: 13 Prev | Next Part: 61145700 *Qty: 1 R.H. moquette for tunnel (4V. - RHD) Call
Location: 13 Prev | Next Part: 61442800 *Qty: 1 R.H. moquette for tunnel (Cab. - RHD) Call
Location: 14 Prev | Next Part: 61603700 *Qty: 1 R.H. bracket (Cab.) $176.59
Location: 14 Prev | Next Part: 61003200 *Qty: 2 R.H. bracket (4V.) $158.45
Location: 15 Prev | Next Part: 61438500 *Qty: 1 Front safety belts set (Cab.) $289.79
Location: 15 Prev | Next Part: 60712900 *Qty: 1 Front safety belts set (4V.) Call
Location: 16 Prev | Next Part: 61343000 *Qty: 1 Rear safety belts set (Cab.) $173.38
Location: 16 Prev | Next Part: 60713500 *Qty: 1 Rear safety belts set (4V.) $303.02
Location: 17 Prev | Next Part: 60709400 *Qty: 2 Lower frame for rear belts $7.81
Location: 18 Prev | Next Part: 60709700 *Qty: 1 L.H. frame for rear belts $27.84
Location: 18 Prev | Next Part: 60709800 *Qty: 1 R.H. frame for rear belts $27.84
Location: 19 Prev | Next Part: 61141700 *Qty: 1 Passenger footrest (RHD) $58.86
Location: 19 Prev | Next Part: 61140300 *Qty: 1 Passenger footrest (LHD) $71.09
Location: 20 Prev | Next Part: 60841100 *Qty: 2 Upper frame for front belts $43.25
Location: 21 Prev | Next Part: 61122400 *Qty: 1 Front plate with covering for $306.76
Location: 21 Prev | Next Part: 61057900 *Qty: 1 Covering $97.34
Location: 21 Prev | Next Part: 61057500 *Qty: 1 Front plate with covering for $541.08
Location: 22 Prev | Next Part: 61058300 *Qty: 1 Covering (4V.) $92.13
Location: 22 Prev | Next Part: 61058000 *Qty: 1 fcear plate with covering for tunnel (4V.) $220.06
Location: 22 Prev | Next Part: 61371200 *Qty: 1 Rear plate with covering for tunnel $381.46
Location: 22 Prev | Next Part: 61244200 *Qty: 1 Covering (Cab ) $67.46
Location: 23 Prev | Next Part: 61059600 *Qty: 1 Nob for cid $3.75
Location: 24 Prev | Next Part: 60326706 *Qty: 2 Lamp (4V.) Call
Location: 24 Prev | Next Part: 60326706 *Qty: 1 Lamp (Cab.) Call
Location: 25 Prev | Next Part: 61059400 *Qty: 1 Cid with covering $534.87
Location: 25 Prev | Next Part: 61059500 *Qty: 1 Covering $19.35
Location: 26 Prev | Next Part: 61058500 *Qty: 2 Ring nut (4V.) $5.27
Location: 27 Prev | Next Part: 61058400 *Qty: 1 Air conveyor (4V.) $21.73
Location: 28 Prev | Next Part: 60656500 *Qty: 2 Air outlet (4V.) Call
Location: 29 Prev | Next Part: 61023000 *Qty: 1 Rear upper plate with covering for tunnel (4V.) $191.30
Location: 30 Prev | Next Part: 61066900 *Qty: 1 Accelarator pedal cover (LHD) $57.92
Location: 30 Prev | Next Part: 61112800 *Qty: 1 Accelarator pedal cover (RHD) $212.25
Location: 31 Prev | Next Part: 61120400 *Qty: 1 Pipe $36.01
Location: 32 Prev | Next Part: 50100205 *Qty: 1 Bulb Call
Location: 33 Prev | Next Part: 61154100 *Qty: 1 Cassette box (RHD) $22.64
Location: 33 Prev | Next Part: 61059000 *Qty: 1 Cassette box (LHD) $15.13
Location: 34 Prev | Next Part: 61124100 *Qty: 1 Protection for front tunnel (RHD) $42.28
Location: 34 Prev | Next Part: 61120800 *Qty: 1 Protection for front tunnel (LHD) $12.23
Location: 35 Prev | Next Part: 61002300 *Qty: 1 R.H. sun visor (4V. - RHD) $188.48
Location: 35 Prev | Next Part: 61606100 *Qty: 1 R.H. sun visor (Cab. - RHD) $164.21
Location: 35 Prev | Next Part: 61179900 *Qty: 1 R.H. sun visor (T.A. - RHD) $144.17
Location: 35 Prev | Next Part: 61171700 *Qty: 1 R.H. sun visor (T.A. - LHD) $170.66
Location: 35 Prev | Next Part: 61317500 *Qty: 1 R.H. sun visor (Cab. - LHD) Call
Location: 35 Prev | Next Part: 61169400 *Qty: 1 R.H. sun visor (4V. - LHD) $182.53
Location: 36 Prev | Next Part: 61606300 *Qty: 1 L.H. sun visor (Cab. - RHD) $164.21
Location: 36 Prev | Next Part: 61180100 *Qty: 1 L.H. sun visor (T.A. - RHD) $148.59
Location: 36 Prev | Next Part: 61004300 *Qty: 1 L.H. sun visor (T.A. - LHD) $138.55
Location: 36 Prev | Next Part: 61169700 *Qty: 1 LH. sun visor (4V. - RHD) $180.83
Location: 36 Prev | Next Part: 61317700 *Qty: 1 L.H. sun visor (Cab. - LHD) $148.25
Location: 36 Prev | Next Part: 61002500 *Qty: 1 LH. sun visor (4V. - LHD) $258.96
Location: 37 Prev | Next Part: 61258900 *Qty: 1 Carpet for L.H. wheelhouse (LHD) $62.26
Location: 37 Prev | Next Part: 61260100 *Qty: 1 Carpet for L.H. wheelhouse (RHD) Call
Location: 37 Prev | Next Part: 61259500 *Qty: 1 Carpet for R.H. wheelhouse (RHD) Call
Location: 37 Prev | Next Part: 61258300 *Qty: 1 Carpet for R.H. wheelhouse (LHD) $62.04
Location: 38 Prev | Next Part: 61603800 *Qty: 1 L.H. bracket (Cab.) $176.59
Location: 38 Prev | Next Part: 61003300 *Qty: 2 LH. bracket (4VJ $158.45
Location: 39 Prev | Next Part: 61022900 *Qty: 1 Upper front plate for tunnel (LHD } Call
Location: 39 Prev | Next Part: 61122900 *Qty: 1 Upper front plate for tunnel (RHD ) Call
Location: 40 Prev | Next Part: 61120300 *Qty: 1 Gasket (4V.) $5.78
Location: 41 Prev | Next Part: 61059200 *Qty: 1 Hinge for cid $26.35
Location: 42 Prev | Next Part: 61059100 *Qty: 4 Shield panel for cassette box $2.03
Location: 43 Prev | Next Part: 61315000 *Qty: 2 Splug for tunnel (Cab.) $53.20
Location: 43 Prev | Next Part: 61081800 *Qty: 2 Splug for tunnel (4V.) $44.84
Location: 44 Prev | Next Part: 61059800 *Qty: 1 Cid for spring $2.72
Location: 45 Prev | Next Part: 61059900 *Qty: 1 Moulding for spring $8.75
Location: 46 Prev | Next Part: 119425 *Qty: 1 Electrical cables for tunnel $340.72
Location: 47 Prev | Next Part: 114635 *Qty: 1 Switch for sun roof (T.A.) Call
Location: 48 Prev | Next Part: 61267300 *Qty: 1 R.H. framework with covering (T.A.) $99.68
Location: 49 Prev | Next Part: 61267400 *Qty: 1 L.H. framework with covering (T.A.) $124.07
Location: 50 Prev | Next Part: 61093900 *Qty: 1 Insulation for rob
Tropic only
Call
Location: 51 Prev | Next Part: 61094000 *Qty: 1 Insulation for R.H. post.
Tropic only
Call
Location: 51 Prev | Next Part: 61094100 *Qty: 1 Insulation for L.H. post.
Tropic only
Call
Location: 52 Prev | Next Part: 61168300 *Qty: 1 Inox protection (RHD) $186.10

* Quantity shown indicates the number of pieces used in the diagram.
