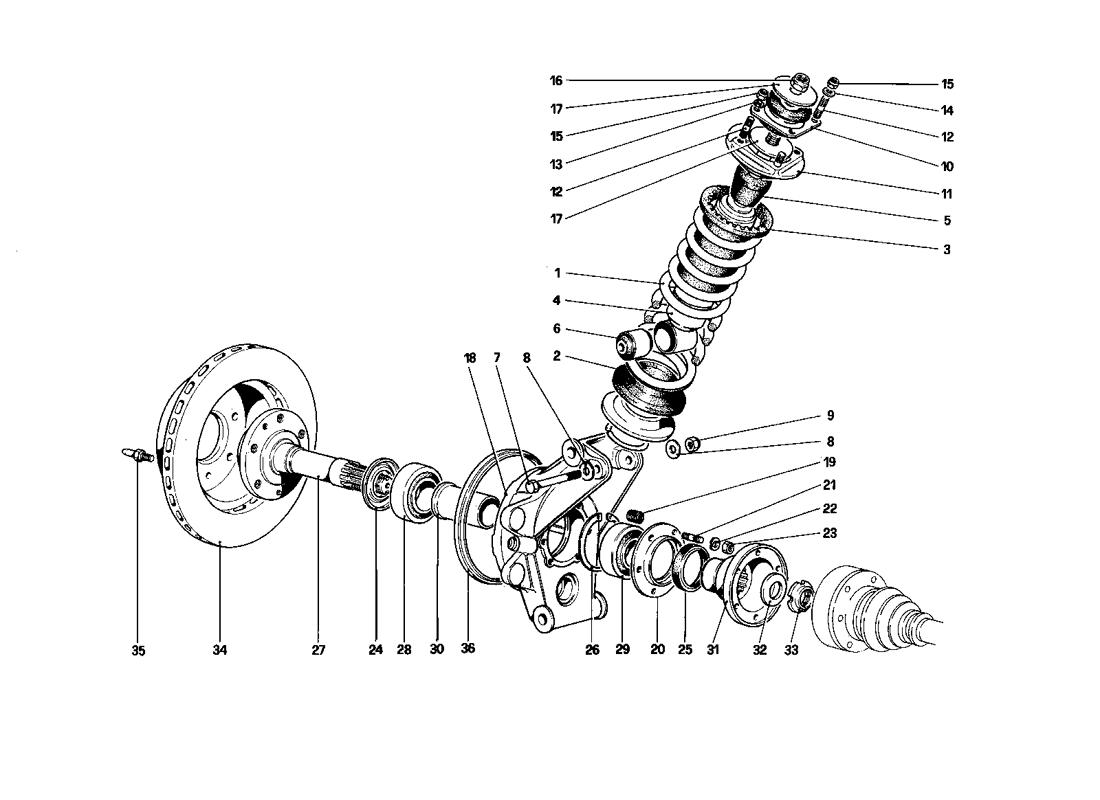

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 116410 *Qty: 2 Suspensions spring
For Cabriolet use no. 123837
$368.19
Location: 2 Prev | Next Part: 113581 *Qty: 2 Lower spacer $13.26
Location: 3 Prev | Next Part: 113582 *Qty: 2 Upper spacer $118.55
Location: 4 Prev | Next Part: 114335 *Qty: 2 Shock absorber
For Cabriolet use no. 122028
Call
Location: 5 Prev | Next Part: 116358 *Qty: 2 Pad $60.78
Location: 6 Prev | Next Part: 100809 *Qty: 2 Estenblock $20.07
Location: 7 Prev | Next Part: 112441 *Qty: 2 Bolt $113.46
Location: 8 Prev | Next Part: 106616 *Qty: 4 Washer $1.78
Location: 9 Prev | Next Part: 16105121 *Qty: 2 Nut Superseded
Location: 10 Prev | Next Part: 114812 *Qty: 2 Hynerblock $140.34
Location: 11 Prev | Next Part: 114809 *Qty: 2 Cap, spring retainer Superseded
Location: 12 Prev | Next Part: 13543521 *Qty: 8 Stud Superseded
Location: 13 Prev | Next Part: 12646721 *Qty: 6 Washer Superseded
Location: 14 Prev | Next Part: 113113 *Qty: 2 Washer $1.76
Location: 15 Prev | Next Part: 16104121 *Qty: 8 Nut Superseded
Location: 16 Prev | Next Part: 16105121 *Qty: 2 Nut Superseded
Location: 17 Prev | Next Part: 114815 *Qty: 4 Washer $1.94
Location: 18 Prev | Next Part: 112445 *Qty: 1 Hub holder, right
To chassis no. 43011
$671.23
Location: 18 Prev | Next Part: 112446 *Qty: 1 Hub holder, left
To chassis no. 43011
$638.55
Location: 18 Prev | Next Part: 117190 *Qty: 1 Hub holder, left
From chassis no. 43013
Superseded
Location: 18 Prev | Next Part: 117189 *Qty: 1 Hub holder, right
From chassis no. 43013
Superseded
Location: 19 Prev | Next Part: 13524570 *Qty: 4 Heli - coil
For hub holder no. 112445 and 112446
$3.74
Location: 20 Prev | Next Part: 119374 *Qty: 2 Flange for bearing $124.68
Location: 21 Prev | Next Part: 13543321 *Qty: 12 Stud Superseded
Location: 22 Prev | Next Part: 106852 *Qty: 12 Washer Superseded
Location: 23 Prev | Next Part: 16100821 *Qty: 12 Nut
For hub holder no. 112445 and 112446
$3.57
Location: 23 Prev | Next Part: 16100811 *Qty: 12 Nut
For hub holder no. 117189 and 117190
Superseded
Location: 24 Prev | Next Part: 108047 *Qty: 2 Centrifugal ring $73.20
Location: 25 Prev | Next Part: 115968 *Qty: 1 Sealing ring $131.59
Location: 26 Prev | Next Part: 11061575 *Qty: 1 Seeger ring Superseded
Location: 27 Prev | Next Part: 108046 *Qty: 2 Shaft with rear hub Call
Location: 28 Prev | Next Part: 101221 *Qty: 2 Outer bearing $44.12
Location: 29 Prev | Next Part: 101220 *Qty: 2 Inner bearing $43.58
Location: 30 Prev | Next Part: 106129 *Qty: 2 Spacer $246.32
Location: 31 Prev | Next Part: 119372 *Qty: 2 Flange, connecting axle shafts $209.44
Location: 32 Prev | Next Part: 105511 *Qty: 2 Washer $14.71
Location: 33 Prev | Next Part: 102289 *Qty: 2 Ring nut $40.00
Location: 34 Prev | Next Part: 117186 *Qty: 2 Brake disc
For hub holder no. 117189 and 117190
$496.57
Location: 34 Prev | Next Part: 115078 *Qty: 2 Brake disc
For hub holder no. 112445 and 112446
$278.87
Location: 35 Prev | Next Part: 104370 *Qty: 4 Centering screw $0.90
Location: 36 Prev | Next Part: 103117 *Qty: 2 Splash guard $16.96

* Quantity shown indicates the number of pieces used in the diagram.
