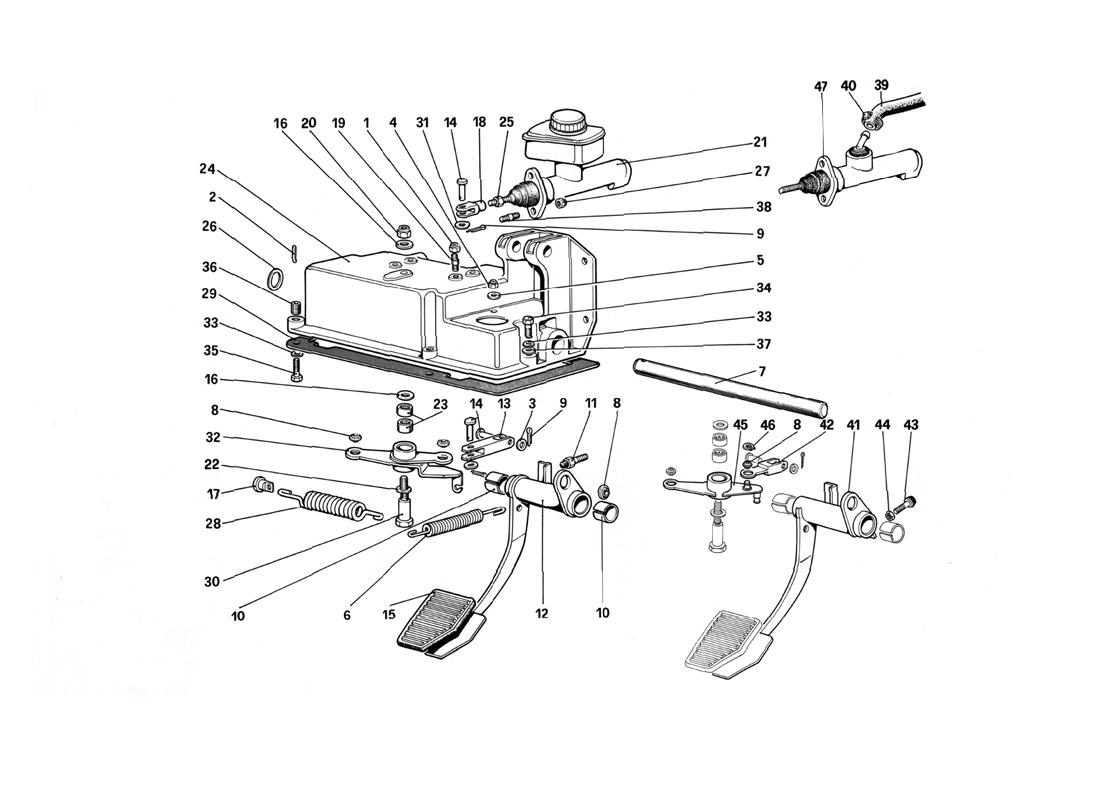

PEDAL BOARD - CLUTCH CONTROL (VARIANTS FOR RHD)

PEDAL BOARD - CLUTCH CONTROL (VARIANTS FOR RHD)

Location Part # Quantity* Description Price Add To Cart
1 12574121 4 Nut Superseded
2 13942870 1 Plug Unavailable
3 10519601 2 Washer Superseded
4 16100821 1 Nut Unavailable
5 12601371 1 Washer Superseded
6 104895 1 Return spring $32.66
7 113831 1 Pin $200.52
8 109407 3 Ball joint $66.56
9 10734201 3 Split pin Unavailable
10 103163 2 Bush $8.08
11 114825 1 Stop push rod $66.32
12 113826 1 Clutch pedal
Up to exhaustion
$376.40
13 112172 1 Fork
Only lever no. 116531
$170.89
14 10050810 3 Pin Superseded
15 106949 1 Pedal cover $33.50
16 113500 2 Washer $17.68
17 114828 1 Pin $68.63
18 10007871 1 Fork $18.90
19 11000821 4 Stud Unavailable
20 16105121 1 Selflocking nut Superseded
21 108419 1 Master cylinder
From chassis no. 48487
Superseded
22 112126 1 Shim Unavailable
23 115430 2 Roller cage $21.74
24 113830 1 Support $2,026.89
25 16102311 1 Locknut Superseded
26 113834 1 Shim, 1,2 mm.
Possible fitting
Unavailable
26 113833 1 Shim, 1,1 mm.
Possible fitting
Unavailable
26 106083 1 Shim, 1,0 mm.
Possible fitting
Unavailable
26 113836 1 Shim, 1,4 mm.
Possible fitting
Unavailable
26 113835 1 Shim, 1,3 mm.
Possible fitting
Unavailable
27 16104111 2 Nut Superseded
28 114826 1 Helper spring $78.01
29 112151 1 Gasket
On exhaustion use no. 119331
$44.36
30 114830 1 Pin for return lever $19.18
31 12642701 1 Washer $0.90
32 116531 1 Lever
Up to exhaustion
$434.66
33 106852 5 Washer Superseded
34 16136021 3 Screw $1.28
35 16043421 2 Screw Superseded
36 13525870 2 Heli - coil Unavailable
37 10519620 3 Washer Superseded
38 13543321 2 Stud Superseded
39 120929 1 Feed pipe for clutch master cylinder
From chassis no. 48487
Superseded
40 12179190 2 Clamp
From chassis no. 48487
Superseded
41 121244 1 Clutch pedal
On exhaustion no. 113826
$328.13
42 121209 1 Fork
Only for lever no. 121244
Superseded
43 123961 1 Stop push rod $4.02
44 16102311 1 Nut Superseded
45 121243 1 Lever
On exhaustion no. 116531
$221.33
46 11065676 1 Seeger ring
Only lever no. 121206
Unavailable
47 116093 1 Master cylinder
To chassis no. 48485
Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
