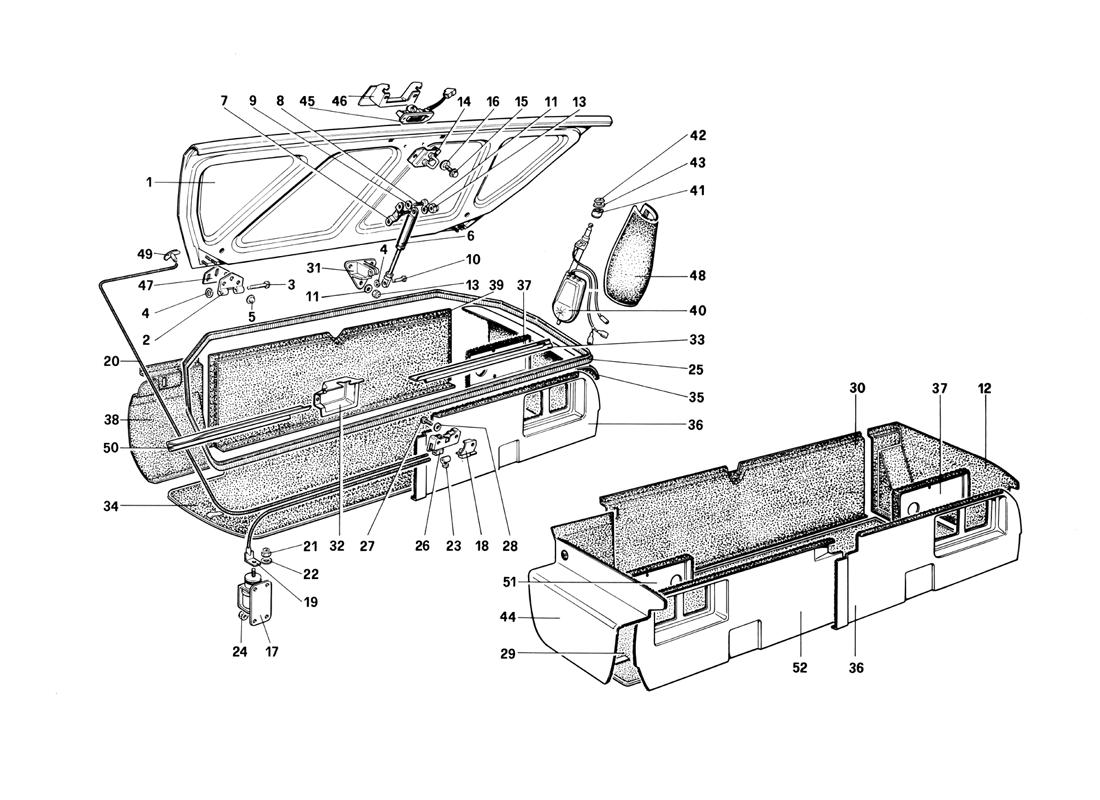

LUGGAGE COMPARTMENT LID

Go to Split View

LUGGAGE COMPARTMENT LID

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 60523500 *Qty: 2 Complete hinge for bonnet $94.58
Location: 1 Prev | Next Part: 60544200 *Qty: 1 Trunk bonnet Superseded
Location: 2 Prev | Next Part: 60523600 *Qty: 2 Hinge mobile $15.46
Location: 3 Prev | Next Part: 60523800 *Qty: 2 Pin $10.02
Location: 4 Prev | Next Part: 11087976 *Qty: 3 Seeger Superseded
Location: 5 Prev | Next Part: 13832101 *Qty: 6 Nut $0.90
Location: 6 Prev | Next Part: 60563300 *Qty: 1 Support $78.05
Location: 7 Prev | Next Part: 60700700 *Qty: 1 Support $28.53
Location: 8 Prev | Next Part: 14304220 *Qty: 2 Screw $0.90
Location: 9 Prev | Next Part: 60700900 *Qty: 2 Washer Superseded
Location: 10 Prev | Next Part: 60563200 *Qty: 1 Pin $24.59
Location: 11 Prev | Next Part: 60698400 *Qty: 4 Wahser $0.90
Location: 12 Prev | Next Part: 61435200 *Qty: 1 R.H. carpet (Cab.) $125.66
Location: 13 Prev | Next Part: 20203000 *Qty: 4 Nut Call
Location: 14 Prev | Next Part: 500100 *Qty: 1 Catch Call
Location: 15 Prev | Next Part: 13810311 *Qty: 2 Special screw Call
Location: 16 Prev | Next Part: 12643701 *Qty: 2 Washer Superseded
Location: 17 Prev | Next Part: 60530500 *Qty: 1 Electric bonnet opener Call
Location: 18 Prev | Next Part: 61164400 *Qty: 1 Warning light control - bonnet open $64.75
Location: 19 Prev | Next Part: 60670700 *Qty: 1 Cable for opening bonnet $2.39
Location: 20 Prev | Next Part: 61221200 *Qty: 1 Safety cable (Cab.) $3.39
Location: 20 Prev | Next Part: 60670800 *Qty: 1 Safety cable (4V.)
Up to 1982
Call
Location: 20 Prev | Next Part: 61203700 *Qty: 1 Safety cable (4V.)
From 1983
$3.85
Location: 21 Prev | Next Part: 15890411 *Qty: 1 Nut Call
Location: 22 Prev | Next Part: 11195471 *Qty: 1 Spring ring Superseded
Location: 23 Prev | Next Part: 60276607 *Qty: 1 Cable clamp $41.57
Location: 24 Prev | Next Part: 12574211 *Qty: 3 Nut Superseded
Location: 25 Prev | Next Part: 60545300 *Qty: 1 Gasket $63.01
Location: 26 Prev | Next Part: 60277407 *Qty: 1 Bonnet lock Call
Location: 27 Prev | Next Part: 20297503 *Qty: 2 Screw $0.90
Location: 28 Prev | Next Part: 10519501 *Qty: 2 Washer $0.90
Location: 29 Prev | Next Part: 61653400 *Qty: 1 Carpet trunk central (Cab.) $182.02
Location: 30 Prev | Next Part: 61435000 *Qty: 1 Carpet (Cab.) $167.07
Location: 31 Prev | Next Part: 60563100 *Qty: 1 Bracket for support $8.97
Location: 32 Prev | Next Part: 60678300 *Qty: 1 Lock housing $46.18
Location: 33 Prev | Next Part: 61103100 *Qty: 1 Right moulding for carpet $57.50
Location: 34 Prev | Next Part: 60725700 *Qty: 1 Carpet for trunk bottom (4V.) Call
Location: 35 Prev | Next Part: 61158400 *Qty: 1 Left carpet (4V. - T.A.) $98.70
Location: 35 Prev | Next Part: 60986600 *Qty: 1 Right carpet (4V.) $160.74
Location: 35 Prev | Next Part: 60986700 *Qty: 1 Left carpet (4V.) $128.14
Location: 36 Prev | Next Part: 61101900 *Qty: 1 Rear R.H. shield panel Call
Location: 37 Prev | Next Part: 60726100 *Qty: 1 Cover for R.H. lights $60.22
Location: 38 Prev | Next Part: 60726000 *Qty: 1 Shield panel front LH. (4V.) $78.56
Location: 38 Prev | Next Part: 61158300 *Qty: 1 Shield panel front LH. (4V. - T.A.) $127.69
Location: 38 Prev | Next Part: 60725900 *Qty: 1 Shield panel front R.H. (4V.) $78.56
Location: 39 Prev | Next Part: 60725800 *Qty: 1 Shield panel front (4V.) $217.55
Location: 40 Prev | Next Part: 60871800 *Qty: 1 Radio aerial Superseded
Location: 41 Prev | Next Part: 60623000 *Qty: 1 Lower bush for aerial $5.44
Location: 42 Prev | Next Part: 60623100 *Qty: 1 Upper bush for aerial $18.34
Location: 43 Prev | Next Part: 60623200 *Qty: 1 Seal gasket Call
Location: 44 Prev | Next Part: 61435100 *Qty: 1 Left carpet (Cab.) $191.30
Location: 45 Prev | Next Part: 60044906 *Qty: 2 Number plate light Superseded
Location: 46 Prev | Next Part: 60846500 *Qty: 2 Support for plate light Call
Location: 47 Prev | Next Part: 60732500 *Qty: 2 Zincofil Call
Location: 48 Prev | Next Part: 60874000 *Qty: 1 Aerial protection $87.12
Location: 49 Prev | Next Part: 60710900 *Qty: 1 Emergency handle Call
Location: 50 Prev | Next Part: 61103200 *Qty: 1 Left moulding for carpet $57.50
Location: 51 Prev | Next Part: 60726200 *Qty: 1 Cover for L.H. light $50.05
Location: 52 Prev | Next Part: 60678200 *Qty: 1 Rear L.H. shield panel $294.32

* Quantity shown indicates the number of pieces used in the diagram.
