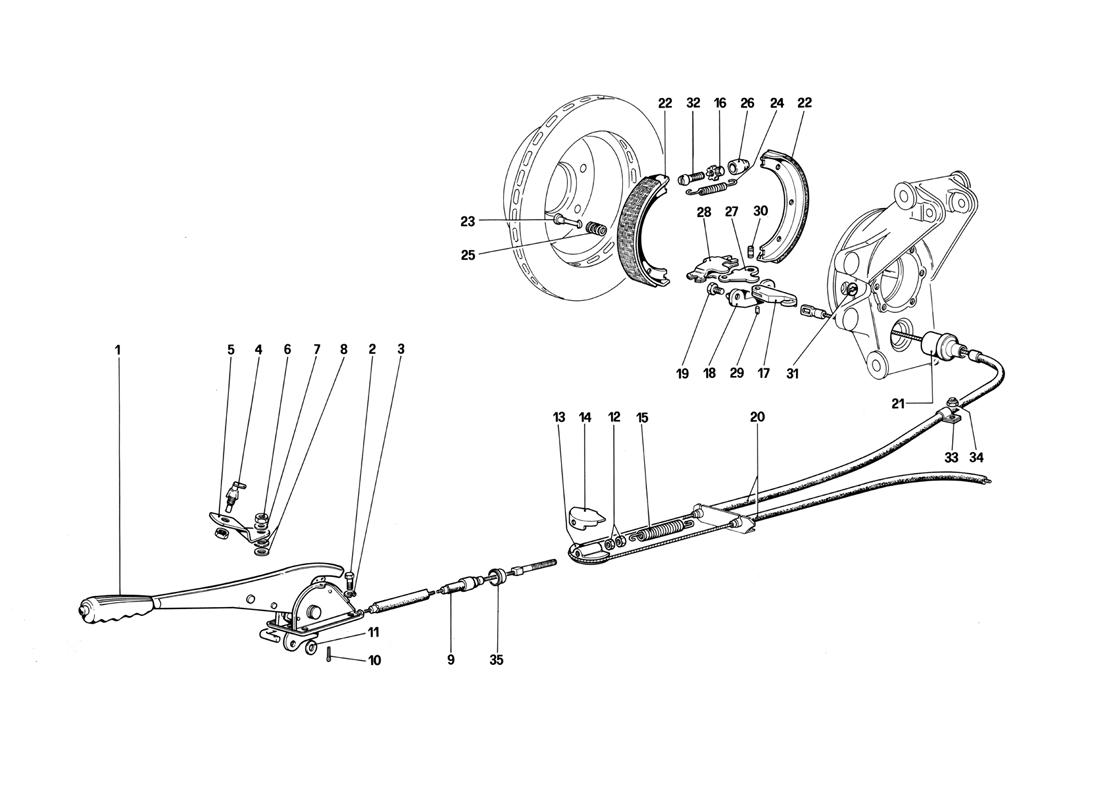

HAND - BRAKE CONTROL (VALID FOR RHD - FOR LHD FROM CHASSIS NO. 43013)

Go to Split View

HAND - BRAKE CONTROL (VALID FOR RHD - FOR LHD FROM CHASSIS NO. 43013)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 118548 *Qty: 1 Hand brake lever $349.34
Location: 2 Prev | Next Part: 10902121 *Qty: 4 Screw Superseded
Location: 3 Prev | Next Part: 106850 *Qty: 4 Washer Superseded
Location: 4 Prev | Next Part: 114318 *Qty: 1 Switch $27.96
Location: 5 Prev | Next Part: 114320 *Qty: 1 Switch bracket $3.41
Location: 6 Prev | Next Part: 15896411 *Qty: 1 Nut Superseded
Location: 7 Prev | Next Part: 12605270 *Qty: 1 Washer $0.90
Location: 8 Prev | Next Part: 10519301 *Qty: 2 Washer
Possible fitting
$0.90
Location: 9 Prev | Next Part: 118551 *Qty: 1 Front cable $46.60
Location: 10 Prev | Next Part: 10734301 *Qty: 1 Split pin $0.90
Location: 11 Prev | Next Part: 10519601 *Qty: 1 Washer Superseded
Location: 12 Prev | Next Part: 16102311 *Qty: 2 Locknut, right thread Superseded
Location: 13 Prev | Next Part: 118552 *Qty: 1 Anchorage for rear cable $4.45
Location: 14 Prev | Next Part: 118553 *Qty: 1 Plate $20.00
Location: 15 Prev | Next Part: 104895 *Qty: 1 Return spring $4.25
Location: 16 Prev | Next Part: 101286 *Qty: 2 Nut $15.73
Location: 17 Prev | Next Part: 105270 *Qty: 2 Control fork for inner lever $24.38
Location: 18 Prev | Next Part: 106243 *Qty: 2 Small block Call
Location: 19 Prev | Next Part: 106242 *Qty: 4 Screw $4.38
Location: 20 Prev | Next Part: 118550 *Qty: 1 Rear cable
For RHD use no. 119619
$85.48
Location: 21 Prev | Next Part: 105735 *Qty: 2 Fork protection cap Superseded
Location: 22 Prev | Next Part: 101270 *Qty: 4 Brake shoe Superseded
Location: 23 Prev | Next Part: 101275 *Qty: 4 Pin for spring $19.13
Location: 24 Prev | Next Part: 101276 *Qty: 4 Return spring for shoes $2.99
Location: 25 Prev | Next Part: 101277 *Qty: 4 Spring $0.90
Location: 26 Prev | Next Part: 101279 *Qty: 2 Seat for adjust screw $13.38
Location: 27 Prev | Next Part: 101280 *Qty: 2 Inner control lever $5.09
Location: 28 Prev | Next Part: 101281 *Qty: 2 Outer control lever $7.22
Location: 29 Prev | Next Part: 101282 *Qty: 2 Pin fixing fork to inner lever $8.12
Location: 30 Prev | Next Part: 101283 *Qty: 2 Pin for joint $3.82
Location: 31 Prev | Next Part: 101284 *Qty: 4 Plate for spring Call
Location: 32 Prev | Next Part: 101285 *Qty: 2 Screw $8.27
Location: 33 Prev | Next Part: 10418500 *Qty: 3 Clamp $1.74
Location: 33 Prev | Next Part: 10115700 *Qty: 1 Clamp $1.51
Location: 34 Prev | Next Part: 12575411 *Qty: 4 Nut Superseded
Location: 35 Prev | Next Part: 118554 *Qty: 2 Bush
RHD only
$12.97

* Quantity shown indicates the number of pieces used in the diagram.
