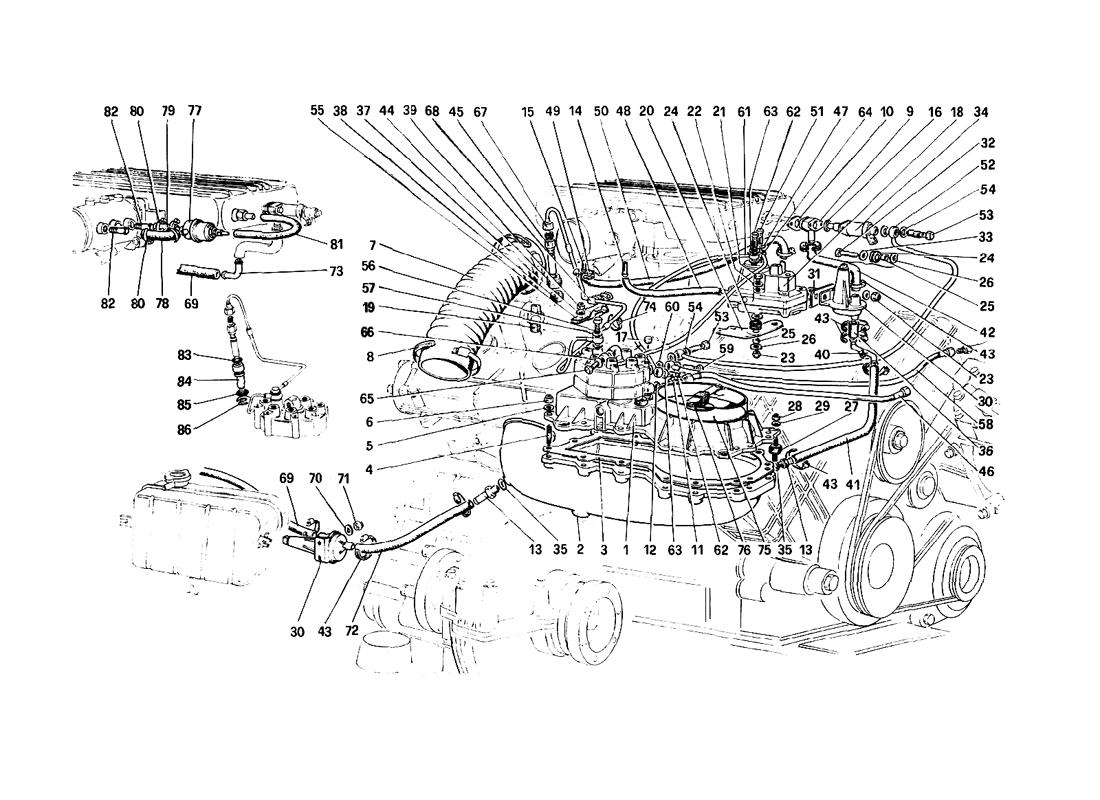

FUEL INJECTION SYSTEM - FUEL DISTRIBUTORS, LINE

Go to Split View

FUEL INJECTION SYSTEM - FUEL DISTRIBUTORS, LINE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 115329 *Qty: 1 Metering device Superseded
Location: 2 Prev | Next Part: 115219 *Qty: 1 Support for metering device
With assembly no. 118070
Call
Location: 2 Prev | Next Part: 120261 *Qty: 1 Support for metering device
With assembly no. 120361
Call
Location: 2 Prev | Next Part: 120361 *Qty: 1 Support for metering device, complete
From engine no. 517
$353.70
Location: 2 Prev | Next Part: 118070 *Qty: 1 Support for metering device, complete
To engine no. 516
$424.91
Location: 3 Prev | Next Part: 115011 *Qty: 1 Gasket Superseded
Location: 4 Prev | Next Part: 13541121 *Qty: 15 Stud Superseded
Location: 5 Prev | Next Part: 12601271 *Qty: 15 Washer Superseded
Location: 6 Prev | Next Part: 12574211 *Qty: 15 Nut Superseded
Location: 7 Prev | Next Part: 118309 *Qty: 1 Pipe from support - throttle valve body $325.69
Location: 8 Prev | Next Part: 12174990 *Qty: 2 Union $1.17
Location: 9 Prev | Next Part: 115004 *Qty: 1 Union Call
Location: 10 Prev | Next Part: 115005 *Qty: 1 Gasket Superseded
Location: 11 Prev | Next Part: 115498 *Qty: 1 Union with filter $54.30
Location: 12 Prev | Next Part: 11270160 *Qty: 1 Gasket $2.08
Location: 13 Prev | Next Part: 116860 *Qty: 1 Theraded union $26.39
Location: 14 Prev | Next Part: 113637 *Qty: 1 Threaded union $3.15
Location: 15 Prev | Next Part: 113652 *Qty: 1 Threaded union Call
Location: 16 Prev | Next Part: 103039 *Qty: 1 Sealing ring $1.18
Location: 17 Prev | Next Part: 115650 *Qty: 1 Inviolability cap Superseded
Location: 18 Prev | Next Part: 119825 *Qty: 1 Warm - up regulator
From engine no. 728 and for CH
$2,488.20
Location: 18 Prev | Next Part: 118585 *Qty: 1 Warm - up regulator
To engine no. 728 - CH excluded
Superseded
Location: 19 Prev | Next Part: 113980 *Qty: 1 Time thermal switch
For CH use no. 118790
$746.03
Location: 20 Prev | Next Part: 118291 *Qty: 1 Support $12.38
Location: 21 Prev | Next Part: 10903821 *Qty: 2 Screw $0.90
Location: 22 Prev | Next Part: 12604271 *Qty: 2 Washer Call
Location: 23 Prev | Next Part: 12574211 *Qty: 2 Nut Superseded
Location: 24 Prev | Next Part: 103549 *Qty: 2 Grommet $0.90
Location: 25 Prev | Next Part: 103550 *Qty: 2 Spacer $2.55
Location: 26 Prev | Next Part: 12643701 *Qty: 2 Washer Superseded
Location: 27 Prev | Next Part: 102947 *Qty: 3 Vibration - damping support $18.79
Location: 28 Prev | Next Part: 12575411 *Qty: 3 Nut Superseded
Location: 29 Prev | Next Part: 12601271 *Qty: 3 Washer Superseded
Location: 29 Prev | Next Part: 12640601 *Qty: 1 Washer Superseded
Location: 30 Prev | Next Part: 113974 *Qty: 1 Additional air valve
For CH use no. 120222
Call
Location: 31 Prev | Next Part: 118292 *Qty: 1 Support
To engine no. 516
$12.38
Location: 32 Prev | Next Part: 10902621 *Qty: 1 Screw
To engine no. 516
Superseded
Location: 33 Prev | Next Part: 12601271 *Qty: 2 Washer
To engine no. 516
Superseded
Location: 34 Prev | Next Part: 115739 *Qty: 1 Auxiliary starting assembly $362.74
Location: 35 Prev | Next Part: 10280060 *Qty: 1 Gasket $0.90
Location: 36 Prev | Next Part: 115407 *Qty: 1 Pipe
To engine no. 516
$7.01
Location: 37 Prev | Next Part: 11197771 *Qty: 1 Washer Superseded
Location: 38 Prev | Next Part: 114661 *Qty: 8 Grommet $16.87
Location: 39 Prev | Next Part: 12575411 *Qty: 1 Nut Superseded
Location: 40 Prev | Next Part: 116307 *Qty: 1 Pipe
To engine no. 516
$75.19
Location: 41 Prev | Next Part: 116306 *Qty: 1 Pipe
To engine no. 516
Call
Location: 42 Prev | Next Part: 115226 *Qty: 1 Pipe $35.78
Location: 43 Prev | Next Part: 12179590 *Qty: 6 Clamp Superseded
Location: 44 Prev | Next Part: 114660 *Qty: 8 Bush $80.03
Location: 45 Prev | Next Part: 113975 *Qty: 8 Injector $86.26
Location: 46 Prev | Next Part: 118401 *Qty: 1 Pipe from fuel tan Call
Location: 47 Prev | Next Part: 10260160 *Qty: 2 Gasket $1.15
Location: 48 Prev | Next Part: 115002 *Qty: 1 Pipe $4.54
Location: 49 Prev | Next Part: 12179190 *Qty: 2 Clamp Superseded
Location: 50 Prev | Next Part: 118293 *Qty: 1 Pipe Call
Location: 51 Prev | Next Part: 113670 *Qty: 1 Pipe union $80.32
Location: 52 Prev | Next Part: 118410 *Qty: 1 Pipe $24.98
Location: 53 Prev | Next Part: 113664 *Qty: 2 Pipe union $17.52
Location: 54 Prev | Next Part: 14330260 *Qty: 4 Washer $0.90
Location: 55 Prev | Next Part: 115417 *Qty: 1 Bracket for clamp Call
Location: 56 Prev | Next Part: 113670 *Qty: 8 Pipe union $80.32
Location: 57 Prev | Next Part: 10260160 *Qty: 16 Gasket $1.15
Location: 58 Prev | Next Part: 118393 *Qty: 1 Return pipe Call
Location: 59 Prev | Next Part: 111644 *Qty: 1 Pipe union Call
Location: 60 Prev | Next Part: 113910 *Qty: 2 Gasket Superseded
Location: 61 Prev | Next Part: 118395 *Qty: 1 Return pipe from regulator $121.64
Location: 62 Prev | Next Part: 113664 *Qty: 2 Pipe union $17.52
Location: 63 Prev | Next Part: 14330260 *Qty: 4 Gasket $0.90
Location: 64 Prev | Next Part: 118397 *Qty: 1 Delivery pipe to regulator $116.98
Location: 65 Prev | Next Part: 113664 *Qty: 1 Pipe union $17.52
Location: 66 Prev | Next Part: 14330260 *Qty: 2 Gasket $0.90
Location: 67 Prev | Next Part: 118572 *Qty: 1 Pipe from metering device to cylinder 6 $87.31
Location: 67 Prev | Next Part: 118569 *Qty: 1 Pipe from metering device to cylinder 3 Call
Location: 67 Prev | Next Part: 118570 *Qty: 1 Pipe from metering device to cylinder 4 Call
Location: 67 Prev | Next Part: 118571 *Qty: 1 Pipe from metering device to cylinder 5 $87.31
Location: 67 Prev | Next Part: 118573 *Qty: 1 Pipe from metering device to cylinder 7 $133.83
Location: 67 Prev | Next Part: 118568 *Qty: 1 Pipe from metering device to cylinder 2 Call
Location: 67 Prev | Next Part: 118567 *Qty: 1 Pipe from metering device to cylinder 1 Call
Location: 67 Prev | Next Part: 118574 *Qty: 1 Pipe from metering device to cylinder 8 $133.83
Location: 68 Prev | Next Part: 117279 *Qty: 2 Support clamp Superseded
Location: 68 Prev | Next Part: 115418 *Qty: 1 Support clamp (3 pipes) Call
Location: 68 Prev | Next Part: 115595 *Qty: 1 Support clamp (4 pipes) Call
Location: 68 Prev | Next Part: 113896 *Qty: 1 Support clamp (3 pipes) $5.12
Location: 69 Prev | Next Part: 120801 *Qty: 1 Pipe
From engine no. 517
$54.30
Location: 70 Prev | Next Part: 12601271 *Qty: 2 Washer
From engine no. 517
Superseded
Location: 71 Prev | Next Part: 12574211 *Qty: 2 Nut
From engine no. 517
Superseded
Location: 72 Prev | Next Part: 117548 *Qty: 1 Pipe
From engine no. 517
$167.16
Location: 73 Prev | Next Part: 120188 *Qty: 1 Union 90?
From engine no. 517
$21.67
Location: 73 Prev | Next Part: 120188 *Qty: 1 Union 90?
From engine no. 517
$21.67
Location: 74 Prev | Next Part: 111193 *Qty: 2 Clamp Superseded
Location: 74 Prev | Next Part: 110381 *Qty: 2 Clamp $0.90
Location: 74 Prev | Next Part: 124442 *Qty: 1 Clamp
For Cabriolet
$29.88
Location: 75 Prev | Next Part: 120812 *Qty: 1 Air sensor plate Superseded
Location: 76 Prev | Next Part: 120809 *Qty: 1 Washer
For CH version only
$36.42
Location: 77 Prev | Next Part: 117646 *Qty: 1 Valve for by-pass $143.58
Location: 78 Prev | Next Part: 115230 *Qty: 1 Pipe $21.49
Location: 79 Prev | Next Part: 115227 *Qty: 1 Pipe $30.29
Location: 80 Prev | Next Part: 12179590 *Qty: 4 Washer Superseded
Location: 81 Prev | Next Part: 115149 *Qty: 1 Pipe $41.16
Location: 82 Prev | Next Part: 112030 *Qty: 2 Union
Only for intake manifolds no. 123203 - 123204
$9.26
Location: 83 Prev | Next Part: 113570 *Qty: 8 Sealing ring $4.73
Location: 84 Prev | Next Part: 113309 *Qty: 8 Bush Call
Location: 85 Prev | Next Part: 101031 *Qty: 8 Sealing ring $4.77
Location: 86 Prev | Next Part: 101326 *Qty: 8 Seeger ring Call

* Quantity shown indicates the number of pieces used in the diagram.
