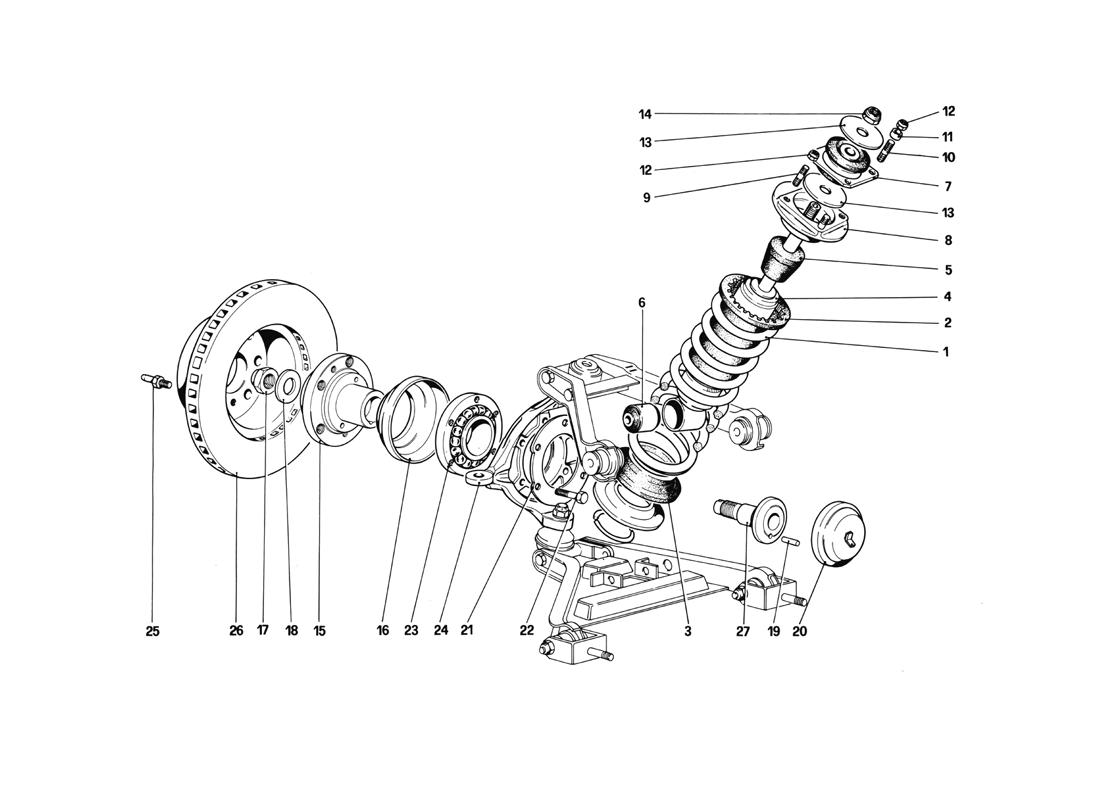

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 118124 *Qty: 2 Suspension spring
For Cabriolet use no. 122026
$463.63
Location: 2 Prev | Next Part: 113582 *Qty: 2 Upper spacer $114.98
Location: 3 Prev | Next Part: 113581 *Qty: 2 Lower spacer $12.85
Location: 4 Prev | Next Part: 114727 *Qty: 2 Shock absorber Call
Location: 5 Prev | Next Part: 116358 *Qty: 2 Pad $58.95
Location: 6 Prev | Next Part: 100809 *Qty: 2 Estenblock $19.46
Location: 7 Prev | Next Part: 114812 *Qty: 2 Hyperblock $136.09
Location: 8 Prev | Next Part: 114809 *Qty: 2 Cup, spring retainer Superseded
Location: 9 Prev | Next Part: 13543321 *Qty: 4 Stud Superseded
Location: 10 Prev | Next Part: 13543821 *Qty: 4 Stud Call
Location: 11 Prev | Next Part: 13606011 *Qty: 4 Spacer $4.04
Location: 12 Prev | Next Part: 16104121 *Qty: 8 Nut Superseded
Location: 13 Prev | Next Part: 114815 *Qty: 4 Washer $1.88
Location: 14 Prev | Next Part: 16105121 *Qty: 2 Nut Superseded
Location: 15 Prev | Next Part: 124463 *Qty: 2 Front wheel hub $922.83
Location: 16 Prev | Next Part: 112823 *Qty: 2 Bearing cover $66.56
Location: 17 Prev | Next Part: 124642 *Qty: 2 Nut $29.90
Location: 18 Prev | Next Part: 124464 *Qty: 2 Washer $29.53
Location: 19 Prev | Next Part: 13909870 *Qty: 2 Pin $0.90
Location: 20 Prev | Next Part: 117171 *Qty: 2 Bearing cover $26.94
Location: 21 Prev | Next Part: 118522 *Qty: 2 Washer $10.37
Location: 22 Prev | Next Part: 14238731 *Qty: 12 Bolt $0.90
Location: 23 Prev | Next Part: 112799 *Qty: 2 Bearing Call
Location: 24 Prev | Next Part: 117187 *Qty: 1 Stub axle, right $794.65
Location: 24 Prev | Next Part: 117188 *Qty: 1 Stub axle, left $704.74
Location: 25 Prev | Next Part: 104370 *Qty: 4 Cemering screw $0.90
Location: 26 Prev | Next Part: 117185 *Qty: 2 Brake disc $415.42
Location: 27 Prev | Next Part: 124465 *Qty: 2 Stay bolt for bearing $286.94

* Quantity shown indicates the number of pieces used in the diagram.
