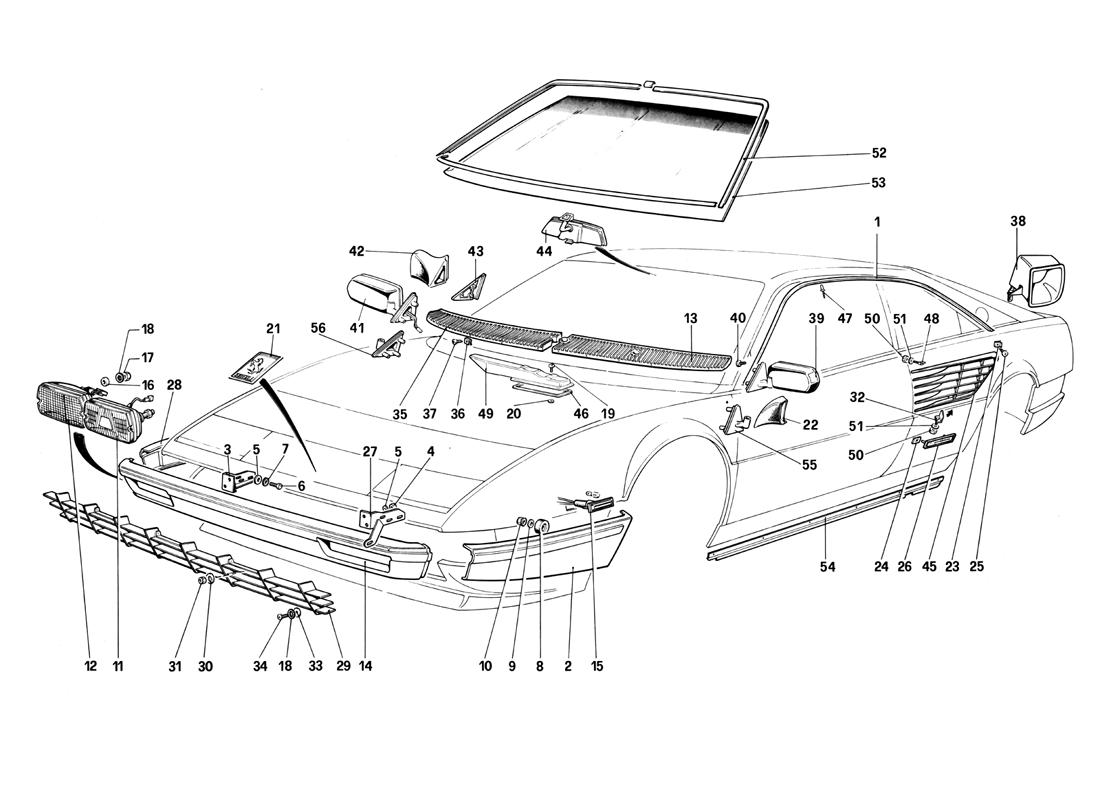

BUMPERS, LIGHTS AND FRONT GLASSES

Go to Split View

BUMPERS, LIGHTS AND FRONT GLASSES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61238800 *Qty: 1 L.H. moulding (Cab.) $63.85
Location: 1 Prev | Next Part: 61238700 *Qty: 1 R.H. moulding (Cab.) $63.85
Location: 1 Prev | Next Part: 60967400 *Qty: 1 L.H. moulding (4V.) $143.63
Location: 1 Prev | Next Part: 60967300 *Qty: 1 R.H. moulding (4V.) $143.63
Location: 2 Prev | Next Part: 60573200 *Qty: 1 Front L.H. bumper $193.35
Location: 3 Prev | Next Part: 60572400 *Qty: 1 R.H. bracket fixing front bumper $275.08
Location: 4 Prev | Next Part: 16104111 *Qty: 4 Selfiocking nut Superseded
Location: 5 Prev | Next Part: 12646701 *Qty: 10 Washer Superseded
Location: 6 Prev | Next Part: 16043211 *Qty: 6 Screw $0.90
Location: 7 Prev | Next Part: 10615671 *Qty: 6 Washer $0.90
Location: 8 Prev | Next Part: 60573500 *Qty: 4 Spacer $11.32
Location: 9 Prev | Next Part: 12640601 *Qty: 4 Washer Superseded
Location: 10 Prev | Next Part: 12575411 *Qty: 4 Nut (D excluded) Superseded
Location: 10 Prev | Next Part: 13832101 *Qty: 4 Nut (D only) $0.90
Location: 11 Prev | Next Part: 60609400 *Qty: 2 Fog light, withe lens ()
D - For RHD from 1.3.83
Call
Location: 11 Prev | Next Part: 61005700 *Qty: 2 Daylight flashing ()
F
$157.34
Location: 11 Prev | Next Part: 60907600 *Qty: 2 Daylight flashing ()
F and D excluded - For RHD to 28.2.83
Call
Location: 12 Prev | Next Part: 60870800 *Qty: 1 Front L.H. parking - direction light $521.86
Location: 12 Prev | Next Part: 60870700 *Qty: 1 Front R.H. parking - direction light $521.86
Location: 13 Prev | Next Part: 60587600 *Qty: 1 L.H. grill under windshield (LHD) $161.19
Location: 13 Prev | Next Part: 60587800 *Qty: 1 L.H. grill under windshield (RHD) $139.46
Location: 14 Prev | Next Part: 60571000 *Qty: 1 Front center bumper Call
Location: 15 Prev | Next Part: 60669900 *Qty: 2 Side repeater light $88.42
Location: 16 Prev | Next Part: 60700300 *Qty: 4 Spacer $1.67
Location: 17 Prev | Next Part: 15895411 *Qty: 4 Nut Call
Location: 18 Prev | Next Part: 10615371 *Qty: 8 Washer $0.90
Location: 19 Prev | Next Part: 20286209 *Qty: 2 Screw Call
Location: 20 Prev | Next Part: 60674600 *Qty: 2 Gasket $1.46
Location: 21 Prev | Next Part: 60795400 *Qty: 1 Front ornament $233.14
Location: 22 Prev | Next Part: 61182400 *Qty: 1 Gasket for L.H. mirror (RHD) $35.17
Location: 22 Prev | Next Part: 61080500 *Qty: 1 Gasket for L.H. mirror (LHD) $39.74
Location: 23 Prev | Next Part: 60644500 *Qty: 2 Clip $0.90
Location: 24 Prev | Next Part: 60324506 *Qty: 4 Clip Superseded
Location: 25 Prev | Next Part: 15903378 *Qty: 2 Screw $1.55
Location: 26 Prev | Next Part: 20043105 *Qty: 2 Pininfarina ornament $109.34
Location: 27 Prev | Next Part: 60837600 *Qty: 1 t.H. bracket front bumper
D only
$120.45
Location: 27 Prev | Next Part: 60680600 *Qty: 1 L.H. bracket front bumper
D excluded
Superseded
Location: 28 Prev | Next Part: 60573100 *Qty: 1 R.H. front bumper $193.35
Location: 29 Prev | Next Part: 60652300 *Qty: 1 Radiator grill $1,421.92
Location: 30 Prev | Next Part: 12843701 *Qty: 2 Washer Call
Location: 31 Prev | Next Part: 14084211 *Qty: 2 Selfiocking nut $0.90
Location: 32 Prev | Next Part: 60904800 *Qty: 1 Bracket fixing L.H. grill $14.92
Location: 32 Prev | Next Part: 60904700 *Qty: 1 Bracket fixing R.H. grill $15.61
Location: 33 Prev | Next Part: 12638101 *Qty: 4 Washer Superseded
Location: 34 Prev | Next Part: 13274111 *Qty: 4 Screw $0.90
Location: 35 Prev | Next Part: 60587500 *Qty: 1 R.H. grill under windshield (LHD) $161.19
Location: 35 Prev | Next Part: 60587700 *Qty: 1 R.H. grill under windshield (RHD) $139.46
Location: 36 Prev | Next Part: 60597000 *Qty: 2 Clip $0.90
Location: 36 Prev | Next Part: 61325200 *Qty: 14 Clip Call
Location: 37 Prev | Next Part: 15687278 *Qty: 16 Screw $1.04
Location: 38 Prev | Next Part: 61225900 *Qty: 1 Air conveyor oil radiator (Cab.) Superseded
Location: 38 Prev | Next Part: 61084000 *Qty: 1 Air conveyor oil radiator (4V.) $312.43
Location: 39 Prev | Next Part: 60749400 *Qty: 1 L.H. mirror to 30.6.83 4V.-RHD) $436.93
Location: 39 Prev | Next Part: 61182300 *Qty: 1 L.H. mirror from 1 .7.83 4V.-RHD $285.24
Location: 39 Prev | Next Part: 61461100 *Qty: 1 L.H. mirror (RHD - Cab.) $296.31
Location: 39 Prev | Next Part: 60723700 *Qty: 1 L.H. mirror to 30.6.83 (LHD) Superseded
Location: 39 Prev | Next Part: 61090000 *Qty: 1 L.H. mirrot from 1.7.83 (LHD) $831.73
Location: 40 Prev | Next Part: 61182700 *Qty: 6 Screw -
From 1.7.83
$12.74
Location: 40 Prev | Next Part: 60777500 *Qty: 6 Screw -
To 30.6.83
$5.68
Location: 41 Prev | Next Part: 61182500 *Qty: 1 R.H. mirror (4V.-KHD)
From 1.7.83
$374.40
Location: 41 Prev | Next Part: 60748900 *Qty: 1 R.H. mirror (4V.- LHD)
To 30.6.83
Superseded
Location: 41 Prev | Next Part: 61181100 *Qty: 1 R.H. mirror (4V. -LHD)
From 1.7.83
$806.52
Location: 41 Prev | Next Part: 60749200 *Qty: 1 R.H. mirror(4V. -RHD)
To 30.6.83
Call
Location: 41 Prev | Next Part: 61460900 *Qty: 1 R.H. mirror (LHD - Cab.) $356.07
Location: 41 Prev | Next Part: 61182500 *Qty: 1 R.H. mirror (RHD - Cab.) $374.40
Location: 41 Prev | Next Part: 61367700 *Qty: 1 R.H. mirror (D only)
From 1.7.83
$248.77
Location: 41 Prev | Next Part: 61255900 *Qty: 1 R.H. mirror (D only)
To 30.6.83
Superseded
Location: 42 Prev | Next Part: 61181200 *Qty: 1 Gasket for R.H. mirror (LHD) $28.05
Location: 42 Prev | Next Part: 61182600 *Qty: 1 Gasket for R.H. mirror (RHD) $31.41
Location: 43 Prev | Next Part: 60654100 *Qty: 1 Moulding seat R.H. mirror (LHD) $25.82
Location: 44 Prev | Next Part: 60715300 *Qty: 1 Interior mirror Call
Location: 45 Prev | Next Part: 60250100 *Qty: 1 L.H. grill (Cab.) Call
Location: 45 Prev | Next Part: 61250000 *Qty: 1 R.H. grill (Cab.) Superseded
Location: 45 Prev | Next Part: 60671200 *Qty: 1 R.H. grill (4V.) Superseded
Location: 45 Prev | Next Part: 60671300 *Qty: 1 L.H. grill (4V.) Superseded
Location: 46 Prev | Next Part: 61088600 *Qty: 1 Gasket $10.37
Location: 47 Prev | Next Part: 60310703 *Qty: 16 Rivet (4V.) $0.90
Location: 48 Prev | Next Part: 60904900 *Qty: 2 Plate $8.17
Location: 49 Prev | Next Part: 61088500 *Qty: 1 Protection for air conditioner (LHD) $53.99
Location: 49 Prev | Next Part: 61109900 *Qty: 1 Protection for air conditioner (RHD) $162.84
Location: 50 Prev | Next Part: 10794011 *Qty: 4 Nut $0.90
Location: 51 Prev | Next Part: 10615271 *Qty: 4 Washer $0.90
Location: 52 Prev | Next Part: 60998800 *Qty: 1 Complete moulding for windshield $3,068.04
Location: 53 Prev | Next Part: 60637700 *Qty: 1 Windshield glass Superseded
Location: 53 Prev | Next Part: 60999600 *Qty: 1 Windshield glass
Tropic only
$1,094.62
Location: 54 Prev | Next Part: 61682200 *Qty: 1 Moulding R.H. (Cab.) Call
Location: 54 Prev | Next Part: 61682300 *Qty: 1 Moulding L.H. (Cab.) $199.61
Location: 55 Prev | Next Part: 61089900 *Qty: 1 Support mirror, L.H. Call
Location: 56 Prev | Next Part: 61181000 *Qty: 1 Support mirror, R.H. $5.78

* Quantity shown indicates the number of pieces used in the diagram.
