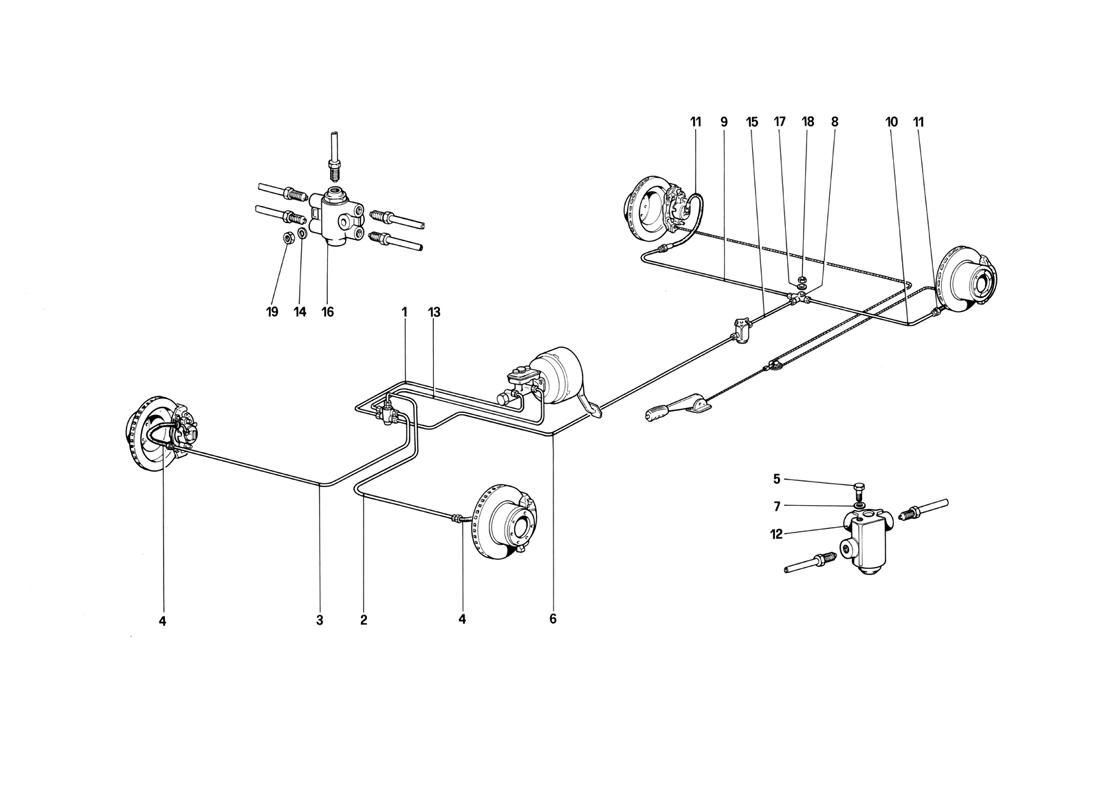

BRAKE SYSTEM (VALID FOR RHD - FOR LHD FROM CHASSIS NO. 43013)

Go to Split View

BRAKE SYSTEM (VALID FOR RHD - FOR LHD FROM CHASSIS NO. 43013)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 104470 *Qty: 1 Pipe from brake booster to indicator of rear circuit
For RHD use no. 116397
$12.94
Location: 2 Prev | Next Part: 106670 *Qty: 1 Pipe from indicator to left front hose
For RHD use no. 101407
$13.80
Location: 3 Prev | Next Part: 116397 *Qty: 1 Pipe from indicator to right front hose
For RHD use no. 101407
$10.18
Location: 4 Prev | Next Part: 118101 *Qty: 2 Front circuit hose $130.19
Location: 5 Prev | Next Part: 16043021 *Qty: 1 Fixing screw for vacuum pump $0.90
Location: 6 Prev | Next Part: 117331 *Qty: 1 Pipe from valve to vacuum pump
For RHD use no. 101408
$38.93
Location: 7 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 8 Prev | Next Part: 101394 *Qty: 1 3-way union Call
Location: 9 Prev | Next Part: 106969 *Qty: 1 Pipe from 3-way union to right hose
For RHD use no. 104470
$19.92
Location: 10 Prev | Next Part: 105851 *Qty: 1 Pipe from 3-way union to left hose $10.20
Location: 11 Prev | Next Part: 118100 *Qty: 2 Rear hose Superseded
Location: 12 Prev | Next Part: 118103 *Qty: 1 Breaking action regulator for rear brakes $123.17
Location: 13 Prev | Next Part: 101407 *Qty: 1 Pipe from brake booster to indicator
For RHD use no. 105855
Call
Location: 14 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 15 Prev | Next Part: 101407 *Qty: 1 Pipe from vacuum pump to 3-way Call
Location: 16 Prev | Next Part: 108803 *Qty: 1 Brake failure indicator Superseded
Location: 17 Prev | Next Part: 12639701 *Qty: 1 Washer Call
Location: 18 Prev | Next Part: 12574211 *Qty: 1 Nut Superseded
Location: 19 Prev | Next Part: 15896211 *Qty: 1 Nut Superseded

* Quantity shown indicates the number of pieces used in the diagram.
