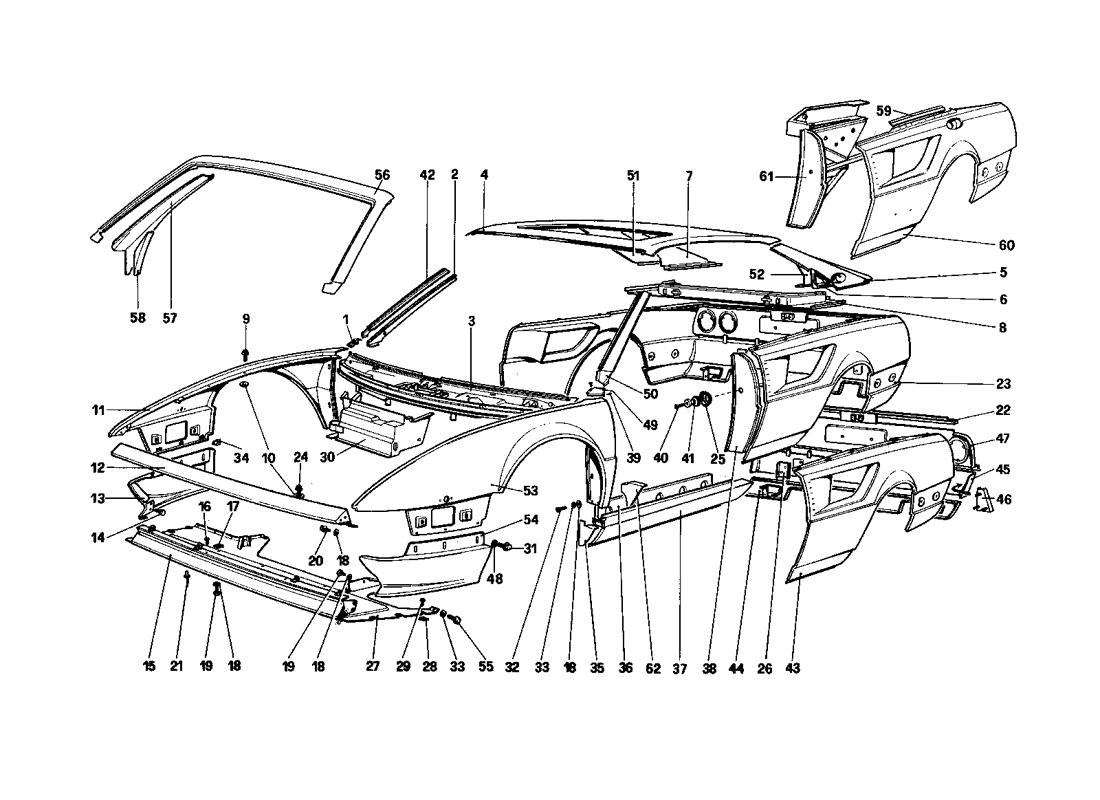

BODY SHELL - OUTER ELEMENTS

Go to Split View

BODY SHELL - OUTER ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 60542900 *Qty: 1 Frame work, L.H. underdoor $347.87
Location: - Prev | Next Part: 60542800 *Qty: 1 Frame work, R.H. underdoor $347.87
Location: 1 Prev | Next Part: 60738900 *Qty: 1 Right moulding $74.09
Location: 2 Prev | Next Part: 60921400 *Qty: 1 Inner L.H. pillar (4V.) $34.86
Location: 2 Prev | Next Part: 60921500 *Qty: 1 Inner R.H. pillar (4V.) $34.86
Location: 2 Prev | Next Part: 60921900 *Qty: 1 Inner L.H. pillar (T.A.) $32.60
Location: 2 Prev | Next Part: 60922000 *Qty: 1 Inner R.H. pillar (T.A.) $41.68
Location: 3 Prev | Next Part: 60513200 *Qty: 1 Roof complete (4V.) Call
Location: 3 Prev | Next Part: 61088400 *Qty: 1 Under - windshield (LHD) $1,090.30
Location: 3 Prev | Next Part: 61145900 *Qty: 1 Under - windshield (T.A. - LHD) $1,111.31
Location: 3 Prev | Next Part: 61178400 *Qty: 1 Under - windshield (T.A. - RHD) Call
Location: 3 Prev | Next Part: 61121900 *Qty: 1 Under - windshield (RHD) $1,483.69
Location: 3 Prev | Next Part: 60913900 *Qty: 1 Roof complete (T.A.) $2,339.37
Location: 4 Prev | Next Part: 60913800 *Qty: 1 Roof (T.A.) $1,191.57
Location: 4 Prev | Next Part: 60545400 *Qty: 1 Roof (4V.) $2,054.84
Location: 5 Prev | Next Part: 60722300 *Qty: 1 Outside for L.H. fins (4V.) $122.11
Location: 6 Prev | Next Part: 60663100 *Qty: 1 Housing for left aerator (4V.) $41.79
Location: 6 Prev | Next Part: 60663000 *Qty: 1 Housing for right aerator (4V.) $41.79
Location: 7 Prev | Next Part: 60759400 *Qty: 1 Inner for right fins (4V.) $23.65
Location: 8 Prev | Next Part: 60780800 *Qty: 1 Rear window plane (4V.) $615.18
Location: 9 Prev | Next Part: 13835971 *Qty: 10 Screw Superseded
Location: 10 Prev | Next Part: 12639701 *Qty: 17 Washer Call
Location: 11 Prev | Next Part: 60511800 *Qty: 1 Front right fender $1,568.91
Location: 12 Prev | Next Part: 60970900 *Qty: 1 Front covering Superseded
Location: 13 Prev | Next Part: 60566000 *Qty: 1 Front right covering $367.72
Location: 14 Prev | Next Part: 13833171 *Qty: 4 Screw $0.90
Location: 15 Prev | Next Part: 60601300 *Qty: 1 Spoyler Call
Location: 16 Prev | Next Part: 60697100 *Qty: 2 Screw $1.51
Location: 17 Prev | Next Part: 60646900 *Qty: 7 Clip $0.90
Location: 18 Prev | Next Part: 12638101 *Qty: 23 Washer Superseded
Location: 19 Prev | Next Part: 15643901 *Qty: 7 Screw (4V.) $0.90
Location: 19 Prev | Next Part: 15643901 *Qty: 9 Screw (Cab.) $0.90
Location: 20 Prev | Next Part: 13833271 *Qty: 4 Screw $0.90
Location: 21 Prev | Next Part: 60565400 *Qty: 26 Rivet $0.90
Location: 22 Prev | Next Part: 61102500 *Qty: 1 Strut for plate housing $298.83
Location: 23 Prev | Next Part: 61006800 *Qty: 1 Rear covering complete (4V.) Call
Location: 23 Prev | Next Part: 61371300 *Qty: 1 Rear covering complete (Cab.) Call
Location: 24 Prev | Next Part: 15925601 *Qty: 7 Self threading screw $0.90
Location: 25 Prev | Next Part: 60775900 *Qty: 2 Washer $1.20
Location: 26 Prev | Next Part: 60603300 *Qty: 1 L.H. reiforcement $15.40
Location: 26 Prev | Next Part: 60603200 *Qty: 1 R.H. reiforcement $15.40
Location: 27 Prev | Next Part: 60602500 *Qty: 1 Front underbody $190.05
Location: 28 Prev | Next Part: 60646800 *Qty: 6 Clip $0.90
Location: 29 Prev | Next Part: 15872501 *Qty: 6 Screw (4V.) Call
Location: 29 Prev | Next Part: 15916901 *Qty: 6 Screw (Cab.) $0.90
Location: 30 Prev | Next Part: 61221500 *Qty: 1 Protection for air conditioner (RHD) $1,638.95
Location: 30 Prev | Next Part: 61087100 *Qty: 1 Protection for air conditioner (LHD) $223.19
Location: 31 Prev | Next Part: 14287611 *Qty: 6 Screw $0.90
Location: 32 Prev | Next Part: 13274011 *Qty: 8 Screw $0.90
Location: 33 Prev | Next Part: 10615371 *Qty: 10 Tab washer $0.90
Location: 34 Prev | Next Part: 14647490 *Qty: 6 Nut $0.90
Location: 35 Prev | Next Part: 60543100 *Qty: 1 Front right cover rail $10.51
Location: 35 Prev | Next Part: 60543200 *Qty: 1 Front left cover rail $13.55
Location: 36 Prev | Next Part: 60543000 *Qty: 2 Rail inner stiffening $34.15
Location: 37 Prev | Next Part: 60512400 *Qty: 1 Covering for left underdoor $855.68
Location: 37 Prev | Next Part: 60512300 *Qty: 1 Covering for right underdoor $821.80
Location: 38 Prev | Next Part: 61352000 *Qty: 1 L.H. pillar for rear fender (4V.) $85.22
Location: 38 Prev | Next Part: 61351900 *Qty: 1 R.H. pillar for rear fender (4V.) $85.22
Location: 38 Prev | Next Part: 60726500 *Qty: 1 L.H. pillar for rear fender (4V.) $80.54
Location: 38 Prev | Next Part: 60726400 *Qty: 1 R.H. pillar for rear fender (4V.) $69.58
Location: 39 Prev | Next Part: 60659300 *Qty: 6 Self threading screw $1.25
Location: 40 Prev | Next Part: 60673700 *Qty: 2 Screw Call
Location: 41 Prev | Next Part: 60670100 *Qty: 2 Pin for lock stricker Call
Location: 42 Prev | Next Part: 60583800 *Qty: 1 Right pillar for windshield (4V.) $28.91
Location: 43 Prev | Next Part: 60512500 *Qty: 1 Rear right fender (4V.) $2,482.95
Location: 43 Prev | Next Part: 60512600 *Qty: 1 Rear left fender (4V.) $2,482.95
Location: 44 Prev | Next Part: 61034600 *Qty: 1 Rear underbody $255.64
Location: 45 Prev | Next Part: 60780500 *Qty: 1 Covering for rear bumper seat Call
Location: 46 Prev | Next Part: 60721700 *Qty: 1 Bracket for electromagnet $120.67
Location: 47 Prev | Next Part: 60890800 *Qty: 1 Covering for plate housing $1,866.34
Location: 48 Prev | Next Part: 12640601 *Qty: 4 Washer Superseded
Location: 49 Prev | Next Part: 60739000 *Qty: 1 Left moulding $183.86
Location: 50 Prev | Next Part: 60583900 *Qty: 1 Left pillar for windshield (4V.) $28.91
Location: 51 Prev | Next Part: 60512700 *Qty: 1 Outside for right fins (4V.) $32.58
Location: 52 Prev | Next Part: 60759500 *Qty: 1 inner for left fins (4V.) $79.14
Location: 53 Prev | Next Part: 60511900 *Qty: 1 Front left fender $1,568.91
Location: 54 Prev | Next Part: 60601000 *Qty: 1 Front left covering $296.50
Location: 55 Prev | Next Part: 15687901 *Qty: 2 Screw Superseded
Location: 56 Prev | Next Part: 61213600 *Qty: 1 Framework windshield (Cab.) $2,264.07
Location: 57 Prev | Next Part: 61214000 *Qty: 1 R.H. windshield pillar covering (Cab.) $76.18
Location: 57 Prev | Next Part: 61214100 *Qty: 1 L.H. windshield pillar covering (Cab.) $76.18
Location: 58 Prev | Next Part: 61214300 *Qty: 1 R.H. pillar reinforcement (Cab.) $18.21
Location: 58 Prev | Next Part: 61214400 *Qty: 1 L.H. pillar reinforcement (Cab.) $20.30
Location: 59 Prev | Next Part: 61251500 *Qty: 1 R.H. insert for top fastening (Cab.) $19.81
Location: 59 Prev | Next Part: 61251600 *Qty: 1 L.H. insert for top fastening (Cab.) $19.81
Location: 60 Prev | Next Part: 61435700 *Qty: 1 Rear right fender (Cab.) $3,241.73
Location: 60 Prev | Next Part: 61435800 *Qty: 1 Rear left fender (Cab.) $2,681.39
Location: 61 Prev | Next Part: 61205900 *Qty: 1 Right mounting for top (Cab.) $375.62
Location: 61 Prev | Next Part: 61206000 *Qty: 1 Left mounting for top (Cab.) $375.62
Location: 62 Prev | Next Part: 60888600 *Qty: 1 Right covering of rail (4V.) $12.25
Location: 62 Prev | Next Part: 60888700 *Qty: 1 Left covering of rail (4V.) $12.60

* Quantity shown indicates the number of pieces used in the diagram.
