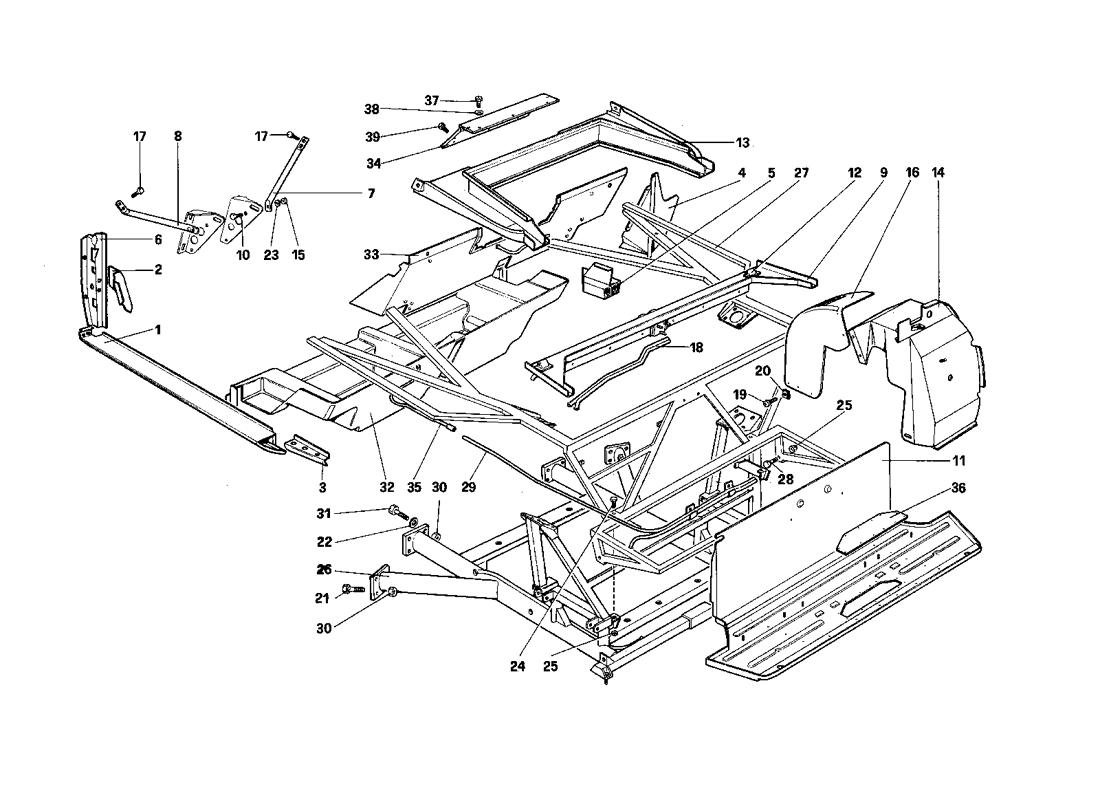

BODY SHELL - INNER ELEMENTS - CABRIOLET

BODY SHELL - INNER ELEMENTS - CABRIOLET

Location Part # Quantity* Description Price Add To Cart
- 61696200 1 Left door seat Unavailable
- 61214800 1 Right door seat $795.44
1 61436200 1 Framework, left underdoor $369.34
1 61436100 1 Framework, right underdoor $299.73
2 119435 1 Footrest $158.54
3 116014 1 Support for left rear body side $9.14
3 116013 1 Support for right rear body side $9.14
4 61641400 1 Right shieldpanel $102.29
4 61641600 1 Left shieldpanel $152.86
5 61292800 1 Right wood stopper $58.85
5 61292900 1 Left wood stopper $58.85
6 61645400 1 Right seat for door hinge Unavailable
6 60645500 1 Left seat for door hinge $104.57
7 122014 1 Right tie rod (LHD) $62.52
7 123418 1 Right tie rod (RHD) $79.29
8 123419 1 Left tie rod (RHD) $85.85
8 122015 1 Left tie rod (LHD) $64.43
9 61205700 1 Gasket support $353.10
10 10902221 2 Screw Unavailable
11 61465500 1 Bottom plate for trunk $374.74
12 60523700 2 Fixed hinge for rear bonnet $53.06
13 61206400 1 Seat for top $1,691.72
14 61436300 1 Wheelhouse rear right $428.98
14 61436400 1 Wheelhouse rear left $408.54
15 12574211 2 Nut Superseded
16 61265600 1 Front section of rear R.H. wheelhouse
CH only
$247.84
16 61668200 1 Front section of rear L.H. wheelhouse
CH only
$231.85
16 61158700 1 Front section of rear L.H. wheelhouse
CH excluded
$497.17
16 61158600 1 Front section of rear R.H. wheelhouse
CH excluded
$497.17
17 15924806 4 Screw Unavailable
18 61307200 1 Cable for engine bonnet $104.97
19 15903802 18 Screw Unavailable
20 60517200 18 Clip $3.76
21 15540621 8 Screw Superseded
22 12646921 8 Washer $0.90
23 12639701 2 Washer Unavailable
24 11255921 2 Screw Unavailable
25 12575811 4 Nut $2.76
26 61221100 1 Cable duct for trunk bonnet $101.48
26 124353 1 Removable frame (RHD) $5,690.98
26 124350 1 Removable frame (LHD) $8,084.01
27 124351 1 Rear frame (LHD) $2,508.02
27 124354 1 Rear frame (RHD) $2,754.14
28 15977501 2 Screw Unavailable
30 16105011 16 Selflocking nut Superseded
31 15540521 8 Screw Unavailable
32 61223200 1 Housing for rear seats Superseded
33 61327100 1 Shieldpanel between passenger $438.93
34 61242300 1 Cover $326.75
35 61344700 1 Front cable duct for trunk bonnet $47.34
36 60810000 1 Cover $53.08
37 13277011 5 Screw Unavailable
38 12643701 5 Washer Superseded
39 13277111 5 Screw Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
