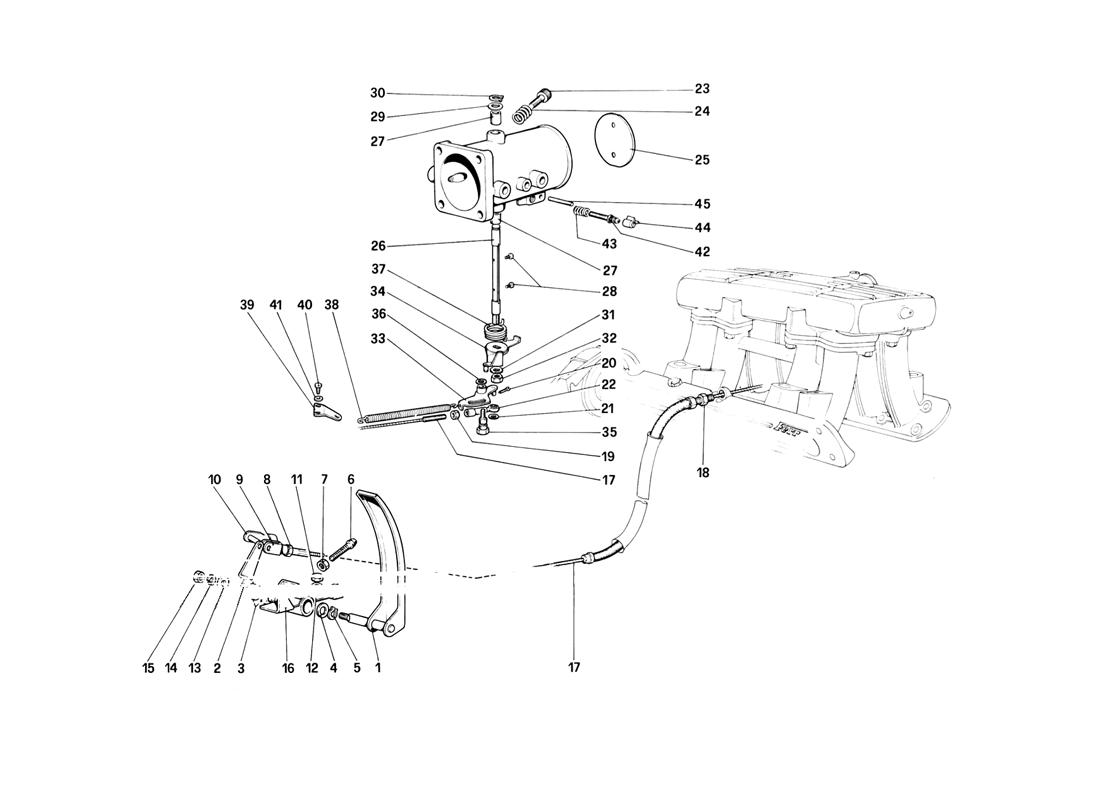

THROTTLE HOUSING AND LINKAGE

Go to Split View

THROTTLE HOUSING AND LINKAGE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 115393 *Qty: 1 Pedale acceleratore $354.60
Location: 2 Prev | Next Part: 115399 *Qty: 1 Leva $16.81
Location: 3 Prev | Next Part: 101677 *Qty: 2 Astuccio a rullini $2.74
Location: 4 Prev | Next Part: 108576 *Qty: 1 Rondella di rasamento $1.78
Location: 5 Prev | Next Part: 11066075 *Qty: 1 Anello seeger $0.90
Location: 6 Prev | Next Part: 105232 *Qty: 1 Registro $5.09
Location: 7 Prev | Next Part: 16102311 *Qty: 1 Dado Superseded
Location: 8 Prev | Next Part: 10725911 *Qty: 1 Controdado Superseded
Location: 9 Prev | Next Part: 100655 *Qty: 1 Forcellino $145.18
Location: 10 Prev | Next Part: 100656 *Qty: 1 Perno con molletta $2.80
Location: 11 Prev | Next Part: 16100811 *Qty: 2 Dado Superseded
Location: 12 Prev | Next Part: 106852 *Qty: 2 Rondella Superseded
Location: 13 Prev | Next Part: 10519601 *Qty: 1 Distanziale Superseded
Location: 14 Prev | Next Part: 106852 *Qty: 1 Rondella Superseded
Location: 15 Prev | Next Part: 16100811 *Qty: 1 Dado Superseded
Location: 16 Prev | Next Part: 115396 *Qty: 1 Supporto pedale acceleratore $55.88
Location: 17 Prev | Next Part: 116521 *Qty: 1 Cavo comando acceleratore $95.25
Location: 18 Prev | Next Part: 16100821 *Qty: 1 Dado $3.57
Location: 19 Prev | Next Part: 15896411 *Qty: 1 Dado Superseded
Location: 20 Prev | Next Part: 10794601 *Qty: 1 Copiglia $0.90
Location: 21 Prev | Next Part: 10519301 *Qty: 1 Rondella $0.90
Location: 22 Prev | Next Part: 111530 *Qty: 1 Snodo sferico $36.58
Location: 23 Prev | Next Part: 113556 *Qty: 1 Vite regolazione aria $16.35
Location: 24 Prev | Next Part: 113571 *Qty: 1 Molla Call
Location: 25 Prev | Next Part: 114851 *Qty: 1 Farfalla $33.38
Location: 26 Prev | Next Part: 114852 *Qty: 1 Alberfno per farfalla $65.85
Location: 27 Prev | Next Part: 107443 *Qty: 2 Bussola $10.74
Location: 28 Prev | Next Part: 115361 *Qty: 2 Vite $0.90
Location: 29 Prev | Next Part: 13550401 *Qty: 1 Rondella $0.90
Location: 30 Prev | Next Part: 11065975 *Qty: 1 Anello seeger Superseded
Location: 31 Prev | Next Part: 113566 *Qty: 1 Rosetta di fermo $2.63
Location: 32 Prev | Next Part: 16102321 *Qty: 1 Dado $0.90
Location: 33 Prev | Next Part: 114853 *Qty: 1 Leva rinvio comando farfalla $209.19
Location: 34 Prev | Next Part: 115590 *Qty: 1 Leva comando registro farfalla $62.80
Location: 35 Prev | Next Part: 114863 *Qty: 1 Perno leva rinvio $22.65
Location: 36 Prev | Next Part: 114986 *Qty: 1 Rondella distanziale $0.90
Location: 37 Prev | Next Part: 115573 *Qty: 1 Molla di torsione $27.01
Location: 38 Prev | Next Part: 102951 *Qty: 1 Molla di assistenza $82.30
Location: 39 Prev | Next Part: 115594 *Qty: 1 Piastrina attacco molla $4.66
Location: 40 Prev | Next Part: 10977721 *Qty: 2 Vite Superseded
Location: 41 Prev | Next Part: 10571471 *Qty: 2 Rondella $0.90
Location: 42 Prev | Next Part: 114366 *Qty: 1 Vite registro leva comando farfalla $3.21
Location: 43 Prev | Next Part: 107824 *Qty: 1 Molla $1.23
Location: 44 Prev | Next Part: 111182 *Qty: 1 Cappuccio inviolabilita $9.64
Location: 45 Prev | Next Part: 114367 *Qty: 1 Perno per cappuccio $0.90

* Quantity shown indicates the number of pieces used in the diagram.
