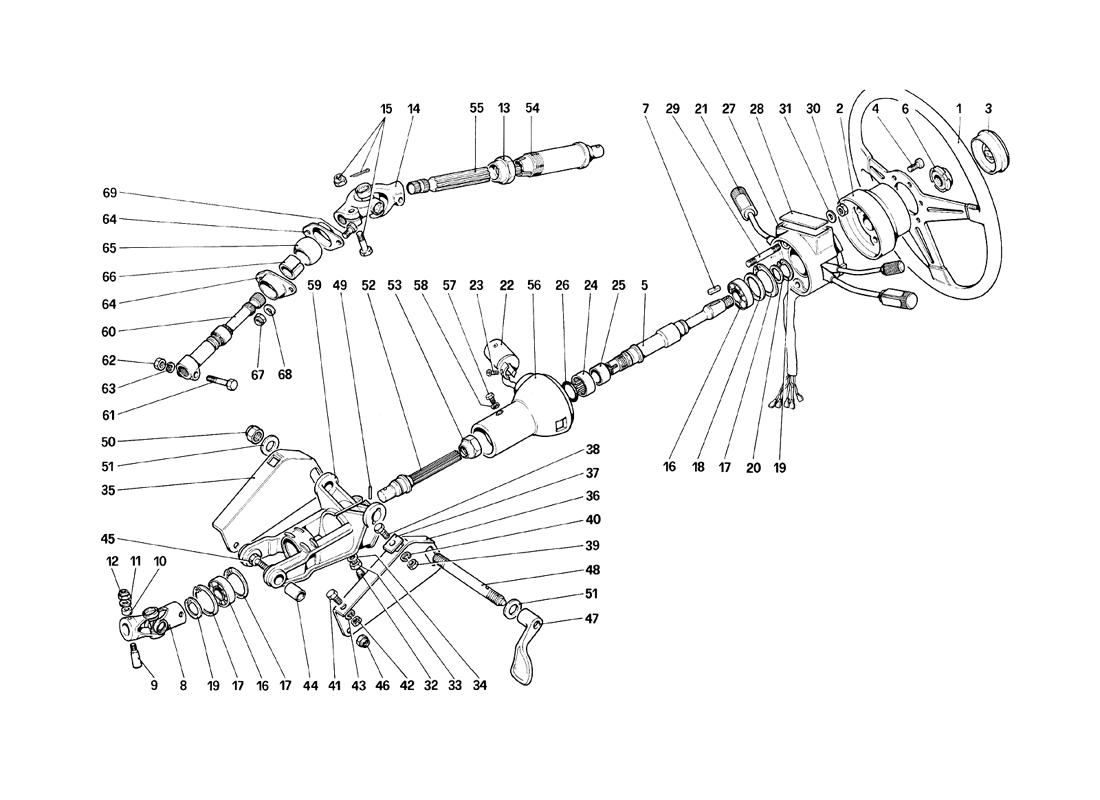

STEERING COLUMN

Go to Split View

STEERING COLUMN

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 116084 *Qty: 1 Volante guida $412.80
Location: 2 Prev | Next Part: 116085 *Qty: 1 Mozzo porta volante $182.80
Location: 3 Prev | Next Part: 116086 *Qty: 1 Contenitore e clacson Call
Location: 4 Prev | Next Part: 116310 *Qty: 6 Vite $1.14
Location: 5 Prev | Next Part: 116533 *Qty: 1 Albero superiore comando sterzo $737.77
Location: 6 Prev | Next Part: 106610 *Qty: 1 Ghiera $99.77
Location: 7 Prev | Next Part: 101106 *Qty: 1 Chiavetta $0.90
Location: 8 Prev | Next Part: 112572 *Qty: 1 Giunto cardanico superiore $480.28
Location: 9 Prev | Next Part: 112573 *Qty: 1 Spina conica $41.68
Location: 10 Prev | Next Part: 108417 *Qty: 2 Distanziale $1.17
Location: 11 Prev | Next Part: 112571 *Qty: 2 Rondella $7.49
Location: 12 Prev | Next Part: 12574221 *Qty: 2 Dado autobloccante Superseded
Location: 13 Prev | Next Part: 106870 *Qty: 1 Dado registro $13.48
Location: 14 Prev | Next Part: 103343 *Qty: 1 Giunto cardanico infenore
In alternativa n. 108362
Call
Location: 15 Prev | Next Part: 105032 *Qty: 1 Assieme parti di fissaggio giunto
Serve per giunto n. 103343
$13.48
Location: 16 Prev | Next Part: 112091 *Qty: 2 Cuscinetto $43.43
Location: 17 Prev | Next Part: 11060276 *Qty: 3 Anello seeger $0.90
Location: 18 Prev | Next Part: 112092 *Qty: 1 Rondella di rasamento spess. mm. 0,2
Di eventuale montaggio
$0.90
Location: 18 Prev | Next Part: 112094 *Qty: 1 Idem spess. mm. 0,4
Di eventuale montaggio
$0.90
Location: 18 Prev | Next Part: 112093 *Qty: 1 Idem spess. mm. 0,3
Di eventuale montaggio
$0.90
Location: 18 Prev | Next Part: 112095 *Qty: 1 Idem spess. mm. 0,5
Di eventuale montaggio
$0.90
Location: 19 Prev | Next Part: 11067376 *Qty: 2 Anello seeger $2.28
Location: 20 Prev | Next Part: 112101 *Qty: 1 Idem spess. mm. 0,5
Di eventuale montaggio
$0.90
Location: 20 Prev | Next Part: 112100 *Qty: 1 Idem spess. mm. 0,4
Di eventuale montaggio
$0.90
Location: 20 Prev | Next Part: 112099 *Qty: 1 Idem spess. mm. 0,3
Di eventuale montaggio
$0.90
Location: 20 Prev | Next Part: 112098 *Qty: 1 Rondella di rasamento spess. mm. 0,2 $0.90
Location: 21 Prev | Next Part: 116335 *Qty: 1 Deviosgancio Call
Location: 22 Prev | Next Part: 115975 *Qty: 1 Assieme antifurto Call
Location: 23 Prev | Next Part: 106615 *Qty: 1 Vite Superseded
Location: 24 Prev | Next Part: 116096 *Qty: 1 Astuccio a rullini $6.54
Location: 25 Prev | Next Part: 116097 *Qty: 1 Pista per astuccio a rullini $21.94
Location: 26 Prev | Next Part: 13398276 *Qty: 1 Anello elastico $0.90
Location: 27 Prev | Next Part: 114057 *Qty: 1 Cannotto porta commutatori
Per GD vale n. 116263
$140.08
Location: 28 Prev | Next Part: 116149 *Qty: 1 Piastrina identificazione vettura
Per GD vale n. 116264
$61.40
Location: 29 Prev | Next Part: 13539921 *Qty: 2 THREADED STUD $1.46
Location: 30 Prev | Next Part: 15896411 *Qty: 2 Dado Superseded
Location: 31 Prev | Next Part: 12601171 *Qty: 2 Rondella Superseded
Location: 32 Prev | Next Part: 13748910 *Qty: 1 Vite senza testa $0.93
Location: 33 Prev | Next Part: 16102311 *Qty: 1 Dado Superseded
Location: 34 Prev | Next Part: 12601371 *Qty: 1 Rondella Superseded
Location: 35 Prev | Next Part: 112104 *Qty: 1 Staffa destra fissaggio supporto $35.02
Location: 36 Prev | Next Part: 112105 *Qty: 1 Staffa sinistra fissagglo supporto $35.02
Location: 37 Prev | Next Part: 106425 *Qty: 1 Piastrina $17.52
Location: 38 Prev | Next Part: 10902121 *Qty: 2 Bullone Superseded
Location: 39 Prev | Next Part: 15896211 *Qty: 2 Dado Superseded
Location: 40 Prev | Next Part: 106850 *Qty: 2 Rondella Superseded
Location: 41 Prev | Next Part: 16043221 *Qty: 2 Bullone $0.90
Location: 42 Prev | Next Part: 16100811 *Qty: 2 Dado Superseded
Location: 43 Prev | Next Part: 106852 *Qty: 2 Rondella Superseded
Location: 44 Prev | Next Part: 112106 *Qty: 2 Boccola $16.12
Location: 45 Prev | Next Part: 16043821 *Qty: 2 Vite Superseded
Location: 46 Prev | Next Part: 16104411 *Qty: 2 Dado $0.90
Location: 47 Prev | Next Part: 112107 *Qty: 1 Leva $85.67
Location: 48 Prev | Next Part: 112108 *Qty: 1 Alberino $17.97
Location: 49 Prev | Next Part: 10333610 *Qty: 1 Spina $0.90
Location: 50 Prev | Next Part: 16105111 *Qty: 1 Dado Superseded
Location: 51 Prev | Next Part: 114865 *Qty: 2 Rondella di rasamento $2.12
Location: 52 Prev | Next Part: 116480 *Qty: 1 Albero inferiore comando sterzo $531.15
Location: 53 Prev | Next Part: 116481 *Qty: 1 Dado registro $27.55
Location: 54 Prev | Next Part: 116484 *Qty: 1 Tubo guida $456.15
Location: 55 Prev | Next Part: 116487 *Qty: 1 Albero inferiore scatola guida $167.40
Location: 56 Prev | Next Part: 116488 *Qty: 1 Mozzo per albero superiore $559.15
Location: 57 Prev | Next Part: 10977521 *Qty: 1 Vite $0.90
Location: 58 Prev | Next Part: 10615379 *Qty: 1 Rondella $0.90
Location: 59 Prev | Next Part: 112102 *Qty: 1 Supporto $323.36
Location: 60 Prev | Next Part: 112110 *Qty: 1 Estensione del pignone scatola guida completo $99.46
Location: 61 Prev | Next Part: 103371 *Qty: 1 Bullone Superseded
Location: 62 Prev | Next Part: 103373 *Qty: 1 Dado $1.06
Location: 63 Prev | Next Part: 103372 *Qty: 1 Rondellla Superseded
Location: 64 Prev | Next Part: 103292 *Qty: 2 Flangia per articolazione sferica $12.79
Location: 65 Prev | Next Part: 103297 *Qty: 1 Sfera per articolazione $47.98
Location: 66 Prev | Next Part: 103370 *Qty: 1 Boccola sulla sfera Call
Location: 67 Prev | Next Part: 12574211 *Qty: 2 Dado Superseded
Location: 68 Prev | Next Part: 10519421 *Qty: 2 Rondella Superseded
Location: 69 Prev | Next Part: 10902421 *Qty: 2 Bullone Superseded

* Quantity shown indicates the number of pieces used in the diagram.
