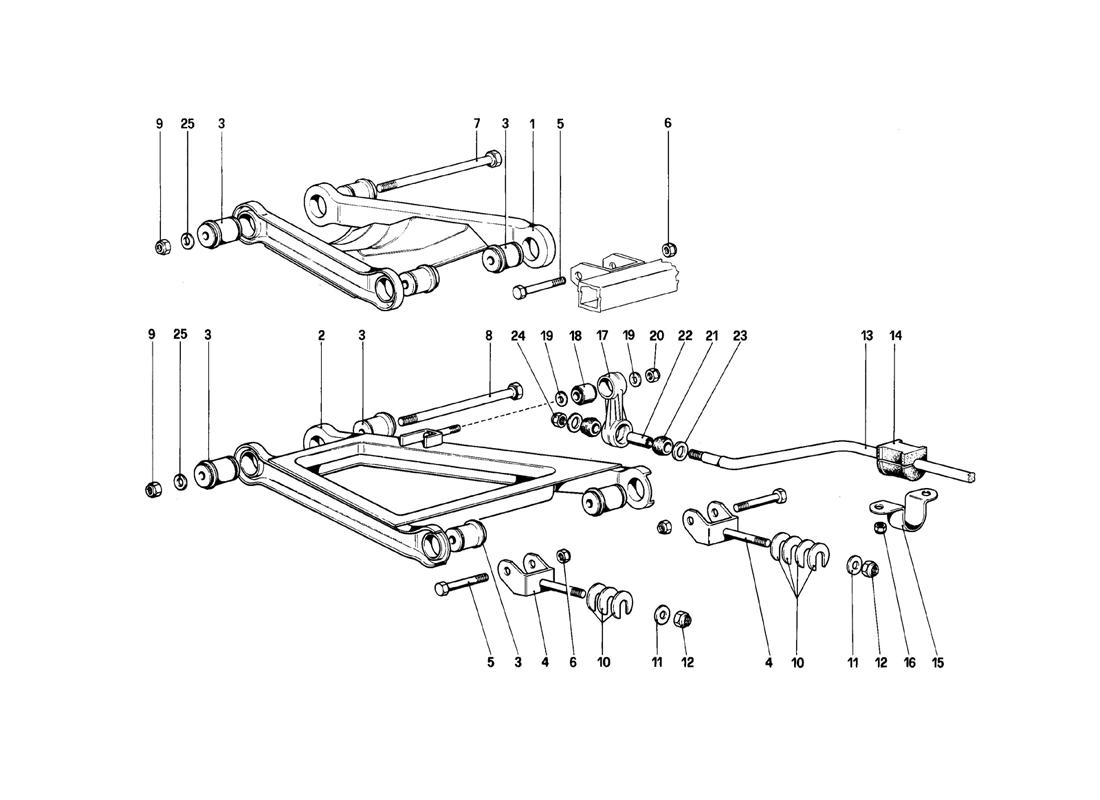

REAR SUSPENSION - WISHBONES

Go to Split View

REAR SUSPENSION - WISHBONES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 115716 *Qty: 1 Leva superiore Dx. $270.56
Location: 1 Prev | Next Part: 115715 *Qty: 1 Leva superiore Sx. $270.56
Location: 2 Prev | Next Part: 115721 *Qty: 1 Leva inferiore Dx. $419.07
Location: 2 Prev | Next Part: 115722 *Qty: 1 Leva inferiore Sx. $419.07
Location: 3 Prev | Next Part: 111616 *Qty: 16 Flamblok per attacco leve Superseded
Location: 4 Prev | Next Part: 112437 *Qty: 4 Forcella inferiore $86.37
Location: 5 Prev | Next Part: 106419 *Qty: 8 Bullone $23.46
Location: 6 Prev | Next Part: 16105121 *Qty: 8 Dado Superseded
Location: 7 Prev | Next Part: 112439 *Qty: 2 Bullone $26.73
Location: 8 Prev | Next Part: 112440 *Qty: 2 Bullone $27.17
Location: 9 Prev | Next Part: 16105121 *Qty: 4 Dado Superseded
Location: 10 Prev | Next Part: 107341 *Qty: 8 Idem spessore mm. 3 $2.00
Location: 10 Prev | Next Part: 101039 *Qty: 8 Idem spessore mm. 1 $2.00
Location: 10 Prev | Next Part: 107339 *Qty: 8 Idem spessore mm. 2 $2.00
Location: 10 Prev | Next Part: 107342 *Qty: 8 Idem spessore mm. 3,25 $1.18
Location: 10 Prev | Next Part: 107340 *Qty: 8 Rondella di rasamento per forcella inferiore mm. 2,5
Di eventuale montaggio
$2.00
Location: 10 Prev | Next Part: 107338 *Qty: 8 Idem spessore mm. 1,5 $2.00
Location: 11 Prev | Next Part: 101041 *Qty: 4 Rondella $0.90
Location: 12 Prev | Next Part: 12575821 *Qty: 4 Dado Superseded
Location: 13 Prev | Next Part: 116075 *Qty: 1 Barra stabilizzatrice $1,110.47
Location: 14 Prev | Next Part: 116381 *Qty: 2 Tampone tenuta barra $130.24
Location: 15 Prev | Next Part: 104417 *Qty: 2 Cavailotto tenuta barra $26.52
Location: 16 Prev | Next Part: 12575621 *Qty: 4 Dado Superseded
Location: 17 Prev | Next Part: 108432 *Qty: 2 Biscottino per barra $325.19
Location: 18 Prev | Next Part: 100773 *Qty: 2 Silentblok per biscottino $34.12
Location: 19 Prev | Next Part: 108913 *Qty: 4 Rondella di rasamento Call
Location: 20 Prev | Next Part: 16105121 *Qty: 2 Dado Superseded
Location: 21 Prev | Next Part: 107335 *Qty: 4 Gommino $23.13
Location: 22 Prev | Next Part: 108294 *Qty: 2 Tubo distanziale $110.99
Location: 23 Prev | Next Part: 107409 *Qty: 2 Rondella $2.99
Location: 24 Prev | Next Part: 16104421 *Qty: 2 Dado Superseded
Location: 25 Prev | Next Part: 106616 *Qty: 4 Rondella $1.72

* Quantity shown indicates the number of pieces used in the diagram.
